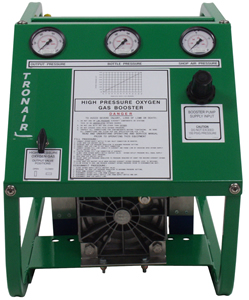

Tronair 20-4500-7000 Aircraft Oxygen Booster (O2) (CE)

Tronair 20-4500-7000
Manufacturer: Tronair
Part Number: 20-4500-7000
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
With and without calibration certificate available
Booster, Nitrogen - Max Output Rating 4000 PSI
4 Bottle with Oxygen Booster / Regulator
Nitrogen Booster - 500 to 4500 PSI
Towable 4 Bottle Cart with Booster and High/Low Pressure Regulators

The Tronair 20-4500-7000 pneumatic oxygen booster provides the capability of boosting remaining lower pressure oxygen from supply bottle to the required higher aircraft system pressure; up to 2,250 psig maximum.

This oxygen booster utilizes an air driven pressure amplifier, requiring 145 PSIG maximum air pressure input at 80 SCFM volume.

Features

  • Dimensions: 24-9/16 inches long x 19 inches high x 16 inches deep
  • Weight: 80 pounds
  • Output Hose: 15 feet long with #4 37o JIC female flare swivel fitting at aircraft hook-up end 2250 psi (155 bar) maximum
  • Oxygen Output Rating: 80 SCFM at 150 psi (10.3 bar) maximum
  • Input to Booster Pump: 2500 psi (172 bar)
  • Booster High Pressure Air Pilot: 2500 psi (172 bar)
  • Booster High Pressure Relief: 2750 psi (189.6 bar)
  • Temperature Range: 0 to 200 F (17.7o to 93.3o C)

Optional Equipment to Enhance Unit

  • Single supply bottle: Model Number 20-4502-6000
  • Four bottle cart: Model Number 20-4504-7000

Note

All plumbing, fittings, and components are cleaned for oxygen use. The unit and hoses are cleaned, packaged and shipped separately to avoid any possible system contamination.
Alternate Models
18-4202-1000Previous Part Number
Specifications
Length25 (64) in (cm)
Height19 (48) in (cm)
Width16 (41) in (cm)
Weight80 (36) lb (kg)
Replacement PartsQuote?
N-2444-05CONNECTOR, FEMALE
Z-5877
G-1158-106106SCR, 1/4-20 OVAL HD CRS RC
N-2014-03-SSPLUG, #4 JIC, STAINLESS
Z-5871-01
TF-1047-04*19.0
HC-2278GAUGE, PRESSURE 0-160 PSI
HC-1425-02VALVE, BALL
N-2026-03-SSWIVEL, JIC 37 DEG
G-1202-1065STOPNUT, 5/16-24 ELASTIC
G-1489WASHER, COUNTERSUNK FINISH
N-2446-04ELBOW, 90 DEG MALE
TF-1012*12.0
TF-1043-14*180ASSEMBLY, HOSE O2 CLEAN
N-2030-01-SSSWIVEL, #4 JIC X 1/4 NPT
N-2005-03-SSELBOW, MALE
TF-1079-01PIGTAIL
G-1100-106510BOLT, 5/16-24 HEX HD GR 5
N-2410-05ELBOW, 90 DEG MALE
G-1250-1060NFLATWASHER, 5/16 NARROW
PC-1111FILTER, AIR
HC-2289GAUGE, PRESSURE, O2 CLEANED
PC-1112REGULATOR, AIR
N-2203-07-BNIPPLE, PIPE
G-1100-105010BOLT, 1/4-20 HEX HD GR 5
G-1250-1050NFLATWASHER, 1/4 NARROW
HC-2243VALVE, BALL (SST)
S-1912-01
N-2009-10-SCONNECTOR, MALE
PC-1110
G-1251-1050RLOCKWASHER, 1/4 REGULAR
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.
Compatible Aircraft*
ATR42, 72
AdamA500, A700
AirbusA300, A310, A318, A319, A320, A321, A330-200, A330-300, A340-200, A340-300, A340-500, A340-600, A350, A380
Airbus Military (CASA)212-100, 212-200, C-295, CN-235/HC-144A
BAe146-100, -200, -300/Avro RJ70, RJ85, RJ100, ATP, Jetstream 31, Jetstream 41, RJ70, RJ85
Boeing707, 717, 727-100, 727-200, 737-100, 737-200, 737-300, 737-400, 737-500, 737-600, 737-700, 737-800, 737-900, 737-BBJ, 737-BBJ2, 747, 757, 767, 777, 787, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, KC-46, MD-80, P-8 Poseidon
Bombardier (Business)C-21, Challenger 300, Challenger 350, Challenger 600, Challenger 601, Challenger 604, Challenger 605 (CL605), Challenger 650, Challenger 850, Challenger 870, Challenger 890, Global 5000, Global 6000, Global 7000, Global 8000, Global Express, Global Express XRS, Learjet 23, Learjet 24, Learjet 25, Learjet 31, Learjet 31A, Learjet 35, Learjet 45, Learjet 55, Learjet 60, Learjet 70, Learjet 75
Bombardier (Regional)CRJ100, CRJ1000, CRJ200, CRJ700, CRJ705, CRJ900, CS100, CS300, Dash 7, Dash 8-100, Dash 8-200, Dash 8-300, Dash 8-400
CessnaBravo, Citation 560 XL, Citation 560 XLS, Citation 650, Citation CJ1, Citation CJ2, Citation CJ3, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation III, Citation IV, Citation M2, Citation SII, Citation Sovereign 680, Citation Ultra 560, Citation V, Citation VI, Citation VII, Citation X 750, Latitude 680A, Mustang 510
DassaultFalcon 10-100, Falcon 20-200, Falcon 2000, Falcon 2000EX, Falcon 50, Falcon 50EX, Falcon 7X, Falcon 8X, Falcon 900, Falcon 900EX
Diamond AircraftDA20-A1, DA20-C1, DA40 Diamond Star
Eclipse500
EmbraerEMB-110, EMB-120, ERJ-135, ERJ-140, ERJ-145, ERJ-170, ERJ-175, ERJ-190, ERJ-195, Legacy 450, Legacy 500, Legacy 600, Legacy 650, Lineage 1000, Phenom 100, Phenom 300
Fairchild/DornierDornier DO328, Dornier DO328 Jet, Metro Merlin III, Metro Merlin IV
Fokker100, 50
General DynamicsConvair 580, Convair 600, Convair 640
GrobG120A, G120TP
GulfstreamG100 (Astra SPX), G150, G200 (Galaxy), G350, G450, G500, G550, G650, II, III, IV, IVSP, V, VSP
Hawker BeechcraftBeech 1900, Beech 99, Beechjet 400A, C-12, Diamond, Hawker 1000, Hawker 4000 (Horizon), HS-125 400 Series, HS-125 800 / 850 / 900 Series, King Air, Premier, T-1 Jayhawk, T-400
HondaJetHA-420 HondaJet
IAIAstra, Westwind 1, Westwind 2
LockheedJetstar C-140
McDonnell DouglasDC-10, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, MD-11, MD-80
PiaggioP-180 Avanti
PilatusPC-12
Saab2000
Sabreliner40 Series, 60 Series, 70 Series
Shorts330, 360
Sino SwearingenSJ30-2
SukhoiSJ100
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight106 lbs.
Pkg. 1 Dimensions37 in. x 25 in. x 29 in.
Pkg. 1 TypeCarton
Freight Class70
Schedule B8414.80.9000
