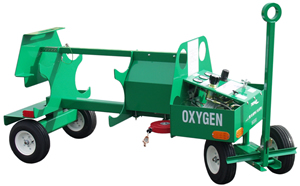

Tronair 20-4505-7000 4 Bottle Aircraft Oxygen Cart

Tronair 20-4505-7000
Manufacturer: Tronair
Part Number: 20-4505-7000
Condition: New
Rating: 5.0 Based on 1 customer review

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Towable 4 Bottle Cart with Booster and High/Low Pressure Regulators
4 Bottle Oxygen Cart With Regulator (Ce) - Up to 3,000 PSI System
Pneumatic Oxygen Booster (Ce) - Up to 2,250 PSIG Maximum
Towable 4 Bottle Cart Only

The 20-4505-7000 is a 4 bottle oxygen cart with the manifold and regulator allows the operator to manifold together up to four oxygen supply bottles and regulate the outlet pressure. Reverse flow check valves prevent back-flow from one supply bottle to another supply bottle.

The oxygen booster provides the capability of boosting remaining lower pressure oxygen from supply bottles to the required higher aircraft system pressure; up to 2,250 PSIG maximum.

Consumer Requirement: This oxygen booster utilizes an air driven pressure amplifier, requiring 145 PSIG maximum air pressure input at 80 SCFM volume.

Cart Specifications

  • Easy loading
  • Use with all standard 9 in (22.9 cm) diameter bottles; CGA 540 connection
  • Adjustable bottle stop
  • Bottles fully captured
  • Pneumatic tires
  • Parking brake
  • Hose compartment
  • Instrument Panel

Booster Specifications

  • Output Hose: 15 ft (4.6 m) long with #4 37 degree JIC female flare swivel fitting at aircraft hook-up
  • Output Rating: 2250 psi (155 bar) maximum
  • Minimum Supply Bottle Pressure: 250 psi (17 bar)
  • Input to Booster Pump: 80 SCFM at 150 psi (10.3 bar) maximum
  • Booster High Pressure Air Pilot: 2500 psi (172 bar)
  • Booster High Pressure Relief: 2750 psi (189.6 bar)
  • All plumbing, fittings, and components are oxygen cleaned. The unit and hoses are cleaned and packaged to avoid possible system contamination.

Temperature Range

  • 0 degree to 200 degree F (17.7 degree C to 93.3 degree C)

You Ask. We Help. Your FAQs.

Have a question? Just ask us! We would be glad to help.

What is the max towing speed on the cart?
The max towing speed on the cart is 10 MPH. This will be labeled on the front of the cart to be seen during operation.

Specifications
Length80 (203.5) in (cm)
BoosterYes
Height37 (94) in (cm)
Width30.5 (77.5) in (cm)
Weight380 (172) lb (kg)
Replacement PartsQuote?
G-1463-1060NUT, 5/16-18 ACORN HEX
PC-1035BRACKET, Z-TYPE
G-1301-02PIN, 1/8 X 1 LG COTTER
PC-1103CLAMP, REGULATOR MOUNTING
PC-1032FILTER
G-1158-107107SCR, 5/16-18 OVAL HD CR RC(D)
N-2255-02-SS-BELBOW, MALE PIPE
Z-5584-01WELDMENT, TOWBAR (P)
TF-1012*12.0HOSE
N-2210-09-BREDUCER, PIPE THREAD
TF-1043-14*180ASSEMBLY, HOSE O2 CLEAN
S-1866-01SHELF, FOUR BOTTLE CART (P)
G-1463-1050NUT, 1/4-20 ACORN HEX
G-1202-1035STOPNUT, #10-32 ELASTIC
HC-2288VALVE, BALL, O2 CLEANED (R)
TR-1813SPACER
S-1907-01SHROUD, BOOSTER (P)
G-1439-1050-SNUTSERT, 1/4-20 OPEN END
G-1352-17RIVET, 5/32 OPEN-END ALUM
G-1100-105022BOLT, 1/4-20 HEX HD GR 5
HC-2245ASSEMBLY, TUBE
U-1041WHEEL, PNEUMATIC
HC-2278GAUGE, PRESSURE 0-160 PSI
TF-1079-03PIGTAIL
K-4709KIT, EXTENSION BOTTLE STOP (P)
J-3427LEVER
N-2030-01-SSSWIVEL, #4 JIC X 1/4 NPT
N-2005-03-SSELBOW, MALE
PC-1040NUT, OXYGEN BOTTLE
N-2005-11-SELBOW, MALE
TF-1047-04*15.0HOSE, 3/8 GRAY
G-1150-103506SCREW, #10-32 HEX HD MACH
G-1100-106510BOLT, 5/16-24 HEX HD GR 5
PC-1108PUMP, OXYGEN BOOSTER
N-2005-04-SSELBOW, MALE
G-1203-1095JAMNUT, 1/2-20 ELASTIC
HC-2289GAUGE, PRESSURE, O2 CLEANED
H-2649-18CAP, END (SQUARE) 3
H-1026*12.0ASSEMBLY, LANYARD
G-1158-106106SCR, 1/4-20 OVAL HD CRS RC
H-1427-01REFLECTOR, RED
TF-1047-04*24.0HOSE, 3/8 GRAY
J-3554MANIFOLD, OXYGEN
N-2026-03-SSWIVEL, JIC 37 DEG
G-1489WASHER, COUNTERSUNK FINISH
J-3535-01PLATE, BOOSTER CLAMPING (P)
N-2001-03-SS-BELBOW, STRAIGHT THREAD
G-1492WASHER, COUNTERSUNK FINISH
HC-2246ASSEMBLY, TUBE
G-1203-1115JAMNUT, 3/4-16 ELASTIC
TF-1079-01PIGTAIL
G-1100-106544BOLT, 5/16-24 HEX HD GR 5
Z-5585-01WELDMENT, BACK STOP (P)
N-2006-04-SSELBOW, FEMALE
HC-1951-04SEAL, CONICAL (-04)
PC-1061NIPPLE, OXYGEN CLEANED
Z-5870-01WELDMENT, INSTRUMENT PANEL (D)
H-1427-02REFLECTOR, AMBER
G-1100-109522BOLT, 1/2-20 HEX HD GR 5
N-2444-05CONNECTOR, FEMALE
R-2096PIN, TOWBAR
G-1301-03PIN, 1/8 X 1-1/2 LG COTTER
Z-5582-01WELDMENT, BOTTLE CART (P)
G-1202-1065STOPNUT, 5/16-24 ELASTIC
PC-1062-02REGULATOR, OXYGEN CLEANED
G-1250-1110NFLATWASHER, 3/4 NARROW
H-2019-76BEARING, FLANGE
G-1250-1090NFLATWASHER, 1/2 NARROW
N-2009-04-SSCONNECTOR, MALE, #4 (SS)
N-2069-03-SELBOW, SWIVEL
N-2410-05ELBOW, 90 DEG MALE
G-1250-1060NFLATWASHER, 5/16 NARROW
N-2206-03-SSPLUG, HEX HEAD
Z-5580-01WELDMENT, FRONT TRUCK (P)
G-1307-0618PIN, 3/8 X 1.8 LG MODEL C
G-1250-1050NFLATWASHER, 1/4 NARROW
N-2010-04-SSCONNECTOR, FEMALE
N-2002-03-SSELBOW, SWIVEL 90 DEG X 1/4
H-1186REEL, STATIC DISCHARGE
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.
Compatible Aircraft*
ATR42, 72
AdamA500, A700
AirbusA300, A310, A318, A319, A320, A321, A330-200, A330-300, A340-200, A340-300, A340-500, A340-600, A350, A380
Airbus Military (CASA)212-100, 212-200, C-295, CN-235/HC-144A
BAe146-100, -200, -300/Avro RJ70, RJ85, RJ100, ATP, Jetstream 31, Jetstream 41, RJ70, RJ85
Boeing707, 717, 727-100, 727-200, 737-100, 737-200, 737-300, 737-400, 737-500, 737-600, 737-700, 737-800, 737-900, 737-BBJ, 737-BBJ2, 747, 757, 767, 777, 787, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, KC-46, MD-80, P-8 Poseidon
Bombardier (Business)C-21, Challenger 300, Challenger 350, Challenger 600, Challenger 601, Challenger 604, Challenger 605 (CL605), Challenger 650, Challenger 850, Challenger 870, Challenger 890, Global 5000, Global 6000, Global 7000, Global 8000, Global Express, Global Express XRS, Learjet 23, Learjet 24, Learjet 25, Learjet 31, Learjet 31A, Learjet 35, Learjet 45, Learjet 55, Learjet 60, Learjet 70, Learjet 75
Bombardier (Regional)CRJ100, CRJ1000, CRJ200, CRJ700, CRJ705, CRJ900, CS100, CS300, Dash 7, Dash 8-100, Dash 8-200, Dash 8-300, Dash 8-400
CessnaBravo, Citation 560 XL, Citation 560 XLS, Citation 650, Citation CJ1, Citation CJ2, Citation CJ3, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation III, Citation IV, Citation M2, Citation SII, Citation Sovereign 680, Citation Ultra 560, Citation V, Citation VI, Citation VII, Citation X 750, Latitude 680A, Mustang 510
DassaultFalcon 10-100, Falcon 20-200, Falcon 2000, Falcon 2000EX, Falcon 50, Falcon 50EX, Falcon 7X, Falcon 8X, Falcon 900, Falcon 900EX
Diamond AircraftDA20-A1, DA20-C1, DA40 Diamond Star
Eclipse500
EmbraerEMB-110, EMB-120, ERJ-135, ERJ-140, ERJ-145, ERJ-170, ERJ-175, ERJ-190, ERJ-195, Legacy 450, Legacy 500, Legacy 600, Legacy 650, Lineage 1000, Phenom 100, Phenom 300
Fairchild/DornierDornier DO328, Dornier DO328 Jet, Metro Merlin III, Metro Merlin IV
Fokker100, 50
General DynamicsConvair 580, Convair 600, Convair 640
GrobG120A, G120TP
GulfstreamG100 (Astra SPX), G150, G200 (Galaxy), G280, G350, G450, G500, G550, G650, II, III, IV, IVSP, V, VSP
Hawker BeechcraftBeech 1900, Beech 99, Beechjet 400A, C-12, Diamond, Hawker 1000, Hawker 4000 (Horizon), HS-125 400 Series, HS-125 800 / 850 / 900 Series, King Air, Premier, T-1 Jayhawk, T-400, T-6A Texan II
HondaJetHA-420 HondaJet
IAIAstra, Westwind 1, Westwind 2
LockheedC-130, Jetstar C-140
McDonnell DouglasDC-10, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, MD-11, MD-80
PiaggioP-180 Avanti
PilatusPC-12, PC-9
Saab2000, 340
Sabreliner40 Series, 60 Series, 70 Series
Shorts330, 360
Sino SwearingenSJ30-2
SukhoiSJ100
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight600 lbs.
Pkg. 1 Dimensions88 in. x 42 in. x 47 in.
Freight Class150
Freight NMFC188560-4
Schedule B8716.80.5070
