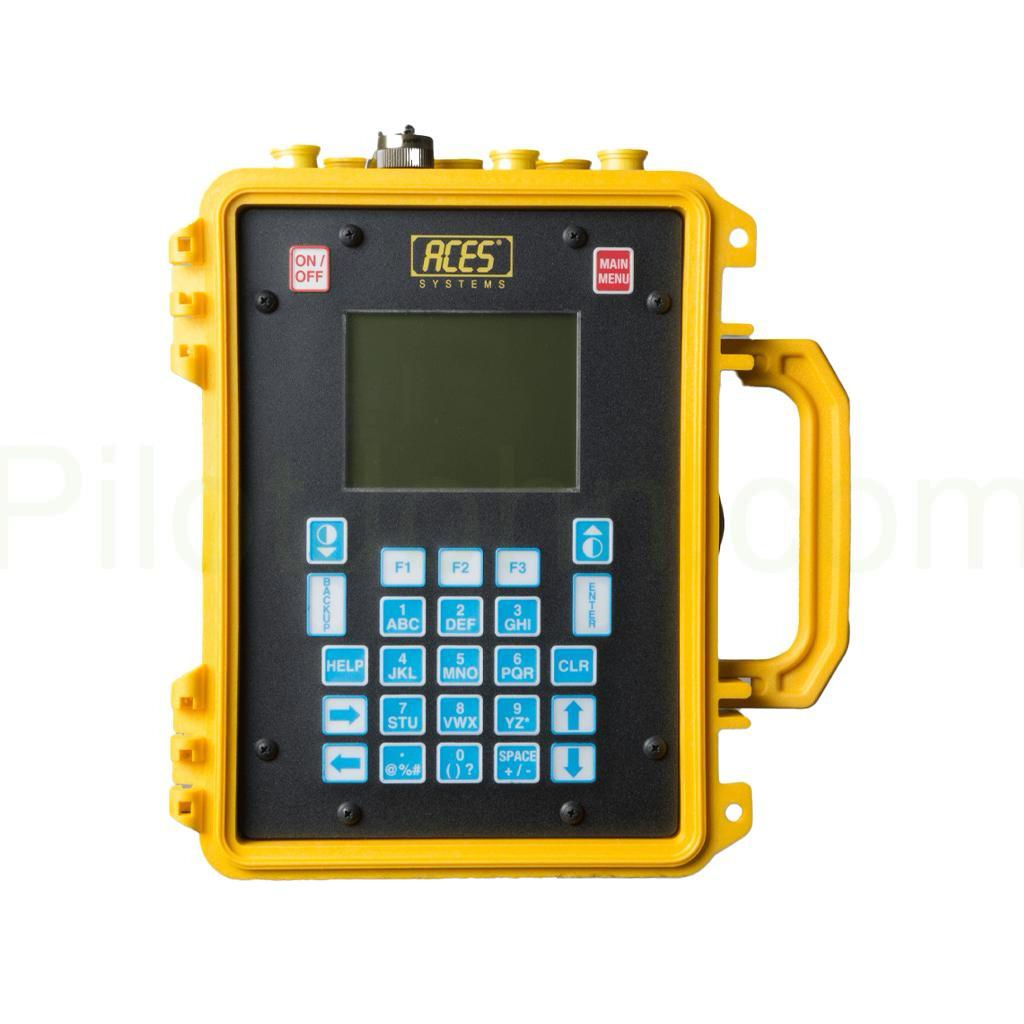

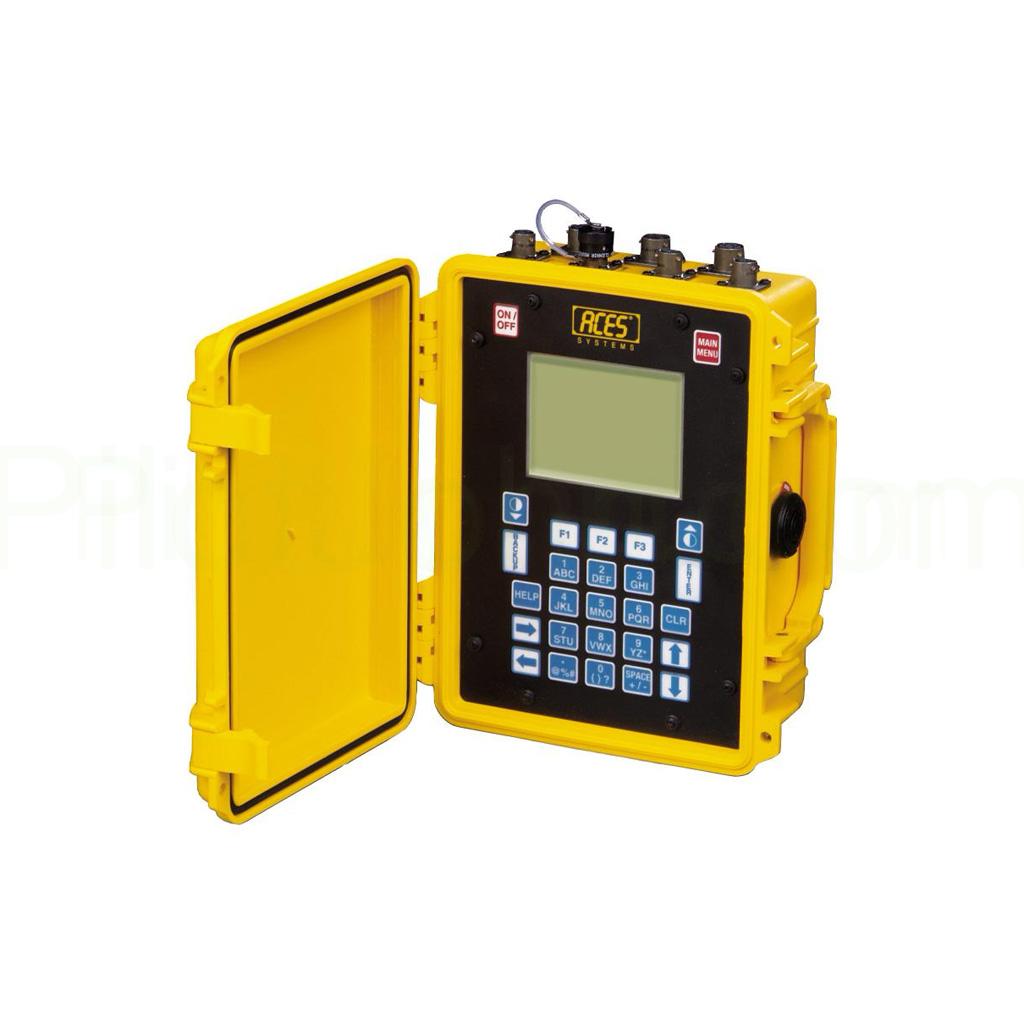

ACES Systems Z2020HR-Vib-110 – 2020HR ProBalancer Analyzer Kit – Vibration & Balancing
Item Superseded
This item has been discontinued or is no longer available.
It has been replaced by Aces Systems Z2021-PROP (Qty 1)
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Increase your helicopter’s performance today with the ACES Systems ProBalancer Analyzer Kit. Designed specifically for use on Robinson Helicopters.
For those who need a little more horsepower than the ProBalancer Sport, we offer the Model 2020HR ProBalancer Vibration Analyzer Balancer Kit. It provides step-by-step on-screen instructions for performing propeller balancing, rotor track and balance measurements, and vibration surveys at an affordable price.
Applications:
- Dynamic Propeller Balance
- Rotor Track & Balance
- Vibration Surveys
Benefits of Balancing:
- Reduce Component Wear
- Increase Aircraft Performance
- Reduce Crew Fatigue
- Increase Safety
Model 2020 HR ProBalancer Features:
- One-shot balancing
- Automated weight placement solutions
- Stores reusable setups
- Graphic spectral display with curser and backlit LED screen
- Dual channel, expanded views, and simultaneous inputs
- Supports multiple sensor types
- Includes an industry-unique 5-year warranty
- Printing capability
- AvTrend software

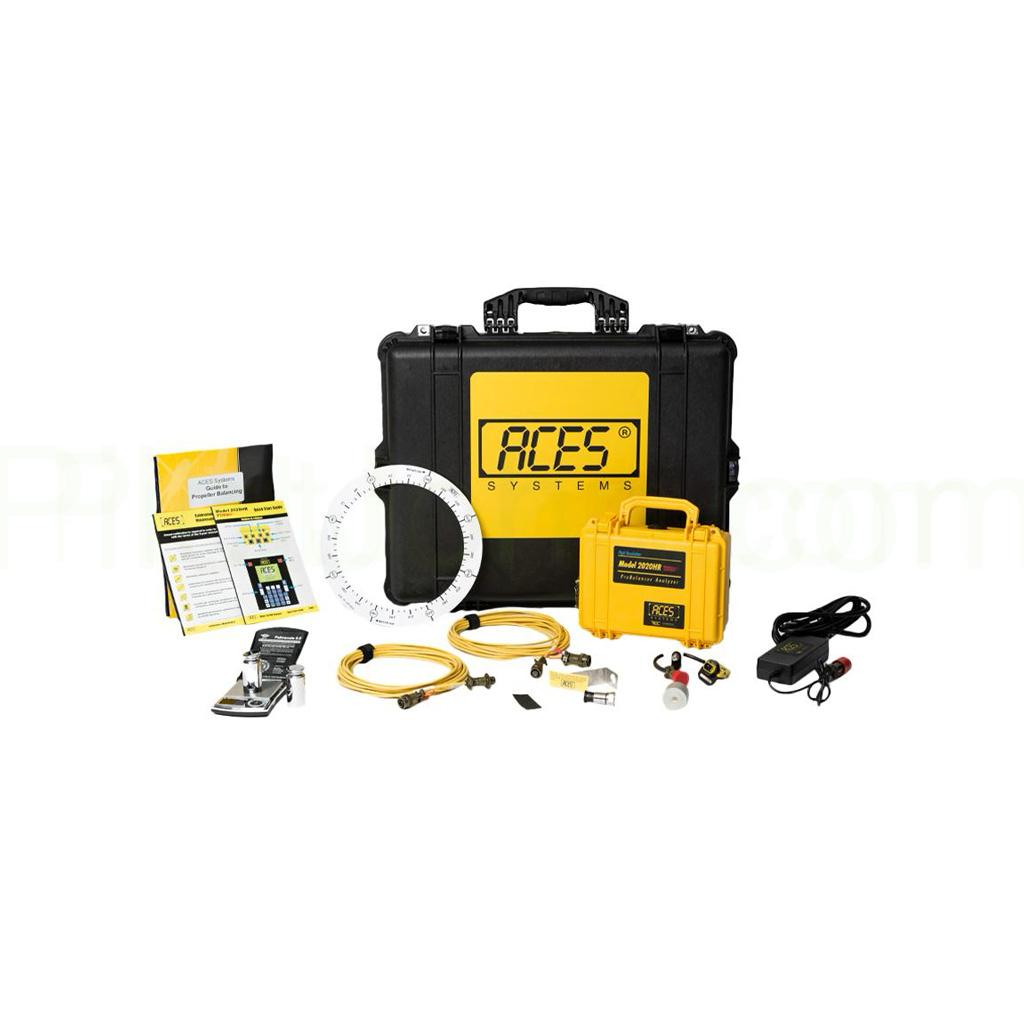

The ACES 2020 ProBalancer Analyzer Kit includes all the vibration analyzing and balancing equipment required to improve the performance of your helicopter.
Specifications
| Accuracy | Vibration Amplitude: ± 5%, 0-10 IPS Frequency Range: 0-12 KHz (720,000 RPM) per channel when collecting on both channels simultaneously OR 0-20 KHz (1,200,000 RPM) when collecting on a single channel Tachometer Inputs: ± 0.3%, 100-10,000 rpm |
| Power Supply | Type: Nickel Metal Hydride (NiMH) 12V, 4.5 Amp-hour internal Operation Time: 10 to 12 Hours (optimum) Charging Time: 2 Hours |
| Voltage | 12V DC Battery or 14-28V DC Ship’s Power |
| Physical | Height: 9.3" Width: 7.5" Depth: 4.4" Weight: 4.8 lbs. (2.18 kg) Operating Temperature: 0°C to +50°C |
| AC Input | The data acquisition system is capable of measuring AC values from 0.1 volts to 2.048 volts peak |
| Tachometer- Synchronized Measurements |
The analyzer can use the tachometer input to synchronously sample and average data. These data contain phase information for vibration related to the tachometer. The analyzer can report phase to ±3 degrees for this vibration, which is reproducible to 1 degree. |
| Unconditioned Tachometer Input |
Tachometer signal processing electronics are capable of adjusting the full-scale input range to handle any available sensor for measuring speed. Adjustment of the tachometer conditioning electronics is performed automatically by the microprocessor and requires no user intervention. The voltage level that is used as a reference for the detection of the start of the revolution can be adjusted from 120mV to 5 volts. The tachometer circuitry can detect speeds up to 10.000 RPM. |
| Auto-Ranging Input | The analyzer auto-ranges all signal inputs based on sensor sensitivity. That way, it can determine the optimum gain setting to achieve the maximum dynamic range. Gains are adjusted by factors of two (1 to 512) for all channels. This adjustment enables the analyzer to perform each measurement without overload and with maximum accuracy. |
| Sensor Types | The analyzer will accept any vibration signal input (acceleration, velocity, or displacement). The input is then displayed as collected or integrated into another vibration unit. The vibration input will accept any voltage-generating sensor (must have an external charge converter when required). |
| Analysis Range | Data is accurately transformed from the time to frequency domain using a high roll-off, 8-pole elliptical, anti-aliasing filter with a Fast Fourier Transformer (FFT). The analyzer will perform FFT resolutions of 100, 200, 400, and 800 lines. |
| General Information | |
|---|---|
| Part # | z2020HR-Vib-110 |
| Manufacturer | Aces Systems |
| Shipping Information | |
|---|---|
| Schedule B | 9031100000 |
| ECCN | 9B990 |
