Aero Weigh AW-3-30 30,000 lbs Aircraft Weight Scale

Aero Weigh AW-3-30
Aero Weigh AW-3-30Aero Weigh AW-3-30
Manufacturer: Aero Weigh
Part Number: AW-3-30
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Wired - 30,000 lbs System Capacity
Wireless HandHeld - 30,000 lbs Capacity
Wireless - 75,000 lbs Capacity
Wired - 50,000 lbs Load Cells
Wired - 75,000 lbs Capacity
Aero Weigh Aircraft Weight Scales
The New Way to Weigh

The new Aero Weigh AW-3-30 aircraft weight system is for weighing aircraft up to 30,000 lbs.

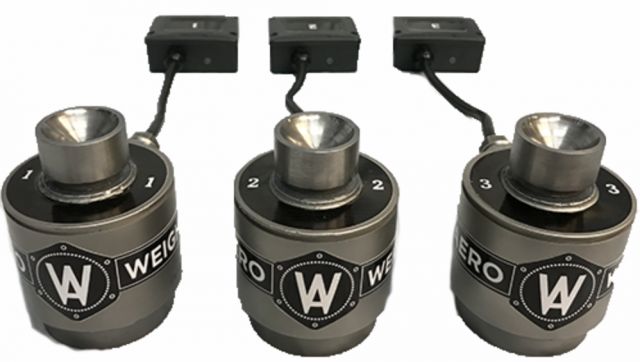

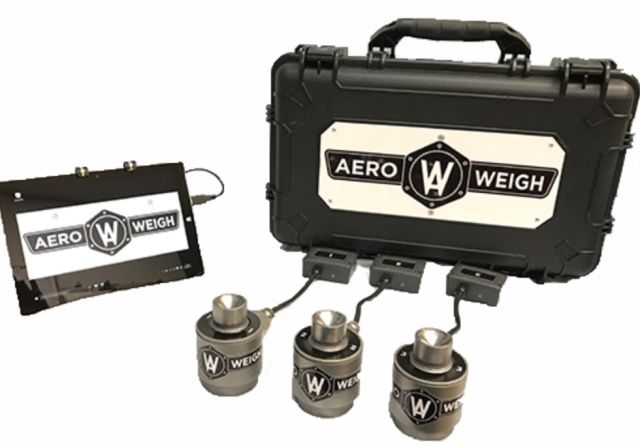

The kit features three 10,000 lbs wireless load cells that use a Microsoft tablet or computer, Aero Weigh Software, and USB antenna. You can also order the optional hand held transceiver.

Specifications

The 3 load cells are jack mounted using the one inch hole on the jacks. The kit includes a full set of 3 mounting adapters for rams from 1.5 inches up to 2.75 inches in diameter.

Features of Aero Weigh Weight Scales

Accurate - Our Aeroweigh cells are like no other manufactures cells. Our cells are made as a single piece unit on a multi axis mill. Heat treated and fitted with our radial force technology. Standard cup and mounting studs are manufactured from 17-4 stainless steel to give our customers the highest quality and most technologically advanced weighing equipment in the world.

Easy to Use - Our Aeroweigh aircraft scale systems are the most easy to use aircraft scales in today's market. Aircraft weighing has never been as easy using our wireless aircraft weighing kits. Solid signals, up to 300 ft range, high power wireless transmission with reliable read out via your choice of the Microsoft MS Surface tablet, or at your option our hand held transceiver or a fully functional laptop computer.

Your choice of read outs - We give you the the choice of readouts: MS Surface tablet or our most easy to use Hand Held Transceiver (HHT). All are available as standard options on our buy it now page, just click, configure and place your order.

Wireless aircraft scales are here - Our wireless aircraft scales operate on a 2.4 Ghz frequency and use FFID Hexadecimal identification and are capable of full encryption. Running on standard AA Energizer batteries our systems last far past one year in service. Unlike some, our unit can have the batteries replaced in the field with out losing their memory. Aircraft weighing and helicopter weighing can be accomplished with no cables, no extension cords and are completely wireless

Lightest aircraft scale kit on the market - Our Aeroweigh kits are the smallest and lightest aircraft weighing equipment on the market for their capacity. Rugged case is provided with transport wheels and fold out handle, all components inside are nested in 2.2 foam lining and held secure. Our units are capable of travel and can fit in most overhead bins.
Compatible Aircraft*
AdamA500, A700
AerospatialeNord 262
Airbus Military (CASA)212-100, 212-200
BAeJetstream 31, Jetstream 41
Bombardier (Business)C-21, Learjet 23, Learjet 24, Learjet 25, Learjet 31, Learjet 31A, Learjet 35, Learjet 45, Learjet 55, Learjet 60, Learjet 70, Learjet 75
Bombardier (Regional)Dash 6 (Twin Otter UV-18A)
Britten NormanIslander/Trislander
Cessna150, 152, 172, 177, 180, 182, 185, 206, 207, 210, 310, 320, 337 Skymaster, 340, 401, 402, 404, 411, 414, 414A, 421, 421C, Bravo, Caravan 208, Caravan 208B, Caravan 406, Citation 560 XL, Citation 560 XLS, Citation 650, Citation CJ1, Citation CJ2, Citation CJ3, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation III, Citation IV, Citation M2, Citation SII, Citation Sovereign 680, Citation Ultra 560, Citation V, Citation VI, Citation VII, Latitude 680A, Mustang 510
Diamond AircraftDA20-A1, DA20-C1, DA40 Diamond Star
Eclipse500
EmbraerEMB-110, EMB-120, Phenom 100, Phenom 300
Fairchild/DornierEnvoy 3, Merlin II, Metro Merlin III, Metro Merlin IV
GulfstreamAero Commander, G100 (Astra SPX)
Hawker BeechcraftBeech 1900, Beech 99, Beech Baron, Beech Bonanza, Beechjet 400A, C-12, Diamond, Duke 60, HS-125 400 Series, HS-125 800 / 850 / 900 Series, King Air, Premier, Queen Air, T-1 Jayhawk, T-400, T-6A Texan II, U-21 A/G
HondaJetHA-420 HondaJet
IAIAstra, Westwind 1, Westwind 2
MitsubishiMU-2 Marquise, MU-2 Solitaire
MooneyAll
NorthropT-38
PiaggioP-180 Avanti
PilatusPC-12, PC-9
PiperAerostar, Aztec, Cherokee, Cheyenne II, Cheyenne III, Chieftan, Comanche, Navajo, Seneca
Saab340
Sabreliner40 Series, 60 Series, 70 Series
Shorts330, 360
Sino SwearingenSJ30-2
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
