BatteryMINDer® 2012-AGM 12V 2A 2000 Series For AGM Specialty Batteries
Features & Benefits:
• Designed for High-Performance Specialty AGM Sealed Batteries (such as those made by Optima, Odyseey, Polaris & Yuasa.
• Guaranteed to never overcharge, regardless of how long connected.
• Temperature compensation ensures proper charge in hot or cold environments.
• Installed ambient temperature sensor for 0°F–130°F operating range ensures the battery will never be overcharged or undercharged regardless of temperature extremes. Optional "at the battery" sensor is also available for greater accuracy when battery and • charger are not in same ambient temperature environment.
• Diagnostic LED indicators for power, polarity reversal, battery weak, load, bad cell, testing, desulfating, temperature compensation, charging stage and charge level.
• Maximizes battery life and capacity, reconditions weak batteries.
• Automatic high frequency (not high voltage) pulse desulfation (U.S. patented.)
• Plug 'n Run operation-no buttons to push.
• Microprocessor controlled ensures accurate-precise charging and maintenance during entire lifetime of unit.
• Maintains up to six batteries at a time (6 or 12 Volt batteries connected in parallel) Requires use of Y-Connectors 210AY (sold separately) or customer supplied 18-Gauge insulated wire2.
• FCC certified.
• Extremely efficient, low operating costs.
• Automatic disconnect and resume if AC power is interrupted.
• Short circuit, spark, polarity and thermal runaway protection.
• Built-in Battery Condition Indicator.
• Worldwide 100-240 VAC 50/60 Hz input.
• Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
• Not for use with aircraft batteries. For information about BatteryMINDers designed for use with aircraft batteries, see our Aviation Application page.
• IMPORTANT INFORMATION ON USING PRODUCT OUTDOORS: Always mount units in vertical position with cord sets exiting downward to ensure weather tight integrity. Unit must be mounted this way to ensure long term trouble-free life including weatherproof integrity. Mounting in any other manner or using unmounted (parallel to ground) except indoors may cause unit to fail due to water intrusion that is unable to drain correctly to avoid damage.
• BatteryMINDer® Model 2012-AGM is precision set for Specialty AGM batteries including but not limited to: Optima and Odyssey. Not for use with non-AGM batteries.
What's In the Box

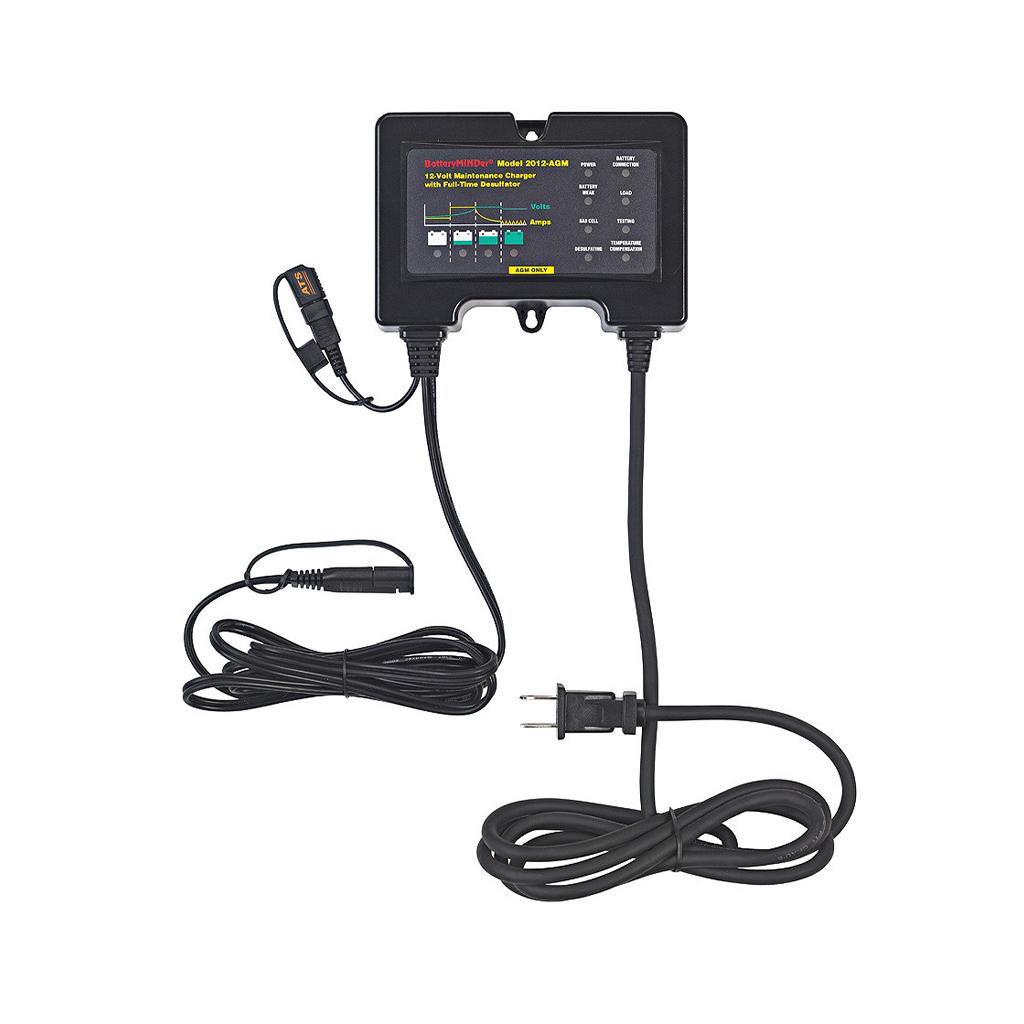

• Model 2012-AGM Charger-Maintainer-Desulfator
• Ambient Temperature Sensor (installed)
• Battery Clip Cord Set with Quick Connector

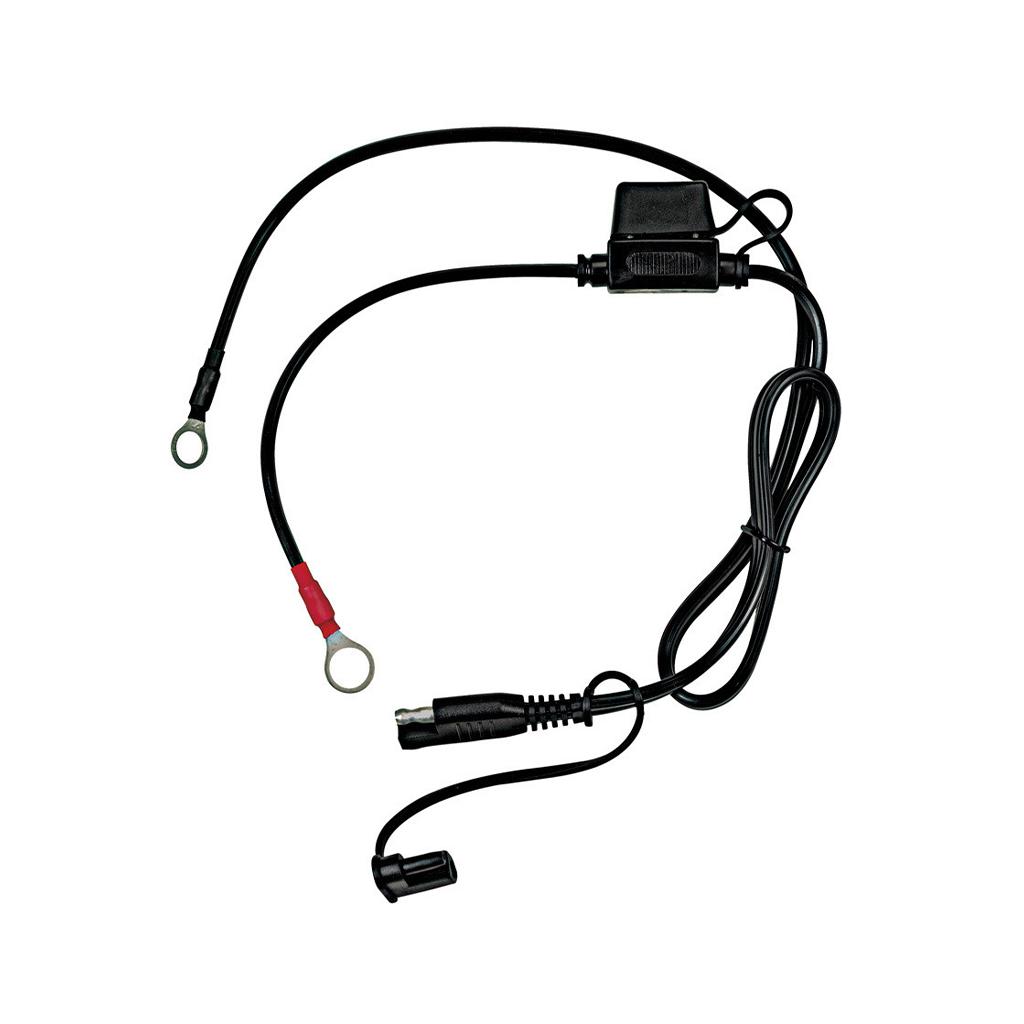

• Ring Terminal Cord Set with Quick Connector
• 6’ AC cord, 6’ DC cord with quick connector (SAE)
| General Information | |
|---|---|
| Part # | 2012-AGM |
| Manufacturer | BatteryMINDer |
| Shipping Information | |
|---|---|
| Product Weight | 2.9 lbs. |
| Product Dimensions | 5.7 x 4.1 x 2.1 in. |
| Schedule B | 8504409520 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Charging Current | 2 AMP |
| Comes With | BC-2410: 2' Non Fused Battery Clip Cord Set with Quick Connector, |
| International Standard | IP65, Dust tight |
| Multiple Batteries (#) | 6 |
| Optional Accessories | 210AY, 210RT, ABS-248, ATS-1, BC2AY, BCAA, DCE12, DCE25, EZC-01, EZC-RT, RTA-2415, RTA-7215, VPP12 |
| Overcharge Protection | Yes |
| Polarity Reversal Protection | Yes |
| Power Source | 90-240 VAC, 47-63 Hz |
| Product Dimensions | 5.69" L x 4.06" W x 2.13" H |
| Temperature Compensation | Yes: -4°F (-20°C) to 122°F (50°C) |
| Voltage | 12V |
| Warranty | 5 Year |
| Works With | Optima, Odyssey, Polaris, Yuasa & Other High Performance Specialty 12 Volt Sealed AGM Lead-Acid Batteries |
