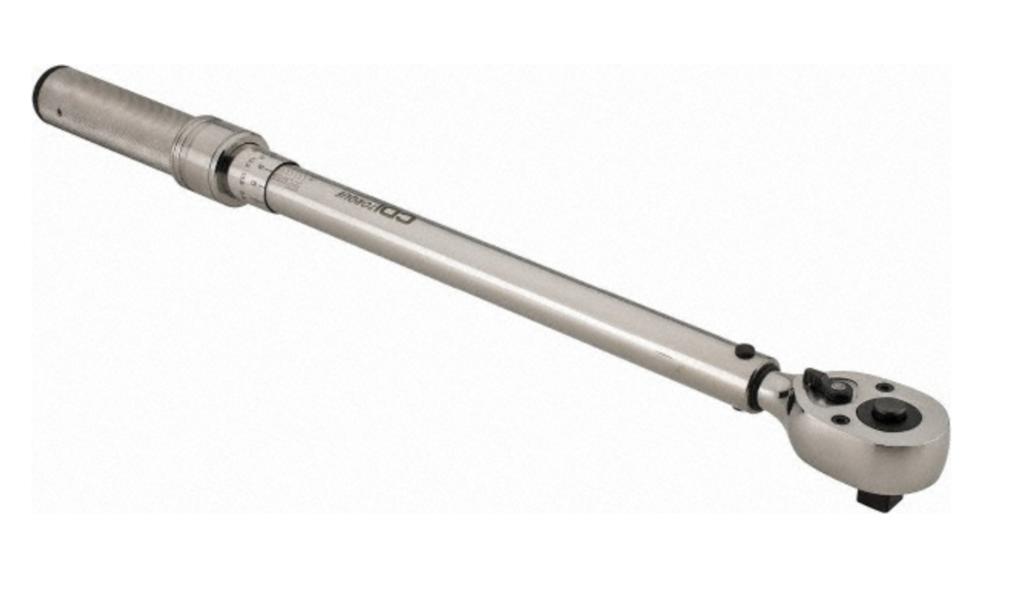

CDI 1503MFRMH – 1/2" Drive Micrometer Torque Wrench

The CDI 1503MFRMH is a 1/2-inch drive, dual-scale micrometer click-type torque wrench covering 20–150 ft-lb (27.1–203.4 Nm) — the entry point into the CDI foot-pound metal handle family and the natural step up for mechanics who've reached the upper limits of what a 3/8-inch drive wrench handles comfortably. The 19-inch length and 3.15 lb build deliver better mechanical leverage across the full 150 ft-lb range, and the 1/2-inch drive provides the socket compatibility and stability that heavier airframe and drivetrain hardware requires.

The 1/2-inch drive range that covers light airframe and landing gear hardware

At 20–40 ft-lb the 1503MFRMH handles engine cowling fasteners, access panel hardware, and light landing gear door attach points. The 40–80 ft-lb mid-range covers wheel pant and fairing attach bolts, brake caliper mounting hardware, and nose gear shimmy damper fittings. Toward the 100–150 ft-lb ceiling it handles main gear axle nuts on light singles, engine mount attach bolts on smaller piston aircraft, and GSE wheel and caster hardware. One wrench, documented and certified, covers the full range of light airframe and gear work that defines day-to-day GA maintenance.

Documentation-ready for certificated maintenance

Every 1503MFRMH ships individually serialized with a NIST-traceable certificate of calibration, satisfying traceability requirements in FAA-accepted maintenance programs, Part 145 repair station QCMs, and ISO 9001 quality systems. Meets or exceeds ASME B107.14 and ISO 6789. Accuracy: ±4% CW, ±6% CCW of indicated value from 20–100% of full scale.

Built for the step up to 1/2-inch drive

• 1/2" drive provides socket compatibility and torque stability that 3/8" drive can't match above 100 ft-lb
• 19" overall length delivers mechanical leverage across the full 150 ft-lb ceiling
• 1 ft-lb graduation — consistent with maintenance manual specifications stated in whole or 5 ft-lb increments
• Knurled metal handle at 3.15 lb withstands sustained professional use on landing gear and airframe sequences
• Spring-loaded pull-down lock ring locks the setting through multi-fastener torque sequences
• Laser-marked dual scale reads ft-lb and Nm simultaneously — no conversion chart needed
• Fixed ratcheting 1/2" drive head with quick-release button for fast socket changes
• Audible click plus tactile impulse confirms torque in noisy hangar environments
• Rated to a minimum of 5,000 operating cycles
• Made in the USA by CDI Torque Products, a Snap-on Industrial Brands company

Where A&P mechanics reach for the 1503MFRMH

• Engine cowling and nacelle fasteners on light singles and light twins (20–40 ft-lb)
• Wheel pant, spinner, and fairing attach hardware (40–80 ft-lb)
• Brake caliper mounting bolts and nose gear shimmy damper hardware
• Main gear axle nuts on light singles and sport aircraft (80–120 ft-lb)
• Engine mount attach bolts on smaller piston aircraft (100–150 ft-lb)
• GSE wheel and caster hardware requiring documented torque in the 1/2" drive range

Why source aviation tooling from Pilot John International

Pilot John International is an aviation-specialist distributor — not a general industrial catalog. We serve Part 145 repair stations, FBOs, MRO operations, and flight schools across the U.S. We understand the documentation demands that come with landing gear and engine mount hardware — both are high-consequence work that auditors scrutinize closely. Our on-site ISO 17025-accredited calibration laboratory recertifies the 1503MFRMH and returns it with a current NIST-traceable certificate, keeping it in your tool crib and out of a discrepancy log.
