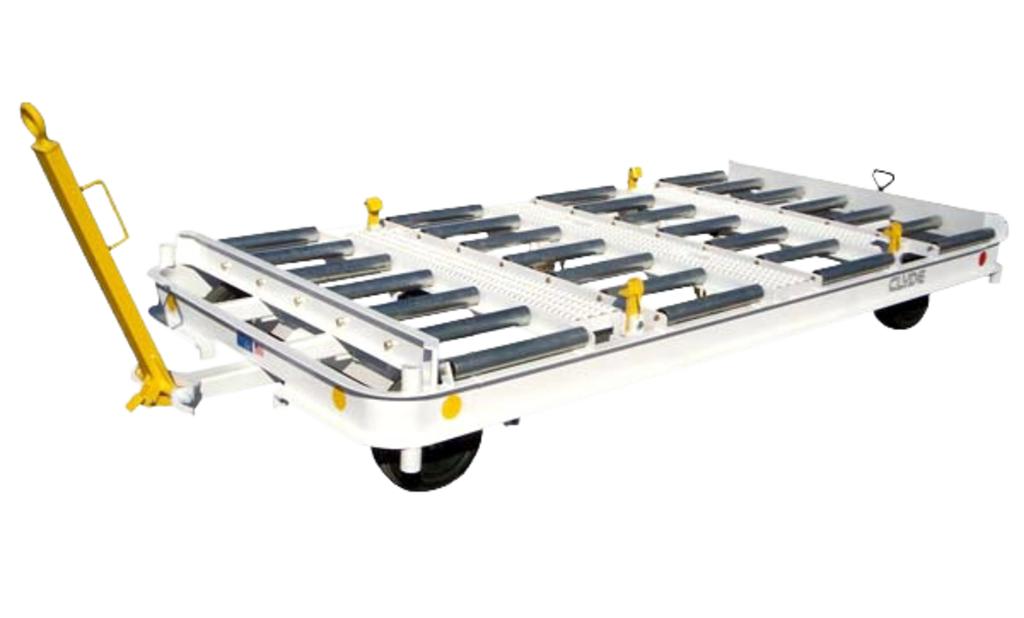

Shop Clyde Machines Model 15F4896 LD8 Roller Bed Dolly (Double Ackerman) - 15F4896

The Clyde Machines Model 15F4896 Container Trailer (15F4896) is a 7,000 lb capacity ULD container trailer designed for higher-capacity cargo and baggage handling, built to transport (2) LD1 containers, (2) LD2 containers, (2) LD3 containers, or a single larger ULD including (1) LD4, (1) LD8, or (1) LD11. With a four wheel steering configuration, it improves maneuverability and turning performance in congested ramp lanes and tight cargo apron layouts while still supporting tow-train operations. Outside of aviation, it is also a strong fit for logistics yards and industrial facilities that use tugs to move standardized containers and palletized loads through high tempo routes.

The 15F4896 is built for repeatable ULD handling with features aimed at safer loading, more controlled towing, and long service life. Grip strut walkways provide secure footing during container positioning, and spring-loaded vertical restraints with end guides help keep ULDs aligned and retained during transport. A towbar-activated parking brake supports safer staging during loading, unloading, and queueing.

Key Features

• 7,000 lb cargo capacity for higher-capacity ULD moves.
• ULD compatibility for (2) LD1, (2) LD2, (2) LD3, or (1) LD4, (1) LD8, or (1) LD11.
• Four wheel steering configuration (15F4896) for enhanced maneuverability.
• Stackable design supports easier storage and safer shipping.
• Grip strut walkways for secure footing during loading and staging.
• Spring-loaded vertical restraints with end guides front and rear for retention and alignment.
• Towbar activated parking brake for controlled staging.
• 4.00 x 8, 3 stage solid tires on 7 ga rims.
• Max tow speed of 15 mph (24 kph).
• Durable powder coat finish for corrosion resistance in ramp environments.

Specifications

• Cargo capacity: 7,000 lbs
• ULD capacity: (2) LD1, (2) LD2, (2) LD3, or (1) LD4, (1) LD8, or (1) LD11
• Steering: Four wheel steering
• Max tow speed: 15 mph (24 kph)
• Tires: 4.00 x 8, 3 stage solid tires on 7 ga rims
• Weight: 1,600 lbs
• Length (towbar up): 170 in
• Length (towbar down): 189 in
• Width: 68 in
• Height: 24 in

If you are standardizing ULD handling equipment or matching trailers to specific tugs and tow routes, PJi® aviation specialists can help confirm container compatibility, tow train configuration, and best practice setup so your cargo operations stay efficient and safe across aviation and other material handling environments.
