Columbus Jack 10098-35 100 Ton Tripod Jack

Columbus Jack 10098-35
Columbus Jack 10098-35
Manufacturer: Columbus Jack
Part Number: 10098-35
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
120 Ton Tripod Jack - 160 inches up to 262 inches
125 Ton Tripod Jack - 96 inches up to 246 inches
125 Ton Tripod Jack - 139 inches up to 224 inches
80 Ton Tripod Jack - 155 inches up to 238 inches
16 Gallon Dump / 16 Gallon Fill Tank

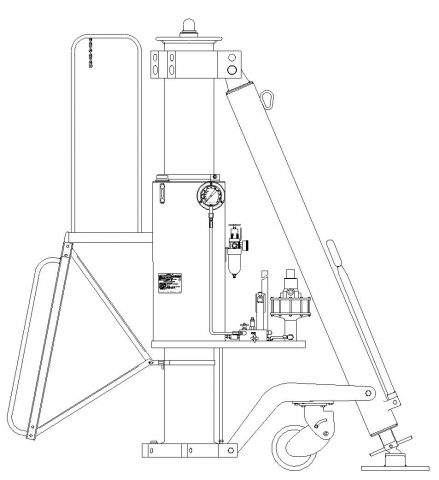

This Fixed Height Tripod Jack is used on and for specific air-craft jacking applications during normal aircraft maintenance checks. The tripod jack is designed and built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service.

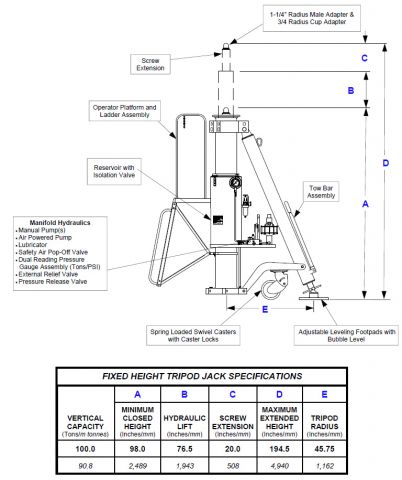

Specifications

  • Vertical Capacity: (tons / m tonnes) 100.0 / 90.8
  • Minimum Height: (inches / mm) 98.0 / 2,489
  • Hydraulic Lift: (inches / mm) 76.5 / 1,943
  • Screw Extension: (inches / mm) 20.0 / 508
  • Maximum Extended Height: (inches / mm) 194.5 / 4,940

Standard Features

  • Constructed for ease of assembly, operation and maintenance
  • Manifold Hydraulics - includes Manual & Air Powered
  • Pumping Units, Dual Reading Pressure Gauge Assembly (Reading in Tons/PSI) and External Relief Valve
  • Steel Reservoir with sight gauge. Also includes a hydraulic isolation valve.
  • Mechanical Lock Nut
  • Operator Platform/Ladder Assembly
  • Tow Bar Assembly
  • Spring Loaded Swivel Casters with Caster Locks (Maximum towing speed 5 MPH)
  • Adjustable Leveling Footpads with Bubble Level
  • Includes both a 1-1/4 Radius Male Adapter and a 3/4 Radius Cup Adapter
  • Protective Cylinder Rain Cover
  • Skydrol Resistant Yellow Paint or to customer specification/li>

Documentation

  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 36 Month Written Warranty

Jacking Applications

Wing or Main Body
  • B747-200, -300, -400 & Freighters, B757-200 / -300 (C-32), B767-200, -300 & -400, B787
Compatible Aircraft*
Boeing747, 757, 767, 787
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Servicing

We service the 10098-35 and other items like it at our facility.

A few of the common services we offer for this item are:
• Load Test and Certification
• Seal Replacement
• Standard Repair / Maintenance
How does servicing work for this item?
We'll provide you with a custom-sized pallet for your item and send it to you via LTL freight. Once you receive the pallet, strap down your item to it and attach the pre-paid shipping label. After you let us know when it's ready to go, we'll schedule the pickup from your facility. The entire process takes only a few days and makes servicing your item less expensive since we can do it directly at our facility. When we've completed the servicing, we'll ship your item back to you via LTL freight. How often should jacks be load tested?
(Statement from Tronair) Tronair recommends functional load testing of hydraulic jacks on an annual (12-month) preventative maintenance cycle. Tronair also recommends load testing any time the jack seals have been replaced.

To request service for load testing a tripod jack, please contact us at the form below or visit us at the following link to request service - Aircraft Jack Load Test.
What seal kits can we replace?
We have the capability to replace the cylinder and hand pump seals on tripod jacks. Along with replacing the seals, we will provide load test certification as recommended by the manufacturer. To help with making the seal kit replacement process simple, we will help with shipping the jacks to and from our facility.
Parts

We sell parts for the 10098-35 and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

A few of the common parts we offer for this item are:
• Cylinder Seal Kits
• Pump Seal Kits
• Casters / Wheels
• Air Pump Kits
• Cover
• Ram Protection Ring
• Safety Pins
• Replacement Reservoir
• Jack Pads
• PDF Operating Manuals
Renting

We provide short-term and long-term rentals for the 10098-35. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 10098-35 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
