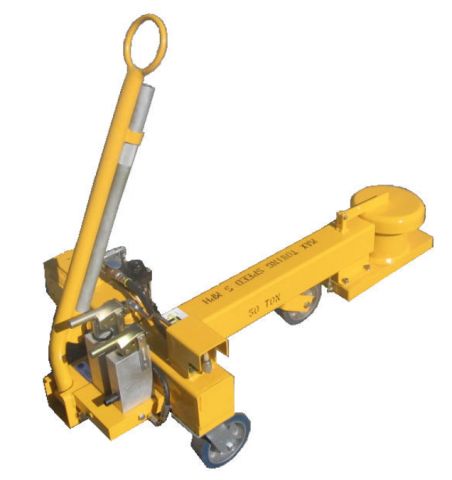

Columbus 5007-56 – 50-Ton Aircraft Axle Jack

The Columbus 5007-56 single-acting axle jacks are used worldwide for all normal axle jacking applications for both narrow and wide-body aircraft. With 6" casters, these jacks are highly maneuverable and include both dual hand pumps and an air pump for ease of operation. Included is Columbus Jack's exclusive EVAC-U-TRACT cylinder retraction assist, making the single-acting jack cylinder function as a double-acting cylinder. This permits faster removal of the jack from under the aircraft, and with complete ram retraction, the cylinder is better protected.

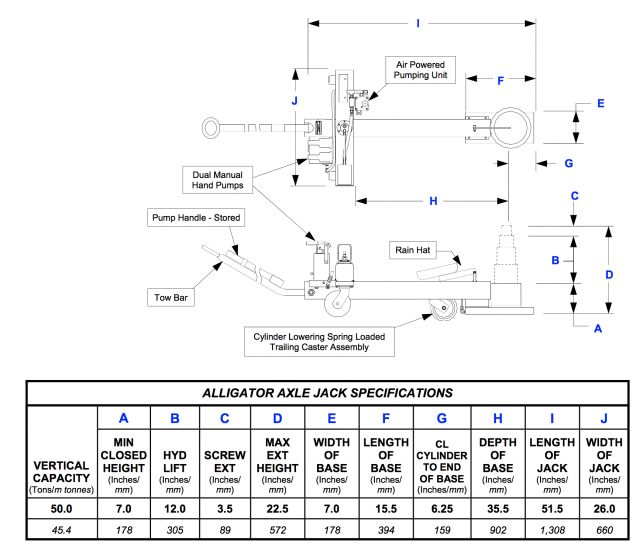

Specifications

• Vertical Capacity: 50 tons (45.4 metric tons)
• Minimum Height: 7" (17.8 cm)
• Hydraulic Lift: 12" (30.5 cm)
• Screw Extension: 3.5" (8.9 cm)
• Maximum Extended Height: 22.5" (57.2 cm)
• Net Weight: 420 lbs. (190 kg)

Standard Features

• 50-Ton, Single-Acting Cylinder
• Dual Manual Hand Pumps
• Air Powered Pumping Unit
• Evac-U-Tract – Air-Assisted Ram Retraction
• 6" Diameter Casters
• Towbar Assembly
• Skydrol-Resistant Yellow Paint

Documentation

• Operation & Maintenance Manual
• Certificate of Conformance
• Load Test Report
• Factory New – 12-Month Written Warranty

Jacking Applications

Nose Landing Gear

• A300, A310, A318, A319, A320, A321, B707, B727, B737CL, B737NG, B757, E170, E190

Main Landing Gear

• A300, A310, A318, A319, A320, A321, B707, B717, B727 B737CL, B737NG, B757, MD80's, DC9, E170, E190
