Malabar 175S-2 Towable Aircraft Wheel & Brake Changer

Malabar 175S-2
Malabar 175S-2
Manufacturer: Malabar
Part Number: 175S-2
NSN: 4920-01-469-9561
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Do you need a brake cradle?
Do you need another brake cradle?
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Wheel and Brake Changer - 34 to 56 inches OD
Tire & Brake Dolly (Ce)
Commecial Airline Wheel and Brake Changer
Wheel Dolly for diameters up to 25 to 40 inches
Brake Attachment for Wheel Dolly HWD-40

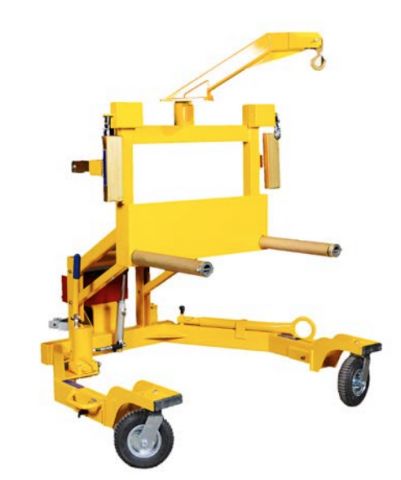

The Malabar 175S-2 towable wheel/brake changer improves efficiency by making wheel and brake changes a one-man operation. The unit's tow capability and foam filled tires, in lieu of light-duty running gear units, provides a suitable wheel/changer for ramp maintenance operations. The low profile and sturdy 175S-2 is suitable for limited clearance narrow-body aircraft as well as the largest wide-body aircraft. The integral boom assembly provides an improved method of removing aircraft brakes from boxes in addition to brake installation.

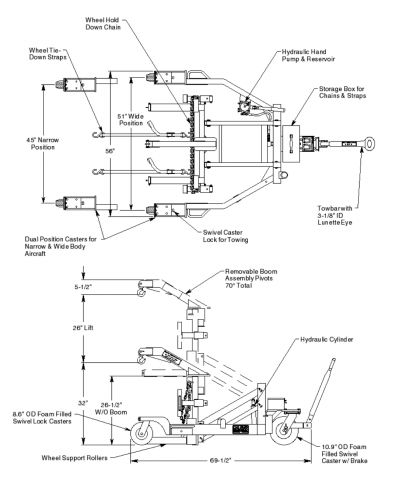

The unit is capable of changing aircraft tires and wheel assemblies from 32 to 56 inches O.D. and widths to 22 inches. The boom or brake cradle (BC300P, BC400P, BC500P) is required for brake change operations. The unit consists of a hydraulic hand pump, hydraulic cylinder, foam filled swivel lock casters, foam filled swivel lock caster with brake, towbar, inner and outer frames, boom, flow control valve, storage box, wheel hold down steel chain and tie down straps

Standard Features

  • High lift boom & wheel support capability
  • Foam filled tires for improved safety & reliability
  • Hold down chain & tie down straps for wheel assemblies
  • Parking brake
  • Swivel locks on rear casters for improved towing
  • Towbar with 3-inch lunette eye
  • Storage box for tie down hardware
  • Rugged tubular steel construction
  • Skydrol resistant paint (standard safety yellow)
  • 1-year standard warranty
  • Shipping on domestic skid

Specifications

  • Wheel Changer Rated Capacity: 700 lbs (318 kg)
  • Boom Capacity: 500 lbs (227 kg)
  • Unit Weight Including Brake Cradle: 500 lbs (227 kg)
  • Tire Range: 32" to 56" diameter
  • Overall Dimension: 56" W x 70" L x 38" H
  • Maximum Tow Speed: 5 mph (8 km/h)
  • Ground Clearance: 4" (102 mm)
  • Total lift: 26" (660 mm)

Main Gear Wheels with Brade Cradle (Available Separately)

  • A300, A310, B707, B727, B757, B767 - Brake Cradle - BC400P
  • A319, A320, A321, B717, B737 - Brake Cradle - BC400P
  • F70, F100 - Brake Cradle - BC300P
  • A330, A340, A350, A380, B747, B777, B787, DC10, MD11, L1011 - Brake Cradle - BC500P
  • DC8, DC9, MD80-90 - Brake Cradle - BC400P

Nose Gear Wheels with Brade Cradle (Available Separately)

  • A300, A310, B707, B727, B757, B767 - Brake Cradle - BC400P
  • A330, A340, A350, A380, B747, B777, B787, DC10, MD11, L1011 - Brake Cradle - BC500P
  • DC8 - Brake Cradle - BC400P
Alternate Models
17500S-2Manufacturer's Part Number
Compatible Aircraft*
AirbusA300, A310, A318, A319, A320, A321, A330-200, A330-300, A340-200, A340-300, A340-500, A340-600, A350, A380
Boeing707, 717, 727-100, 727-200, 737-100, 737-200, 737-300, 737-400, 737-500, 737-600, 737-700, 737-800, 737-900, 737-BBJ, 737-BBJ2, 747, 747-8, 757, 767, 777, 787
LockheedL-1011
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
