Columbus Jack 5004-55 50 Ton Rhino Axle Jack

Columbus Jack 5004-55
Columbus Jack 5004-55Columbus Jack 5004-55Columbus Jack 5004-55
Manufacturer: Columbus Jack
Part Number: 5004-55
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
65 Ton Axle Jack - Rhino - 4.5 inches up to 28.5 inches
95 Ton Axle Jack - Rhino - 4.5 inches up to 24 inches
50 Ton Axle Jack - 7 inches up to 22.5 inches
50 Ton Axle Jack - Alligator - 8.5 inches up to 24.25 inches
50 Ton Axle Jack - Fly-A-Way - 7 inches up to 22 inches

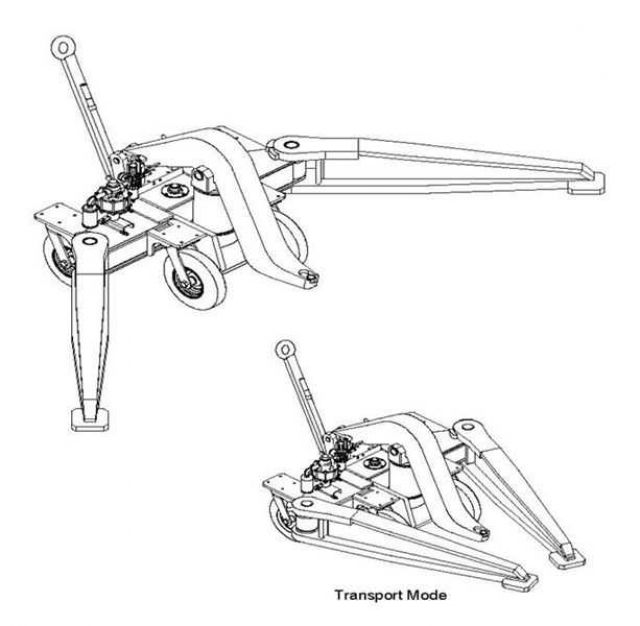

This Rhino Jack is designed for use with multiple flat tires where minimum clearance is available. With excellent mobility characteristics it is easily positioned under the aircraft. Mechanical safety lock nuts permit two or more wheels to be removed simultaneously. It is available with optional sling and crane assembly to remove wheels and brakes from axle.

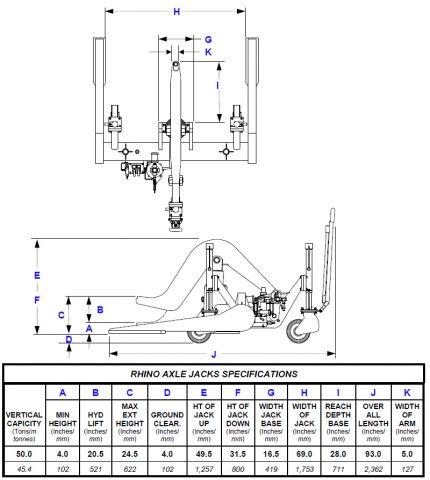

Specifications

  • Vertical Capacity: (tons / m tonnes) 50.0 / 45.4
  • Minimum Height: (inches / mm) 4.0 / 102
  • Hydraulic Lift: (inches / mm) 20.5 / 521
  • Maximum Extended Height: (inches / mm) 24.5 / 622
  • Net Weight: (lbs / kg) 3,875 / 1,796

Standard Features

  • 50 Ton Capacity
  • Dual Manual Hand Pump
  • Air Powered Pumping Unit
  • Mechanical Lock Nut
  • Single External Relief Valve
  • Tow Bar Assembly - Maximum Towing Speed 5 MPH
  • 8" Diameter Casters with Poly Tread
  • Skydrol Resistant Yellow Paint

Documentation

  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Written Warranty

Available Optional Equipment

  • 1038-4000 Wheel/Brake Crane and Sling Assembly

Jacking Applications

NLG
  • A300B, A300-600, A310 (KC310), A318, A319, A320, A321, B707 (E6 & KC135), B717, B727, B737 Classic, B737 NG, B757-200 / -300 (C-32), DC9 All Series, MD80 & MD90 All Series
MLG
  • A300B, A300-600, A310 (KC310), A318, A319, A320, A321, B707 (E6 & KC135), B717, B727, B737 Classic, B737 NG, B757-200 / -300 (C-32), DC9 All Series, MD80 & MD90 All Series
Compatible Aircraft*
AirbusA300, A310, A318, A319, A320, A321
Boeing707, 717, 727-100, 727-200, 737-300, 737-400, 737-500, 737-600, 737-700, 737-800, 737-900, 757
McDonnell DouglasDC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, MD-80
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight4000 lbs.
Pkg. 1 Dimensions86 in. x 96 in. x 45 in.
Pkg. 1 TypeCrate
Servicing

We service the 5004-55 and other items like it at our facility.

A few of the common services we offer for this item are:
• Replace Seal Kits
• Load Test Certificate
Parts

We sell parts for the 5004-55 and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

A few of the common parts we offer for this item are:
• Cylinder Seal Kit
• Pump Replacement Kit
• Hand Pump
• Pump Seal Kit
• Spacer Blocks
• Pump Handle
• Jack Pads / Adapters
Renting

We provide short-term and long-term rentals for the 5004-55. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 5004-55 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
