Columbus Jack 8398-012 65 Ton Rhino Axle Jack

Columbus Jack 8398-012
Columbus Jack 8398-012
Manufacturer: Columbus Jack
Part Number: 8398-012
Condition: New
✓ Worldwide shipping options available
✓ Manufacturer CofC always available at no cost after shipping
✓ Operating manuals available online for purchased equipment
Get Price & Order Now (it's quick & instant!)

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
50 Ton Axle Jack - Rhino - 4.0 inches up to 24.5 inches
95 Ton Axle Jack - Rhino - 4.5 inches up to 24 inches
65 Ton Axle Jack - Rhino - 4.5 inches up to 28.5 inches
65 Ton Axle Jack - Alligator - 10 inches up to 26 inches
95 Ton Axle Jack - Alligator - 10 inches up to 26 inches

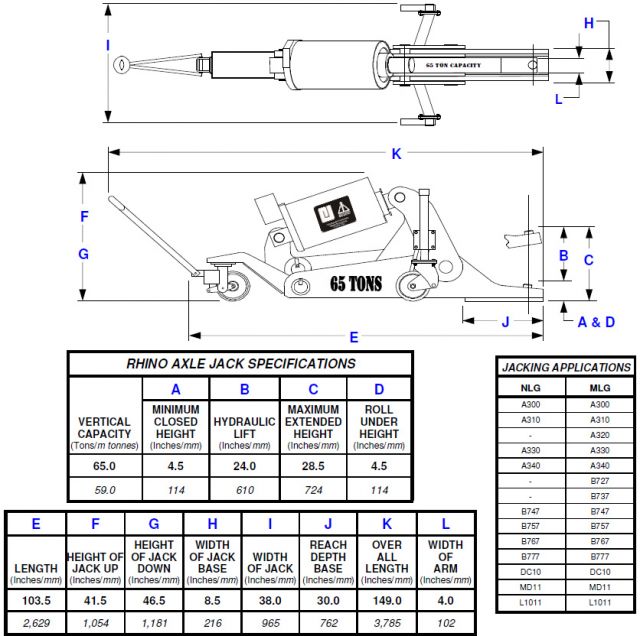

This Rhino Jack is designed for use with multiple flat tires where minimum clearance is available. With excellent mobility characteristics it is easily positioned under the aircraft. Mechanical safety lock nuts permit two or more wheels to be removed simultaneously. It is available with optional sling and crane assembly to remove wheels and brakes from axle.


  • Vertical Capacity: (tons / m tonnes) 65.0 / 59.0
  • Minimum Height: (inches / mm) 4.5 / 114
  • Hydraulic Lift: (inches / mm) 24.0 / 610
  • Maximum Extended Height: (inches / mm) 28.5 / 724
  • Net Weight: (lbs / kg) 3,100 / 1,406

Standard Features

  • 65 Ton Capacity
  • Manual Hand Pump
  • Air Powered Pumping Unit
  • Rapid Lifting Arm Extension To Jacking Point with No Load
  • Mechanical Lock Nut
  • Mechanical Jack Frame Lowering Devices on both Trailing Casters
  • Single External Relief Valve
  • Tow Bar Assembly - Maximum Towing Speed 3 MPH
  • 8" Diameter Casters with Poly Tread
  • Skydrol Resistant Yellow Paint


  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Written Warranty

Available Optional Equipment

  • 5923-D Wheel/Brake Sling Assembly
  • 5923-E Wheel/Brake Crane Assembly

Jacking Applications

  • A330-200 & -300 (KC330), A340-200 & -300, B747-200, -300, -400 & Freighters, B747-8, B767-200, -300 & -400, B787, DC10 & MD11 All Series & KC10, L1011
  • A330-200 & -300 (KC330), A340-200 & -300, B747-200, -300, -400 & Freighters, B767-200, -300 & -400, B787, DC10 & MD11 All Series & KC10, L1011
Compatible Aircraft*
AirbusA330-200, A330-300, A340-200, A340-300
Boeing747, 747-8, 767, 787
McDonnell DouglasDC-10, MD-11
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight3600 lbs.
Pkg. 1 Dimensions106 in. x 40 in. x 55 in.
Pkg. 1 TypeCrate

We service the 8398-012 and other items like it at our facility.

A few of the common services we offer for this item are:
• Replace Seal Kits
• Load Test Certificate

We sell parts for the 8398-012 and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

A few of the common parts we offer for this item are:
• Cylinder Seal Kit
• Pump Replacement Kit
• Hand Pump
• Pump Seal Kit
• Spacer Blocks
• Pump Handle
• Jack Pads / Adapters

We provide short-term and long-term rentals for the 8398-012. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 8398-012 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
