Tronair 5007-56FT – Columbus Jack 50-Ton Axle Jack
Create yours now for free.
Need a Quote?
The Columbus Jack 5007-56FT is a 50-Ton (100,000 lb) hydraulic aircraft axle jack engineered to lift and support one wheel/tire assembly of an aircraft at the axle during maintenance, tire changes, and landing gear servicing. CE-marked for compliance with European aviation safety standards. OEM-specified for Airbus A300, A310, A318 and others. Also approved for Boeing 707, 717 and others.
Standard Features
- Hand pump with built-in pressure relief valve
- Easy-access filler/breather cap that can be sealed to prevent spills
- Low-profile cylinder designed for minimal axle clearance requirements
- Hydraulic fluid: MIL-PRF-5606
- CE marked
- Durable powder-coat finish (Tronair Blue)
Technical Specifications
- Rated Capacity: 100,000 lbs (45359 kg)
- Operating Temperature: −4°F to 122°F (−20°C to 50°C)
- Pressure Relief Setting: 2,500 + 250/−0 PSIG (172.4 + 17.2/−0 bar)
- Hydraulic Fluid: MIL-PRF-5606
- Jack Pad: ¾" (2 cm) spherical radius cup
- Finish: Durable powder coat (Tronair Blue)
Safety Features
- Safety Lock Valve: Prevents the jack from lowering unintentionally during lifting operations. The jack must be manually released before descending.
- Pressure Relief Valve: Prevents overload during raising operations.
- Filler Cap Seal: Easy-access filler/breather cap can be sealed to prevent hydraulic fluid spills during transport and storage.
Aircraft Applications
The 5007-56FT is OEM-approved for the following aircraft types:
- Airbus: A300, A310, A318, A319, A320 and 1 more
- Boeing: 707, 717, 727-100, 727-200, 737-300 and 14 more
- McDonnell Douglas: MD-80
This list reflects aircraft for which the manufacturer has specifically approved this jack. Additional applications may be possible — always confirm jacking capacity, adapter requirements, and placement procedures with the aircraft maintenance manual before use.
Need your Tronair 5007-56FT 50-ton axle jack serviced, repaired, or load tested?
Pilot John is an authorized Columbus Jack (Tronair) distributor and service center — one of a select group of authorized partners in North America. Our pricing on Columbus Jack jacks is competitive: PJi prices have been verified lower than other major aviation supply retailers on comparable models. Every jack ships new from our North Carolina warehouse with Certificates of Conformance (CofC) and FAA Form 8130-3 documentation available at no additional cost. Need jack service, calibration, or repair? Pilot John handles that too as an authorized service center.
| Alternate Models | |
|---|---|
| 150D1100/-56 | Manufacturer's PN |
| General Information | |
|---|---|
| Part # | 5007-56FT |
| Manufacturer | Columbus Jack |
| Manual 1 | View Columbus Jack 5007-56FT (150D1100-56) Manual |
| Shipping Information | |
|---|---|
| Freight NMFC | 186600 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| 120A1643 | SOFT KIT, 150D1100, 150D1100-5 |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Airbus | A300 , A310 , A318 , A319 , A320 , A321 |
| Boeing | 707 , 717 , 727-100 , 727-200 , 737-300 , 737-400 , 737-500 , 737-600 , 737-700 , 737-800 , 737-900 , 757 , DC-9 Series 10 , DC-9 Series 20 , DC-9 Series 30 , DC-9 Series 33 , DC-9 Series 40 , DC-9 Series 50 , MD-80 |
| McDonnell Douglas | MD-80 |
PRODUCT REVIEWS
QUESTIONS & ANSWERS
The Columbus Jack 5007-56FT Fly-A-Way Axle Jack is designed to support tire, wheel, and brake replacement tasks on both main and nose landing gears of most narrow- and wide-body aircraft. With a 50-ton (45.4 metric tons) lifting capacity, it meets or exceeds OEM jacking specifications. Its lightweight yet durable build makes it ideal for air transport to remote maintenance locations.
The jack features both manual hand-pump and air-powered pumping options, giving users flexibility in operation depending on available equipment. The manual system ensures continued use in field conditions without external power, while the pneumatic pump saves time during heavy-lift procedures. This dual-pump setup makes it one of the most adaptable axle jacks in its class.
The Evac-U-Tract™ Air-Assisted Ram Retraction System allows for smooth, effortless lowering of the ram after a lift is complete. This feature uses air pressure to retract the piston into the cylinder automatically, reducing operator fatigue and speeding up jack removal. It also prevents hydraulic strain, enhancing the unit’s longevity and safety in regular maintenance use.
Weighing approximately 158 lbs (72 kg) and featuring a mechanical positioning handle with a single roller, the 5007-56FT is easy to maneuver beneath aircraft jacking points. The design prioritizes compactness for air transport, making it a true “fly-away” tool for maintenance teams working in varied environments.

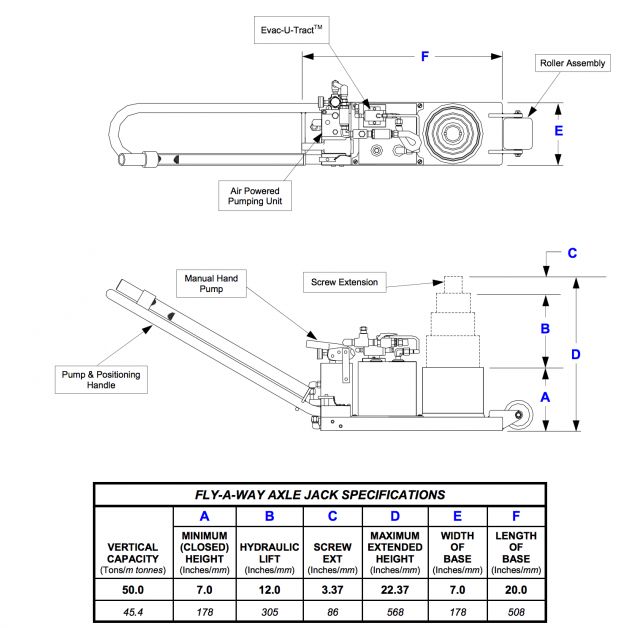

The 5007-56FT features a base width of 7” (17.8 cm) and a base length of 20” (50.8 cm). This compact yet stable footprint provides exceptional balance under high loads while allowing easy placement under low-clearance gear assemblies.
The jack is finished in Skydrol-resistant yellow paint, protecting it from hydraulic fluid exposure, corrosion, and environmental wear. The steel construction ensures strength while maintaining a manageable weight for field operations. Its corrosion-resistant coating makes it suitable for long-term service in both hangar and outdoor environments.
Each Columbus Jack 5007-56FT comes with an Operation and Maintenance Manual, a Certificate of Conformance (CofC), and a Load Test Report. These documents confirm compliance with ISO 9001:2008 quality standards and provide detailed procedures for use, inspection, and troubleshooting. A 12-month factory warranty is also included with new units.
Routine maintenance includes inspecting hydraulic seals, hoses, and fittings for leaks or damage. Columbus Jack recommends using aviation-grade hydraulic fluid and cleaning the unit after exposure to contaminants. Regular inspection ensures optimal performance and prevents seal degradation caused by prolonged exposure to Skydrol or dirt.
This model is compatible with many narrow- and wide-body commercial aircraft, but users should always verify compatibility with their Aircraft Maintenance Manual (AMM). It’s primarily intended for use on main and nose gear service points and not for structural lifting applications. For aircraft requiring greater capacity, Columbus Jack offers larger tripod and axle jack models.
Before transport, the jack should be fully retracted and secured within its 29” × 12” × 20” shipping crate, which totals 4 cubic feet of space. Always release pressure from the hydraulic system and cover exposed fittings to prevent contamination. Proper storage in a dry, temperature-controlled area will preserve seals and paint integrity.
Columbus Jack provides a 12-month limited warranty covering defects in materials and workmanship under normal operating conditions. The company’s global service network, which includes PJi, offers parts replacement, recalibration, and overhaul support. This warranty underscores Columbus Jack’s commitment to reliability and long-term performance for aviation ground support tools.
