Malabar 50P9AR 50 Ton Aircraft Axle Jack - Auto-Retract

Malabar 50P9AR
Malabar 50P9ARMalabar 50P9AR
Manufacturer: Malabar
Part Number: 50P9AR
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
50 Ton Axle Jack - Alligator - 8.5 inches up to 24.25 inches
65 Ton Auto-Retract Axle Jack - 10.25 to 26 inches
12 Ton Axle Jack - 6 to 17 inches
50 Ton Axle Jack - 7 inches up to 22.5 inches
45 Ton Axle Jack - 7 to 22 inches

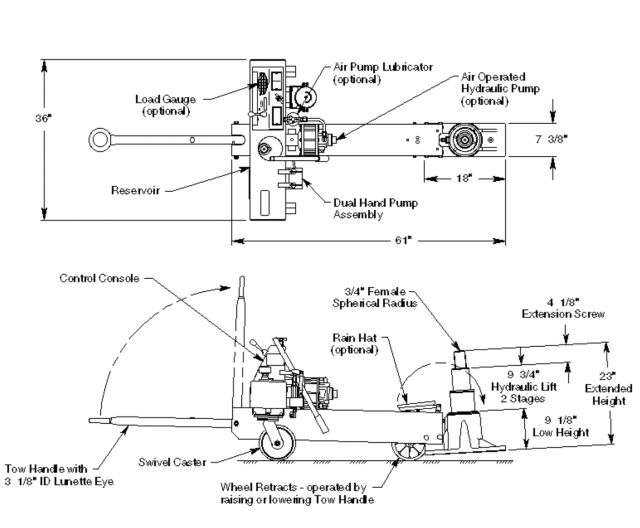

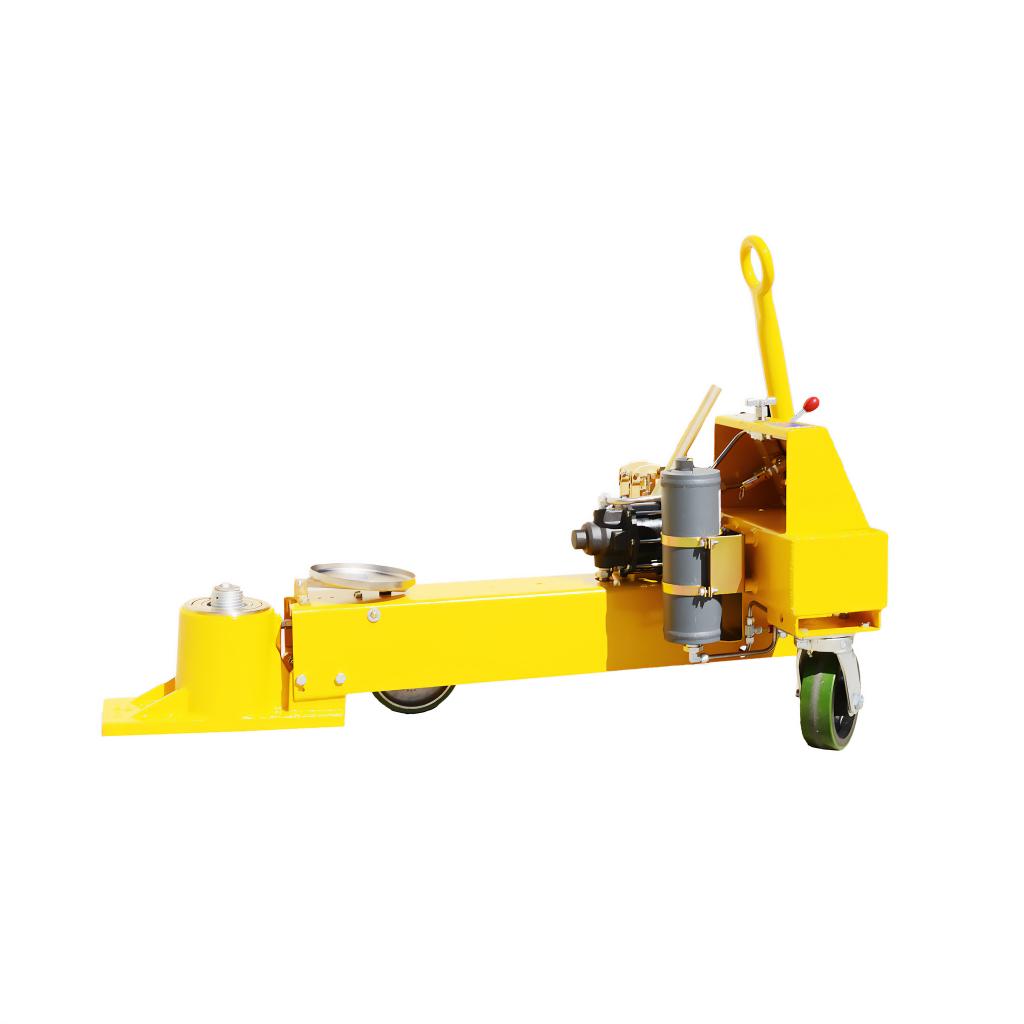

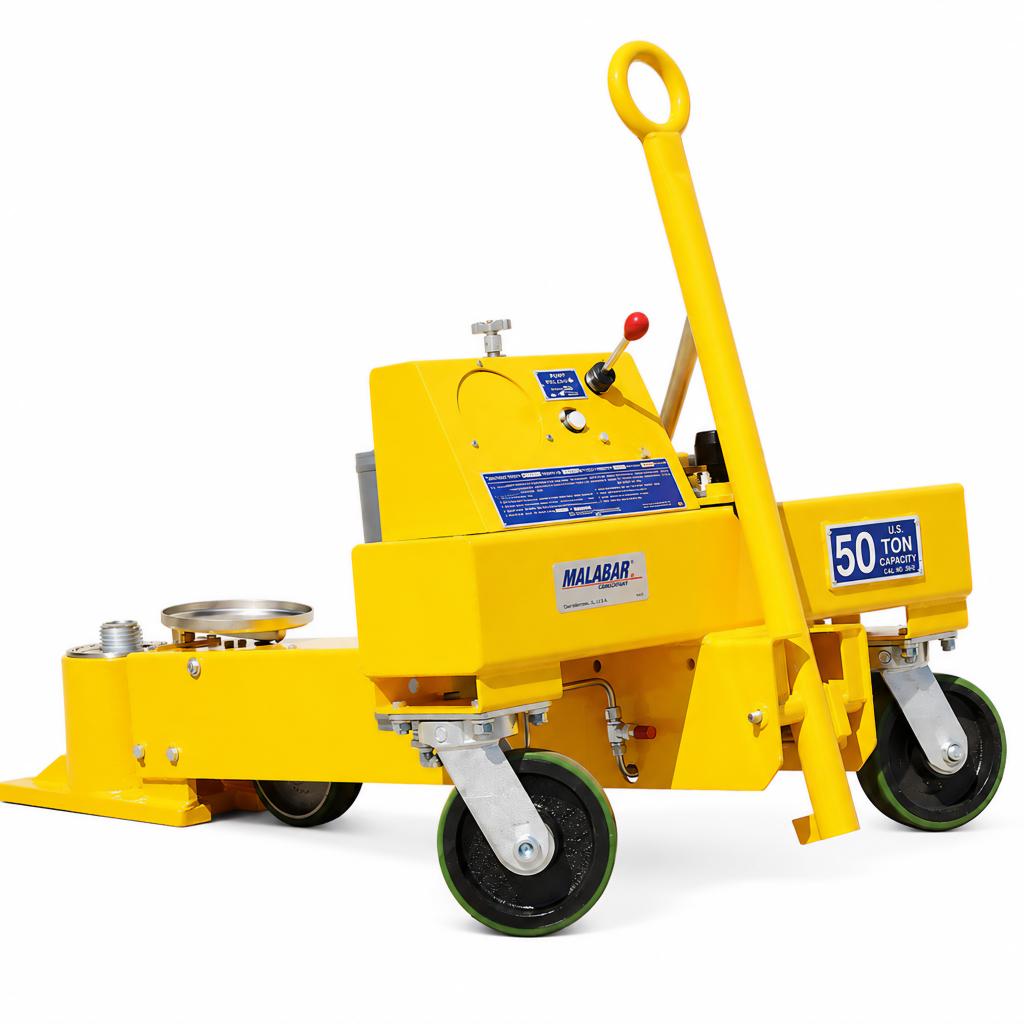

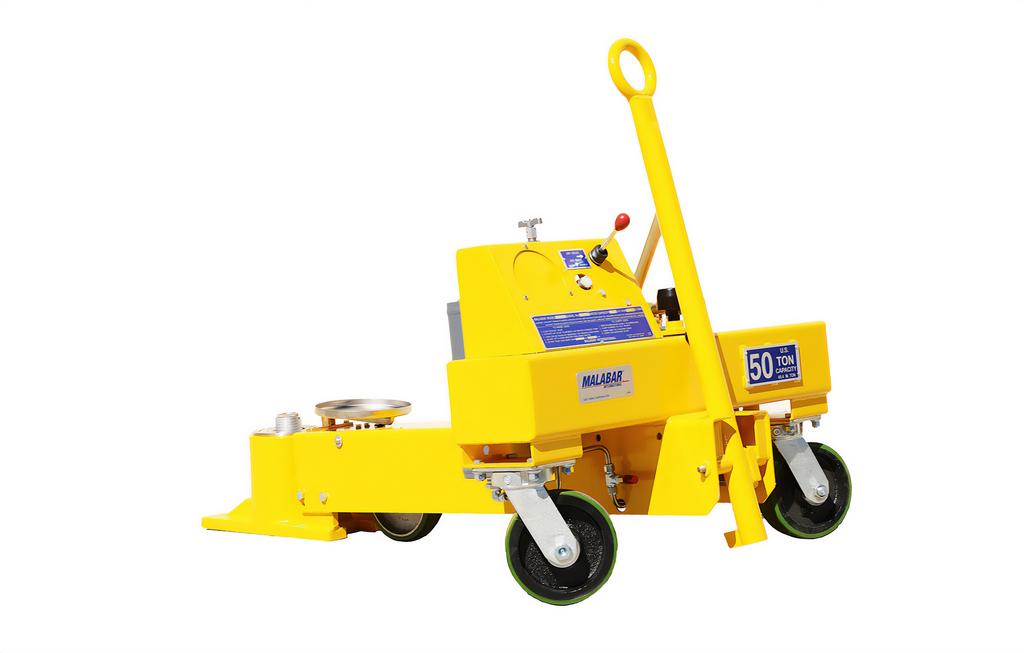

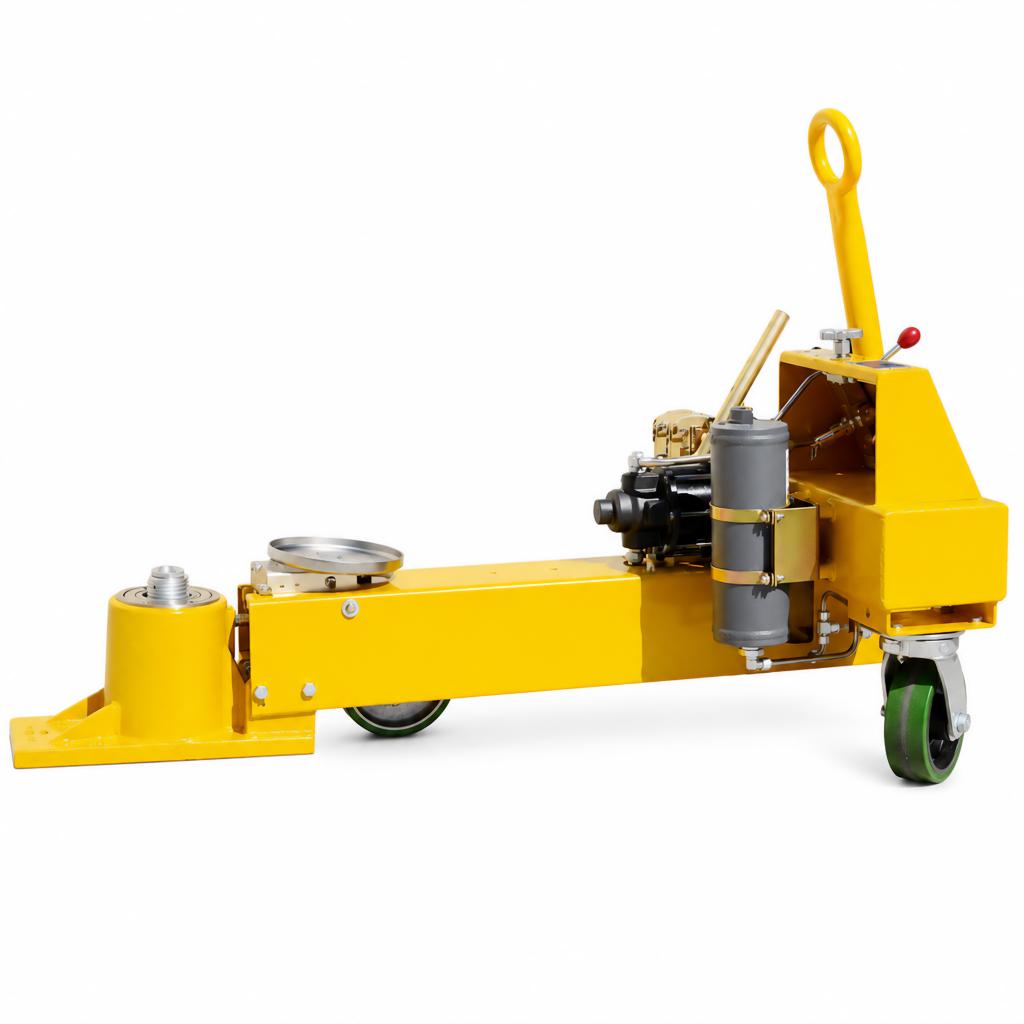

The Malabar 50P9AR Auto-Retract axle jack is a 50-ton capacity, two stage hydraulic jack designed primarily for use in jacking the main and/or nose landing gear of various aircraft. The jack consists of a two-stage cylinder assembly, frame/reservoir assembly, valve block assembly, hand pump assembly, and control console.

Standard Features

  • Double acting auto-retract cylinder assembly incorporates a fluid bath for sealing surfaces to minimize corrosion and extend seal life. It also includes skydrol resistant seals and bronze upper bearings for longer service life
  • Auto-retract plungers remain fully retracted while jack is being towed or in storage to protect against corrosion, contaminants and accidental damage
  • Single valve control for simple and easy aircraft raising, lowering and auto-retract. Jack retracts to full retracted position automatically which provides for easy removal from under aircraft jack point after each operation
  • Control console with all controls conveniently mounted for ease of operation
  • 8" diameter heavy duty swivel casters and retractable front wheel with skydrol resistant tread. The tow handle actuated front wheel provides improved ground clearance for towing
  • Hydraulic fuse at the cylinder assembly prevents lowering of load in the event of a fluid line failure
  • Two manual hand pumps (one high pressure, low volume and one low pressure, high volume
  • Oil filter cap with filtered air vent and dipstick
  • Hard chrome plated cylinder and plunger bores
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 1 year warranty
  • Fully enclosed shipping container with skid

Specifications

  • Rated Capacity: 50 tons (45.4 m. tons)
  • Side Load: 15% of vertical load
  • Low Height: 9.13 inches (232 mm)
  • Hydraulic Lift: 9.75 inches (248 mm)
  • Extension Screw: 4.13 inches (105 mm)
  • Total Extended Height: 23 inches (584 mm)
  • Base Width: 7.38 inches (187 mm)
  • Cylinder Diameter: 7.38 inches (187 mm)
  • Oil Pressure at Rated Capacity: 6660 psig (468 kg/sq cm)
  • Safety Pop-off Valve set at: 53 tons (48.1 m. tons)
  • Proof Load: 75 tons (68.0 m. tons)
  • Floor Loading at Rated Capacity: 830 psi (58 kg/sq cm)
  • Reservoir Capacity: 5.5 gallons (20.8 liters
  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Maximum Towing Speed: 5 mph (8 km/h)
  • Approximate Jack Net Weight: 480 lbs (204 kg)

Nose Landing Gear Applications

A319, A320, A321, B717, B727, B737 B757, DC8, DC9, F100, MD80, MD90

Main Landing Gear Applications

A319, A320, A321, B727, B737-600 THRU -900, B757
Alternate Models
50P9ARPKRepair Kit
882100-1No Options Installed
882100-6AP - Air Pump RH - Rain Hat LU - Lubricator
Compatible Aircraft*
AirbusA319, A320, A321
Boeing717, 727-100, 727-200, 737-600, 737-700, 737-800, 737-900, 757
McDonnell DouglasMD-80
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight540 lbs.
Pkg. 1 Dimensions70 in. x 45 in. x 34 in.
Pkg. 1 TypeCrate
Freight Class70
Freight NMFC184990
Servicing

We service the 50P9AR and other items like it at our facility.

A few of the common services we offer for this item are:
• Replace Seal Kits
• Load Test Certificate
Parts

We sell parts for the 50P9AR and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

A few of the common parts we offer for this item are:
• Cylinder Seal Kit
• Pump Replacement Kit
• Hand Pump
• Pump Seal Kit
• Spacer Blocks
• Pump Handle
• Jack Pads / Adapters
Renting

We provide short-term and long-term rentals for the 50P9AR. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 50P9AR (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
