Columbus Jack 9504-55 95 Ton Rhino Axle Jack

Item Superseded
This item has been discontinued or is no longer available.

It has been replaced by Columbus Jack 1146-1100 (Qty 1)

CofC and 8130 available at no cost
Worldwide shipping available
Ask Our Aviation Specialists
Live Chat | +1.252.585.4553 | Email

Need a Quote?

Use this form to get a quote by email today.
First Name:
Last Name:
Email:
Company Name: (optional)
Questions/Comments: (optional)

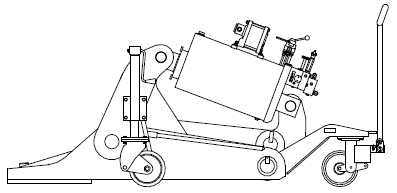

This Rhino Jack is designed for use with multiple flat tires where minimum clearance is available. With excellent mobility characteristics it is easily positioned under the aircraft. Mechanical safety lock nuts permit two or more wheels to be removed simultaneously. It is available with optional sling and crane assembly to remove wheels and brakes from axle.

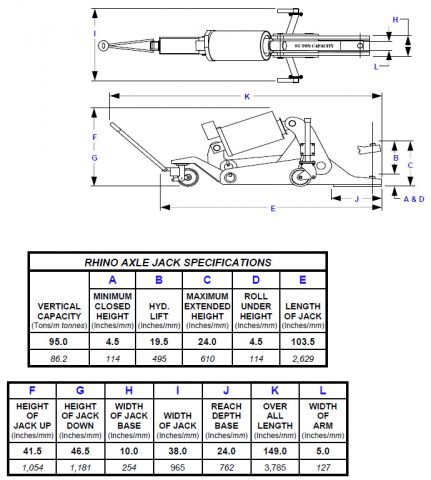

Specifications

  • Vertical Capacity: (tons / m tonnes) 95 / 86.2
  • Minimum Height: (inches / mm) 4.5 / 114
  • Hydraulic Lift: (inches / mm) 19.5 / 495
  • Maximum Extended Height: (inches / mm) 24.0 / 610
  • Net Weight: (lbs / kg) 5,000 / 2,495

Standard Features

  • 95 Ton Capacity
  • Manual Hand Pump
  • Air Powered Pumping Unit
  • Rapid Lifting Arm Extension To Jacking Point with No Load
  • Mechanical Jack Frame Lowering Devices on both Trailing Casters
  • Single External Relief Valve
  • Tow Bar Assembly - Maximum Towing Speed 3 MPH
  • 8" Diameter Casters with Poly Tread
  • Skydrol Resistant Yellow Paint

Documentation

  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Written Warranty

Available Optional Equipment

  • 5923-D Wheel/Brake Sling Assembly
  • 5923-E Wheel/Brake Crane Assembly

Jacking Applications

NLG
  • A340-500 & -600, B777 All Series
MLG
  • A340-500 & -600, B747-8, B777 All Series
General Information
Part #9504-55
ManufacturerColumbus Jack
