C1 @ -18°C (0°F) = 4.0 Ah
C1 @ -30°C (-22°F) = 3.0 Ah
Avionics Battery for lighting, standby, emergency power. Protects and extends the life of other avionics. Concorde"s Emergency Batteries float directly on the DC buss with no need for a dedicated charger. This results in a high inrush current which extends battery life with fast recovery time from discharge. With the battery floating directly on the buss, transient spikes in the DC power are absorbed. These batteries are self regulating on charge and will take only the current required to maintain it at full charge.
Recombinant Gas - The RG Series are low resistance, valve regulated lead acid (VRLA) batteries.
| General Information | |
|---|---|

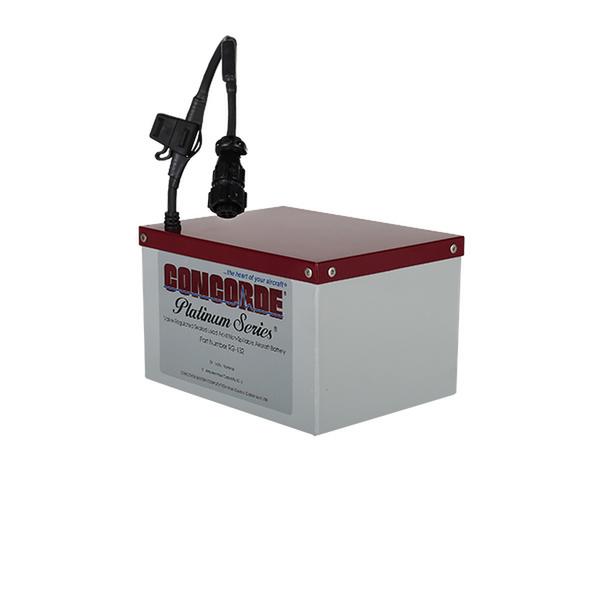

| Part # | RG-132 |
| Manufacturer | Concorde |
| MSDS 1 | View Safety Data Sheet |
| Shipping Information | |
|---|---|
| Schedule B | 8507200090 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| C1 Capacity | 6 Ah |
| CCA @ 32°F | 0 |
| Height | 8.1 in |
| IPP -18° C | 0 |
| IPP -30° C | 0 |
| IPP 23° C | 0 |
| IPR -18° C | 0 |
| IPR -30° C | 0 |
| IPR 23° C | 0 |
| Length | 4.45 in |
| Volts | 24 Volt |
| Weight | 14.5 lb / 6.6 kg |
| Width | 7.29 in |
Customers also viewed
24" Aircraft Wheel Chocks, Black with Orange Stripe
Diesel Aircraft Tug – 12,000 lbs. DBP, Tier 4F Diesel Engine, AWD Standard
H37.5x12.0R19
ATR Complete Air Data Accessories Kit
Super-capacity 34Ah VRLA for Cessna 182/206, Beechcraft Bonanza, and Mooney. FAA-PMA certified, 18-month first inspection interval.
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Piper | Archer , Seminole |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
