The Future is Here for Load Banks - Dekal Load Banks
Your new load bank starts here with us. View the complete line of analog 400 HZ load banks.
Advantages of 400 HZ Analog Dekal Load Banks
- Simple operation suitable for non-trained operators
- Silent operations <70 dB(A) at the distance of 7m / 23Ft
- Suitable for workshop and/or airside operation
- Environmental operating temperature from -20 C to 55 C / -4 F to 122 F
- Transport casing with pull up handle as standard for each load bank
- Triple thermal protection - extremely resistant to high temperature
- Cant protection - load bank works only in horizontal position
- Phase detection - load bank works only if all ABC phases are available
- Phase rotation indicator - phase sequence of three-phase voltages
- Fine regulation as standard for all AC - 400 Hz load banks
- Aluminum housing and non-corrosive parts
- High component quality control by manufacturer
- High reliability - effective standardization process
- Cable pin jacks - unique user friendly safety feature for external voltage test
- Spare parts availability and accurate on-time deliveries
- Short worldwide delivery period with tracking feature
- 2 years full warranty with extension option for all DEKAL load banks CE certification - health, safety, and environmental protection standards
- Standards & requirements according to ISO 6858, DFS 400, ARP 5015
- Classification CE marking, DIN, VDE, IEC, IP 21 protection rate level

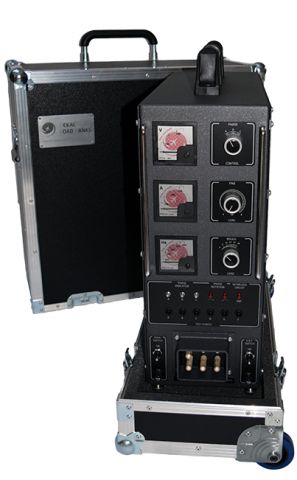

ALB-120AP - 120 kVA Analog Gauges
- Voltage * Frequency: 115/200V AC +/- 10% * 400 HZ +/- 10%
- Load / Lower (kW / kVA cos=1): 0-120 kW +/- 5%
- Fine Adjustment - Potentiometer: 0 to 8 kW
- Rate Switch Regular Load Steps +/- 5%: 8-16 kW, 16-24 kW, 24-32 kW, 32-40 kW, 40-48 kW, 48-56 kW, 56-64 kW, 64-72 kW, 72-80 kW, 80-88 kW, 88-96 kW, 96-104 kW, 104-112 kW, 112-120 kW

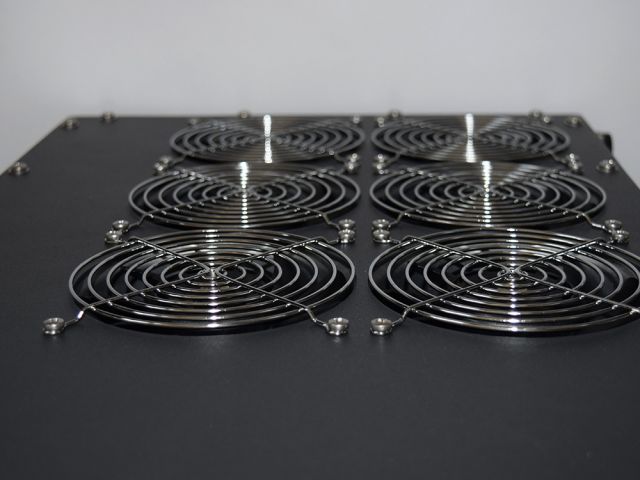

- Force Air Cooling: 88.20 m3/min - 3120 CFM
- Load Bank Size: 600x230x630 mm - 33 kg / 23.6x9.05x24.8 - 73 lbs
- Transport Casing: 710x290x860 mm - 19 kg / 27.9x11.4x33.9 - 42 lbs
- Load Bank Painting / Transport Casing: Powder Coating Fine Structure 71319 IGP - Swiss Quality / High Grade Aluminum
Standard Specs on All Units

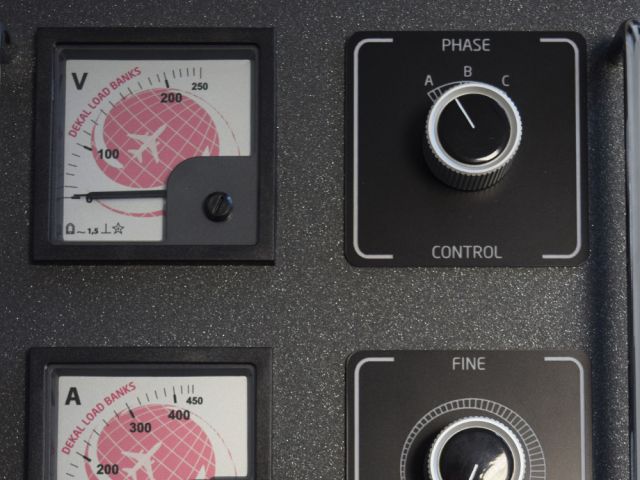

- Analog Volt Meter: Volt Meter - Moving Iron Class 1.5
- Analog Amp Peter: Amp Met Amp Meter - Moving Iron Class 1.5
- Analog Frequency Meter: Frequency Meter - Moving Coil Class 0.5

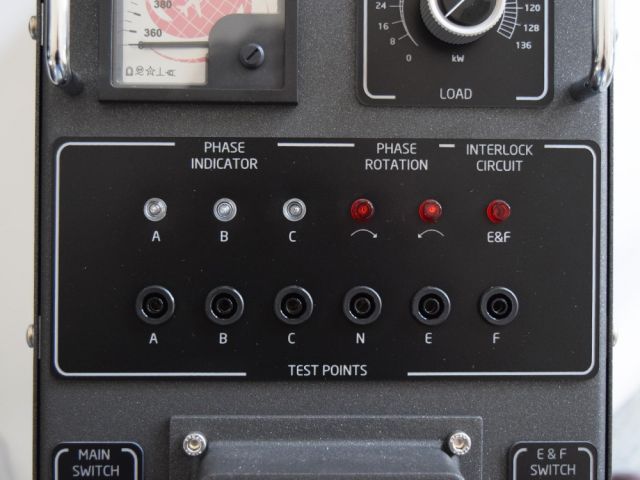

- Light Indication: Phase Indication, Phase Rotation, Interlock Circuit
- GPU Testing Procedure: Proposal Procedure: Load Raising from 0-100% 30 Seconds; Hold at 100% 5 minutes, Load Decrease from 100%-0 10 Minutes.
- Engine Decarbonising: Proposal Procedure : Load Raising from 0-100% 30 Seconds; Hold at 100% 45 minutes, Load Decrease from 100%-0 15 Minutes.
Video Example
| Alternate Models | |
|---|---|
| L-120 | Cannon Load Bank Model |
| General Information | |
|---|---|
| Part # | ALB-120AP |
| Manufacturer | Dekal |
| Shipping Information | |
|---|---|
| Shipping Weight | 133 lbs. |
| Shipping Dimensions | 35 x 30 x 20 in. |
| Freight NMFC | 133300 |
| HTS | 8516808000 |
Customers also viewed
2-Gallon Engine Oil Service Unit – 23699 & 87257 Fluids
40" to 78", CE-Marked, Aft Fuselage
26" to 50", CE-Marked
36" to 70", CE-Marked, Main Landing Gear
Aircraft Wheel & Brake Dolly
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Airbus | A320 |
| Boeing | 234 Chinook , 717 , 737-100 , 737-200 , 737-300 , 737-400 , 737-500 , 737-600 , 737-700 , 737-800 , 737-900 , 737-BBJ , 737-BBJ2 , DC-9 Series 10 , DC-9 Series 20 , DC-9 Series 30 , DC-9 Series 33 , DC-9 Series 40 , DC-9 Series 50 , MD-80 , P-8 Poseidon |
| Bombardier | Challenger 600 , Challenger 601 , Challenger 604 , Challenger 850 , CRJ100 , CRJ1000 , CRJ200 , CRJ700 , CRJ900 , Global 5000 , Global Express |
| Embraer | ERJ-170 , ERJ-175 , ERJ-190 , ERJ-195 , Lineage 1000 |
| Fokker | 28 , 50 , 70 |
| Gulfstream | G350 , G450 , G500 , G550 , G650 , II , III , IV , IVSP , V , VSP |
| Lockheed | C-130 |
| McDonnell Douglas | DC-10 , DC-9 Series 20 , DC-9 Series 30 , DC-9 Series 33 , DC-9 Series 50 , MD-80 |
| Saab | 2000 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
