140 kVA AC Analog Load Bank - Dekal ALB-140AP

The Future is Here for Load Banks - Dekal Load Banks

Your new load bank starts here with us. View the complete line of analog 400 HZ load banks.

Advantages of 400 HZ Analog Dekal Load Banks

• Simple operation suitable for non-trained operators
• Silent operations <70 dB(A) at the distance of 7m / 23Ft
• Suitable for workshop and/or airside operation
• Environmental operating temperature from -20 C to 55 C / -4 F to 122 F

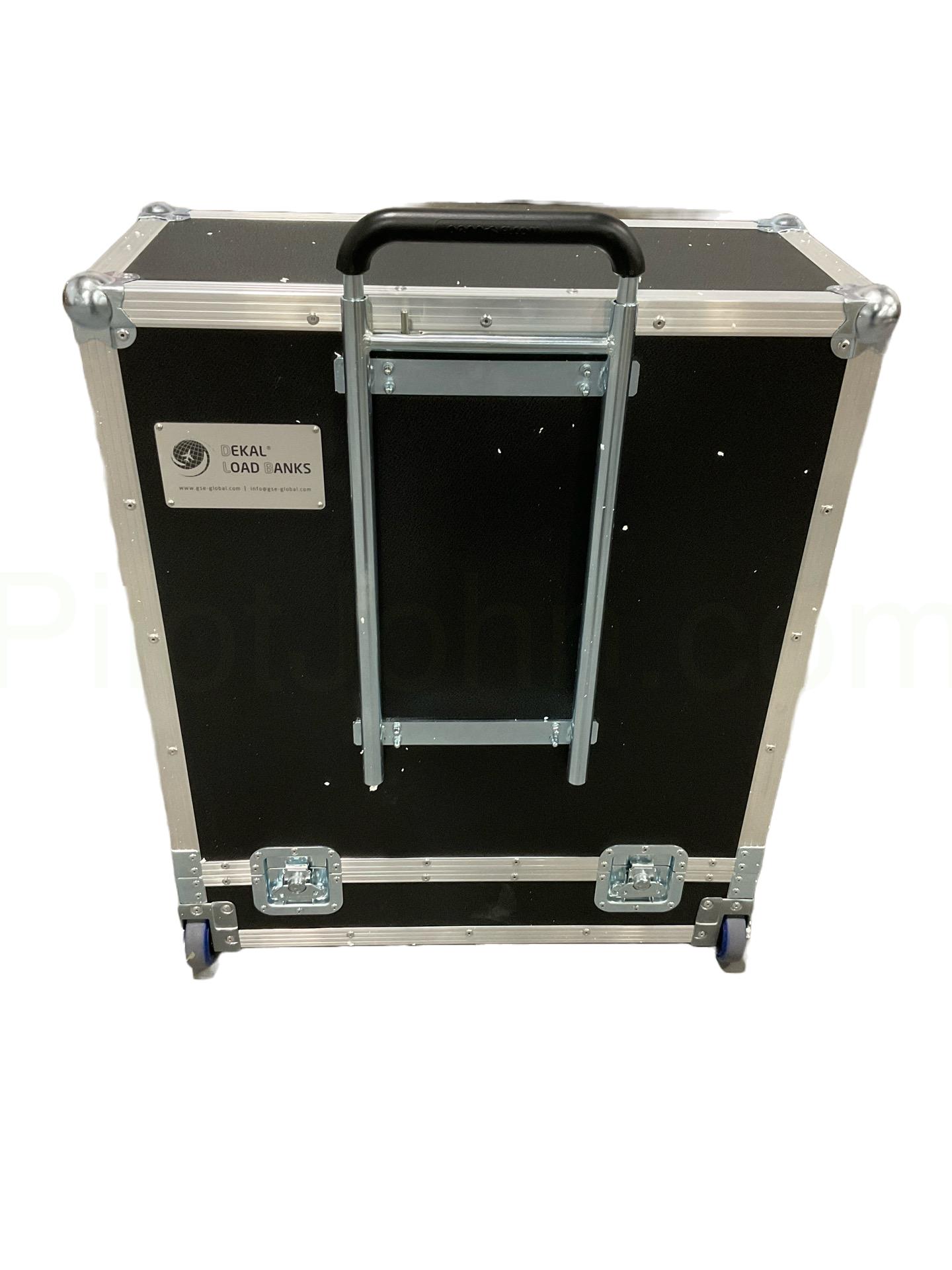

• Transport casing with pull up handle as standard for each load bank
• Triple thermal protection - extremely resistant to high temperature
• Cant protection - load bank works only in horizontal position
• Phase detection - load bank works only if all ABC phases are available
• Phase rotation indicator - phase sequence of three-phase voltages
• Fine regulation as standard for all AC - 400 Hz load banks
• Aluminum housing and non-corrosive parts
• High component quality control by manufacturer
• High reliability - effective standardization process
• Cable pin jacks - unique user friendly safety feature for external voltage test
• Spare parts availability and accurate on-time deliveries
• Short worldwide delivery period with tracking feature
• 2 years full warranty with extension option for all DEKAL load banks CE certification - health, safety, and environmental protection standards
• Standards & requirements according to ISO 6858, DFS 400, ARP 5015
• Classification CE marking, DIN, VDE, IEC, IP 21 protection rate level

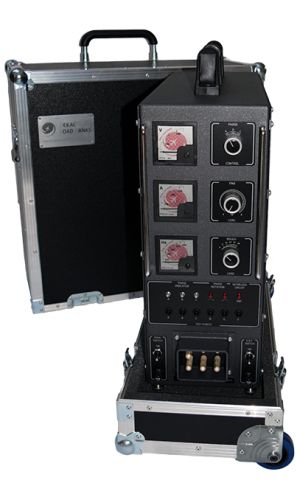

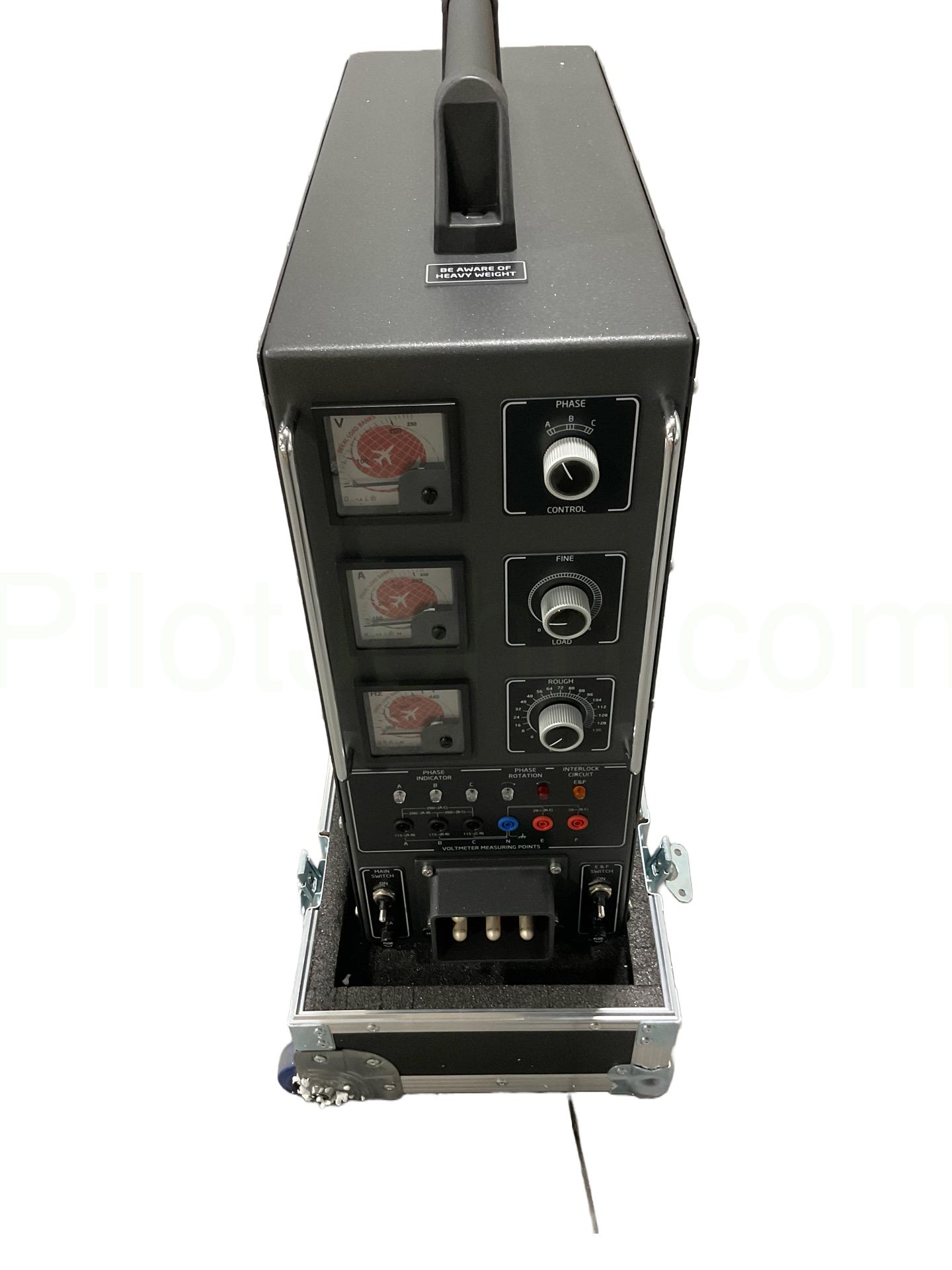

ALB-140AP - 140 kVA Analog Gauges

• Voltage * Frequency: 115/200V AC +/- 10% * 400 HZ +/- 10%
• Load / Lower (kW / kVA cos=1): 0-144 kW +/- 5%

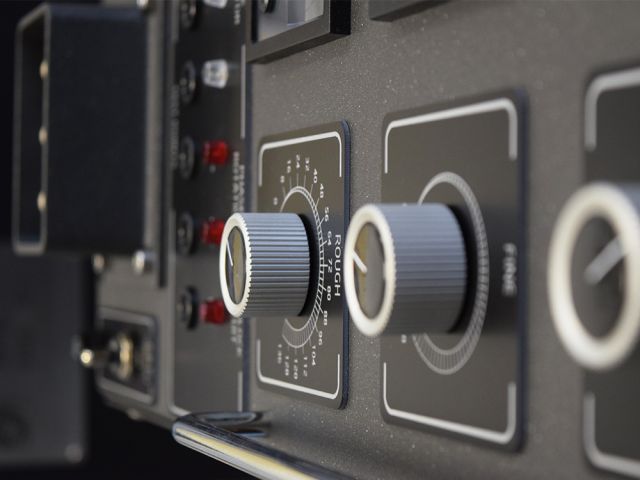

• Fine Adjustment - Potentiometer: 0 to 8 kW
• Rate Switch Regular Load Steps +/- 5%: 8-16 kW, 16-24 kW, 24-32 kW, 32-40 kW, 40-48 kW, 48-56 kW, 56-64 kW, 64-72 kW, 72-80 kW, 80-88 kW, 88-96 kW, 96-104 kW, 104-112 kW, 112-120 kW, 128-136 kW, 136-144 kW

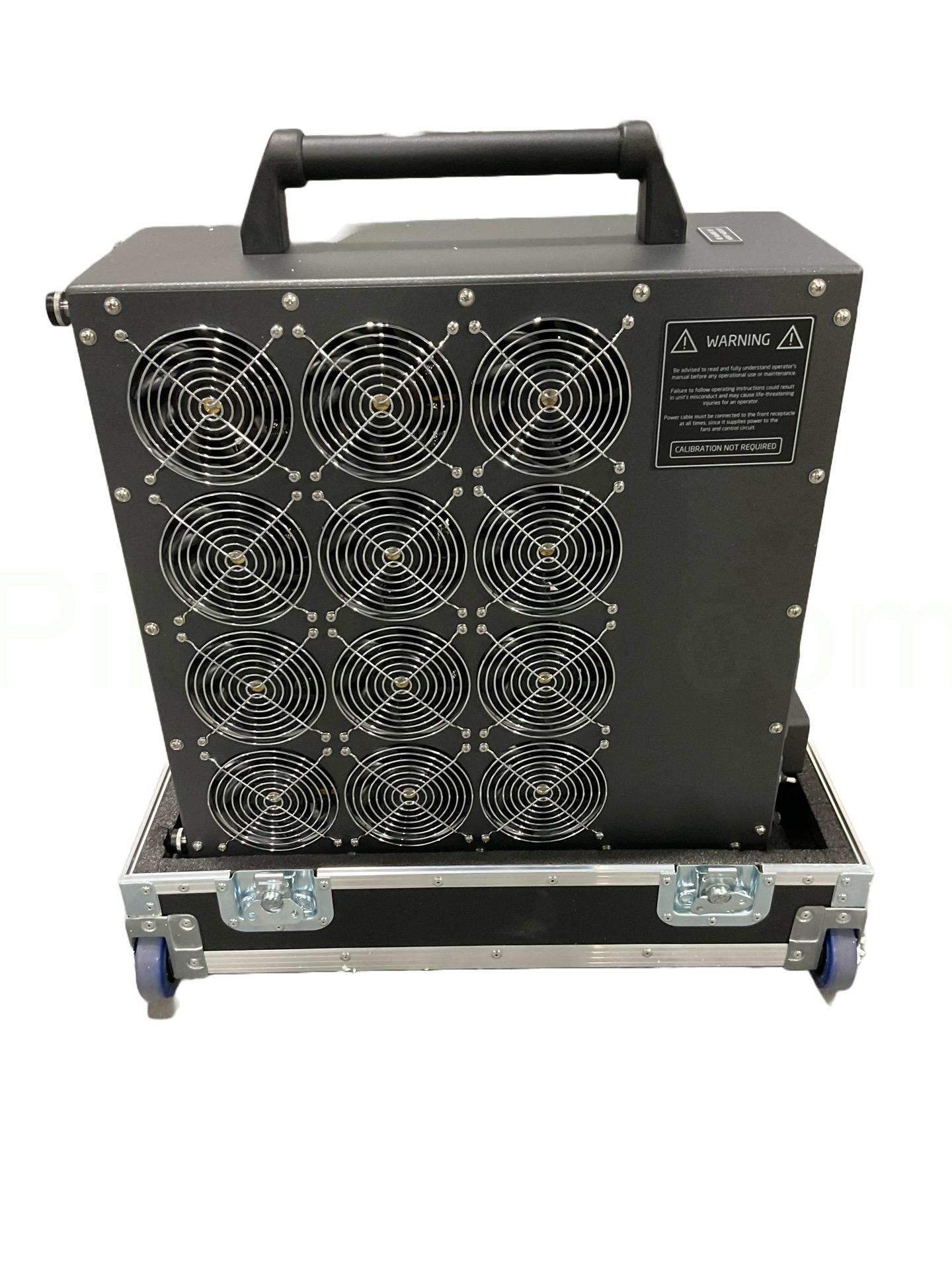

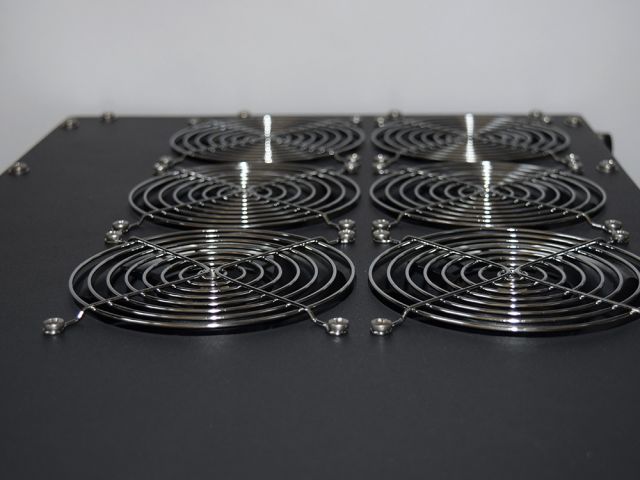

• Force Air Cooling: 88.20 m3/min - 3120 CFM

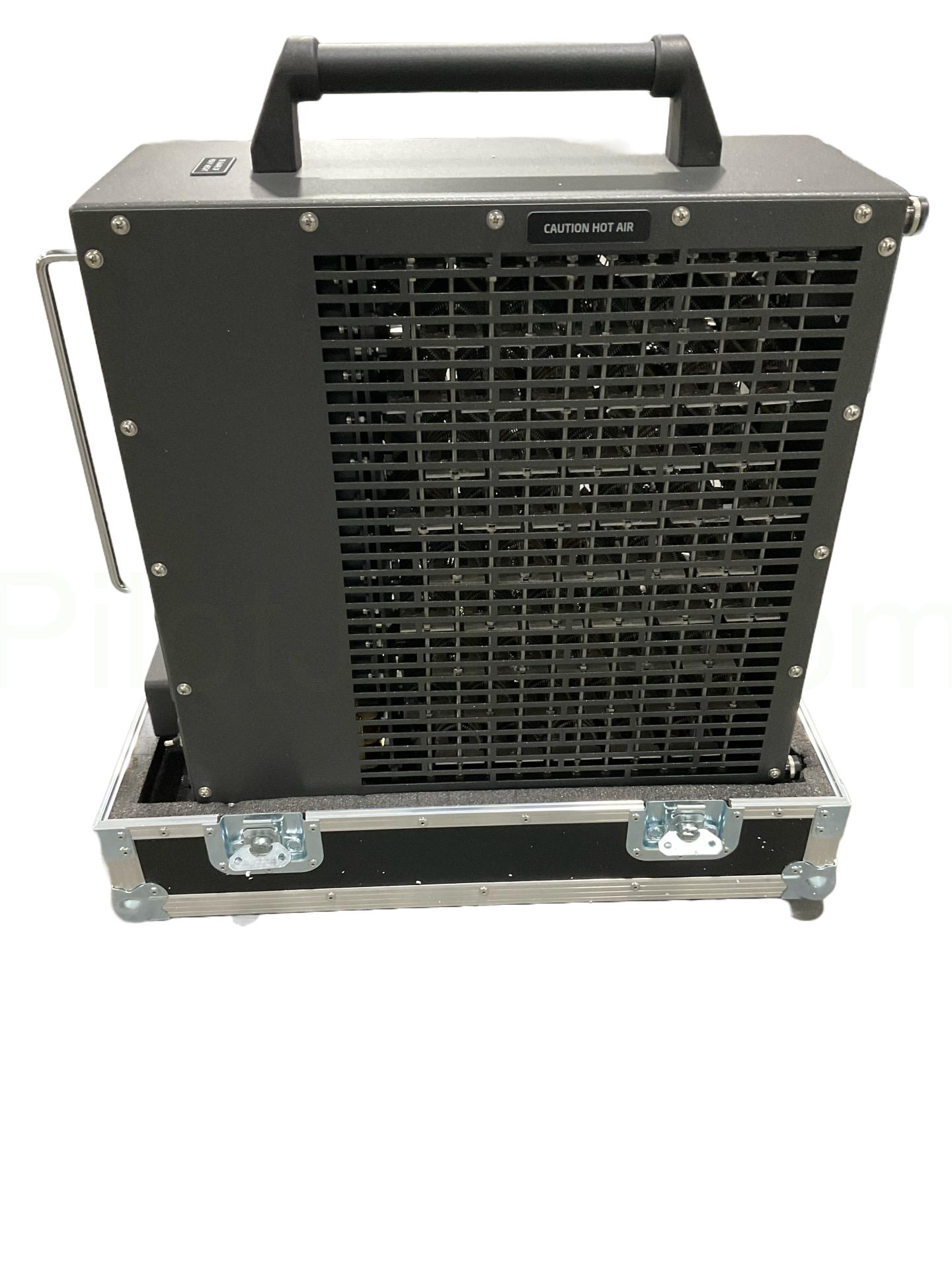

• Load Bank Size: 600x230x630 mm - 35 kg / 23.6x9.05x24.8 - 77 lbs

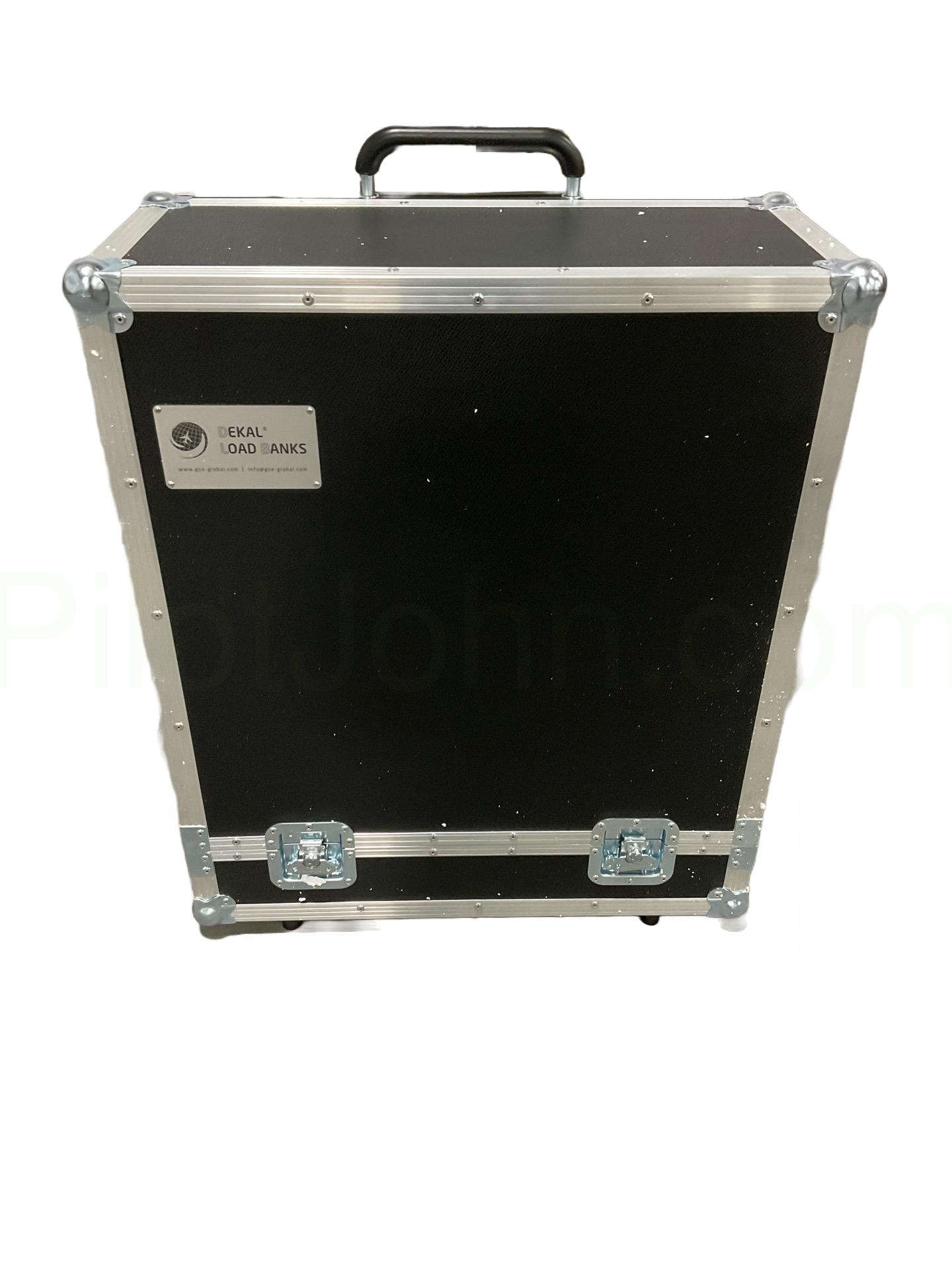

• Transport Casing: 710x290x860 mm - 19 kg / 27.9x11.4x33.9 - 42 lbs
• Load Bank Painting / Transport Casing: Powder Coating Fine Structure 71319 IGP - Swiss Quality / High Grade Aluminum

Standard Specs on All Units

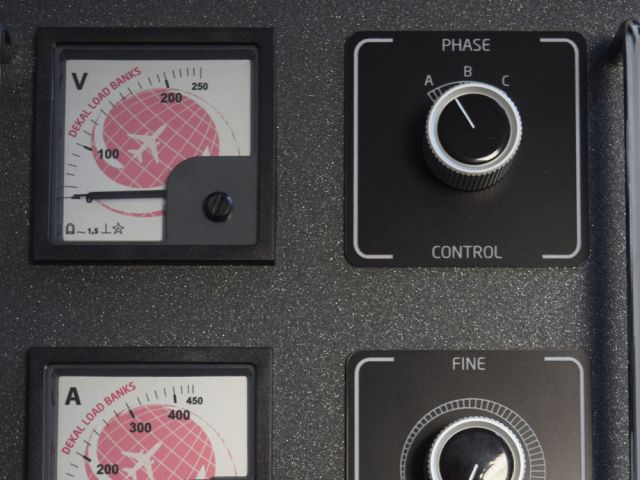

• Analog Volt Meter: Volt Meter - Moving Iron Class 1.5
• Analog Amp Peter: Amp Met Amp Meter - Moving Iron Class 1.5
• Analog Frequency Meter: Frequency Meter - Moving Coil Class 0.5

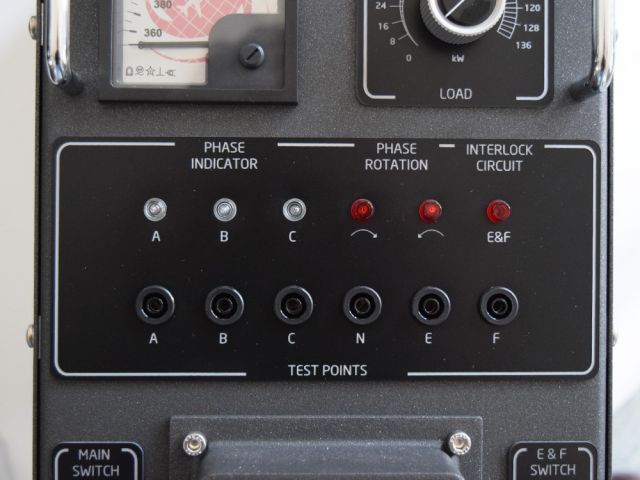

• Light Indication: Phase Indication, Phase Rotation, Interlock Circuit
• GPU Testing Procedure: Proposal Procedure: Load Raising from 0-100% 30 Seconds; Hold at 100% 5 minutes, Load Decrease from 100%-0 10 Minutes.
• Engine Decarbonising: Proposal Procedure
: Load Raising from 0-100% 30 Seconds; Hold at 100% 45 minutes, Load Decrease from 100%-0 15 Minutes.
