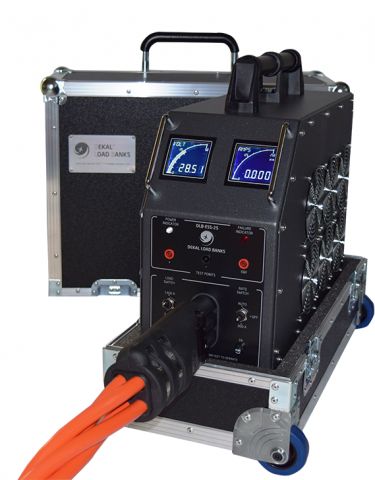

28V DC Digital Load Bank - 1500 Amp - Dekal DLB-ESS-15DP

Dekal DLB-ESS-15DP
Dekal DLB-ESS-15DPDekal DLB-ESS-15DPDekal DLB-ESS-15DP
Manufacturer: Dekal
Part Number: DLB-ESS-15DP
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
28V DC - 2500 Amp - Digital Gauges
26V DC - 105 Amp - Combination Power Supply / Battery Pack
28V DC - 2500 Amp - Digital Gauges - WIFI
Tow up to 100,000 lbs
100 kVA - Digital Gauges
Dekal Load Banks
The Future is Here for Load Banks - Dekal Load Banks

Your new load bank starts here with us. View the complete line of Digital LCD 28V DC load banks.

Advantages of 28.5V DC Digital LCD Dekal Load Banks

  • Simple operation suitable for non-trained operators
  • Silent operations <70 dB(A) at the distance of 7m / 23Ft
  • Suitable for workshop and/or airside operation
  • Environmental operating temperature from -20 C to 55 C / -4 F to 122 F
  • Transport casing with pull up handle as standard for each load bank
  • Triple thermal protection - extremely resistant to high temperature
  • Cant protection - load bank works only in horizontal position
  • Phase detection - load bank works only if all ABC phases are available
  • Phase rotation indicator - phase sequence of three-phase voltages
  • Fine regulation as standard for all Digital and Analogue 28.5 V DC load banks
  • Free DEKAL software application included
  • All measurements possible to archive or printout
  • Aluminum housing and non-corrosive parts
  • High component quality control by manufacturer
  • High reliability - effective standardization process
  • Cable pin jacks - unique user friendly safety feature for external voltage test
  • Spare parts availability and accurate on-time deliveries
  • Short worldwide delivery period with tracking feature
  • 2 years full warranty with extension option for all DEKAL load banks
  • CE certification - health, safety, and environmental protection standards
  • Standards & requirements according to ISO 6858, DFS 400, ARP 5015
  • Classification CE marking, DIN, VDE, IEC, IP 21 protection rate level

DLB-ESS-15DP - 1500 Amp Version

  • Voltage: 28.5V DC +/- 20%
  • Load: 1500 A +/- 20%
  • Load Test Procedure Type: Aircraft Engine Start Simulation in duration of 35 seconds
  • Load Test Specification at 28.5V DC: 6 Steps - 1. 1500 amp for 1 second, 2. 1200 amp for 3 seconds, 3. 1000 amp for 10 seconds, 4. 800 amp for 20 seconds, 5. 700 amp for 30 seconds, 400 amp for 35 seconds
  • Forced Air Cooling: 44.10 m3/min - 1560 CFM
  • Analog Volt Meter: Volt Meter 1% Accuracy, Wide Viewing Angle, Programmable Background Color - Green, Red, White
  • Analog Amp Meter: Ammeter 1% Accuracy, Wide Viewing Angle, Programmable Background Color - Green, Red, White
  • Light Indication: 28V DC Power Indication, Failure Indicator
  • GPU Testing Procedure and Engine Decarbonising: Proposal Procedure: Load 300A/600A for 20 minutes or Load Test in 6 Steps 100% to 0% - 35 seconds
  • Operating Temperature: from -20C to 55C / from -4F to 122F
  • Nose Level: <70 dBA at distance of 7m / 23ft
  • Load Bank Size: 570x230x450 mm - 20 kg / 22.5x9x19 inches - 44 lbs
  • Transport Case: 620x280x690 mm - 17 kg / 24.4x11x27.2 inches - 37 lbs
  • Load Bank Painting / Transport Casing: Powder Coating Fine Structure 71319 IGP, Swiss Quality / High Grade Aluminum

Additional Features

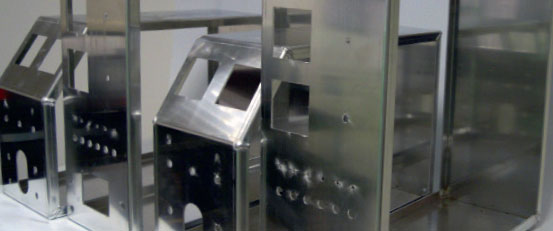

  • Lightweight compact aluminum housing
  • Rugged design and durable construction
  • Powder painting
  • All parts made of non-corrosive materials

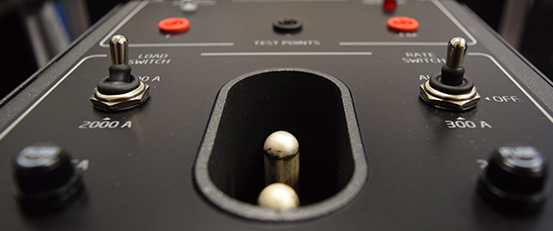

  • Plug test pins for connecting external device measurement
  • Power indicator lights
  • + & - Indication
  • E&F circuit indicator

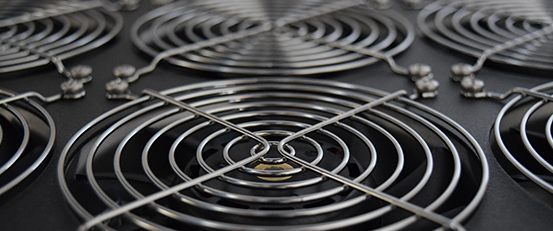

  • High Performance Cooling system
  • PWM Speed control function
  • Burnout protection at locked rotor
  • Measurements Overview
  • High quality analogue instruments 72 x 72 mm
  • Voltmeter 0-40 V, Ammeter 0-2500 A
  • Standard aircraft 3-pole Power Receptacle with shield
  • Stainless steel feet on both the bottom and back panels, power cable plug can be connected in either a horizontal or vertical position
