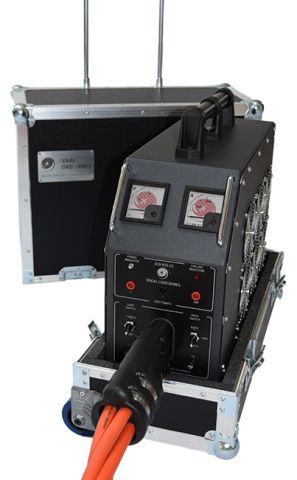

28V DC Analog Load Bank 1500 Amp - Dekal DLB-ESS-15AP

The Future is Here for Load Banks - Dekal Load Banks

Your new load bank starts here with us. View the complete line of analog 28V DC load banks.

Advantages of 28.5V DC Analog Dekal Load Banks

• Simple operation suitable for non-trained operators
• Silent operations <70 dB(A) at the distance of 7m / 23Ft
• Suitable for workshop and/or airside operation
• Environmental operating temperature from -20 C to 55 C / -4 F to 122 F
• Transport casing with pull up handle as standard for each load bank
• Triple thermal protection - extremely resistant to high temperature
• Cant protection - load bank works only in horizontal position
• Phase detection - load bank works only if all ABC phases are available
• Phase rotation indicator - phase sequence of three-phase voltages
• Fine regulation as standard for all Digital and Analogue 28.5 V DC load banks
• All measurements possible to archive or printout
• Aluminum housing and non-corrosive parts
• High component quality control by manufacturer
• High reliability - effective standardization process
• Cable pin jacks - unique user friendly safety feature for external voltage test
• Spare parts availability and accurate on-time deliveries
• Short worldwide delivery period with tracking feature
• 2 years full warranty with extension option for all DEKAL load banks
• CE certification - health, safety, and environmental protection standards
• Standards & requirements according to ISO 6858, DFS 400, ARP 5015
• Classification CE marking, DIN, VDE, IEC, IP 21 protection rate level

DLB-ESS-15AP - 1500 Amp Version

• Voltage: 28.5V DC +/- 20%
• Load: 1500 A +/- 20%
• Load Test Procedure Type: Aircraft Engine Start Simulation in duration of 35 seconds
• Load Test Specification at 28.5V DC: 6 Steps - 1. 1500 amp for 1 second, 2. 1200 amp for 3 seconds, 3. 1000 amp for 10 seconds, 4. 800 amp for 20 seconds, 5. 700 amp for 30 seconds, 400 amp for 35 seconds
• Forced Air Cooling: 44.10 m3/min - 1560 CFM
• Analog Volt Meter: Volt Meter - Moving Iron Class 1.5

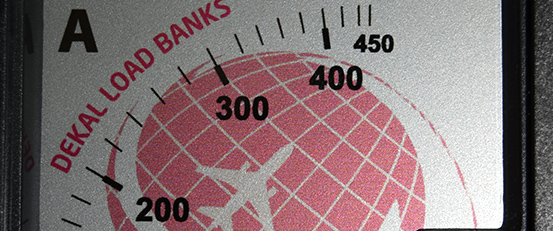

• Analog Amp Meter: Ammeterr - Moving Iron Class 1.5
• Light Indication: 28V DC Power Indication, Failure Indicator

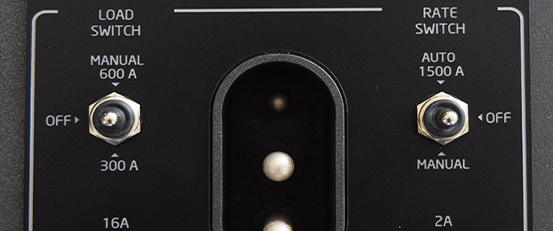

• GPU Testing Procedure and Engine Decarbonising: Proposal Procedure: Load 300A/600A for 20 minutes or Load Test in 6 Steps 100% to 0% - 35 seconds
• Operating Temperature: from -20C to 55C / from -4F to 122F
• Noise Level: <70 dBA at distance of 7m / 23ft
• Load Bank Size: 570x230x450 mm - 20 kg / 22.5x9x19 inches - 44 lbs
• Transport Case: 620x280x690 mm - 17 kg / 24.4x11x27.2 inches - 37 lbs
• Load Bank Painting / Transport Casing: Powder Coating Fine Structure 71319 IGP, Swiss Quality / High Grade Aluminum

Additional Features

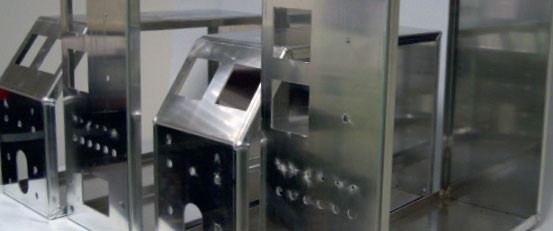

• Lightweight compact aluminum housing
• Rugged design and durable construction
• Powder painting
• All parts made of non-corrosive materials
• Plug test pins for connecting external device measurement
• Power indicator lights
• + & - Indication
• E&F circuit indicator

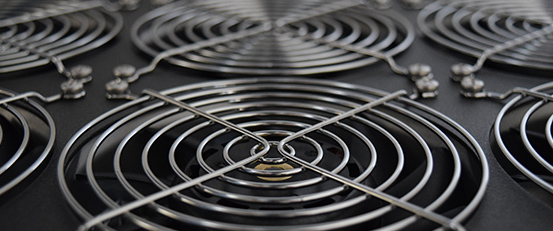

• High Performance Cooling system
• PWM Speed control function
• Burnout protection at locked rotor
• Measurements Overview
• High quality analogue instruments 72 x 72 mm
• Voltmeter 0-40 V, Ammeter 0-2500 A
• Standard aircraft 3-pole Power Receptacle with shield
• Stainless steel feet on both the bottom and back panels, power cable plug can be connected in either a horizontal or vertical position
