Malabar 12314S 12 Ton Fixed Height Tripod Jack

Item Superseded
This item has been discontinued or is no longer available.

It has been replaced by Malabar 12314S-1 (Qty 1)

CofC and 8130 available at no cost
Worldwide shipping available
Ask Our Aviation Specialists
Live Chat | +1.252.585.4553 | Email

Need a Quote?

Use this form to get a quote by email today.
First Name:
Last Name:
Email:
Company Name: (optional)
Questions/Comments: (optional)

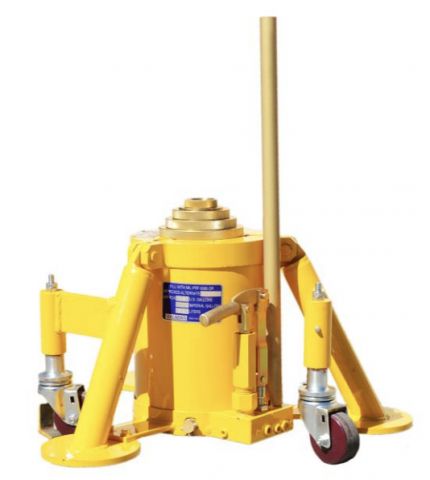

The Malabar 12314S fixed height tripod ack is a 12 ton capacity, three stage hydraulic jack designed primarily for use in aircraft maintenance. It consists of a tripod structure, hydraulic cylinder/reservoir assembly, hand pump and swivel casters.

The jack leg pads are raised off the ground by spring loaded casters. The casters will retract and the jack base and leg pads will rest on the ground when a load is applied to the jack.

Standard Features

  • Manual hand pump
  • Heavy duty swivel casters
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • Three year standard warranty
  • Shipment on domestic skid
  • Specifications

    • Rated Capacity: 12 tons (10.9 m. tons)
    • Side Load: 15% of vertical load
    • Roll Under Height: 15.3 Inches (389 mm)
    • Low Height: 14.3 inches (363 mm)
    • Hydraulic Lift: 23 inches (584 mm)
    • Extension Screw.: 6 inches (152 mm)
    • Total Extended Height: 43.3 inches (1100 mm)
    • Oil Pressure at Rated Capacity: 3370 psig (237 kg/sq cm)
    • Safety Pop-off Valve set at: 13.2 tons (12.0 m. tons)
    • Proof Load: 18 tons (16.3 m. tons)
    • Reservoir Capacity: 1.3 gallons (4.9 liters)
    • Hydraulic Fluid: MIL-PRF-5606 or equivalent
    • Approximate Jack Net Weight: 175 lbs (79 kg)

    Typical Applications - Forward Fuselage

    F27, H1, H53, SH60, UH60

    Typical Applications - Wing

    DHC6, H2, H53

    Typical Applications - Aft Fuselage

    H1, H2, H46, SH60, UH60
    Alternate Models
    12314S-1Alternative Model Number
    General Information
    Part #12314S
    ManufacturerMalabar
