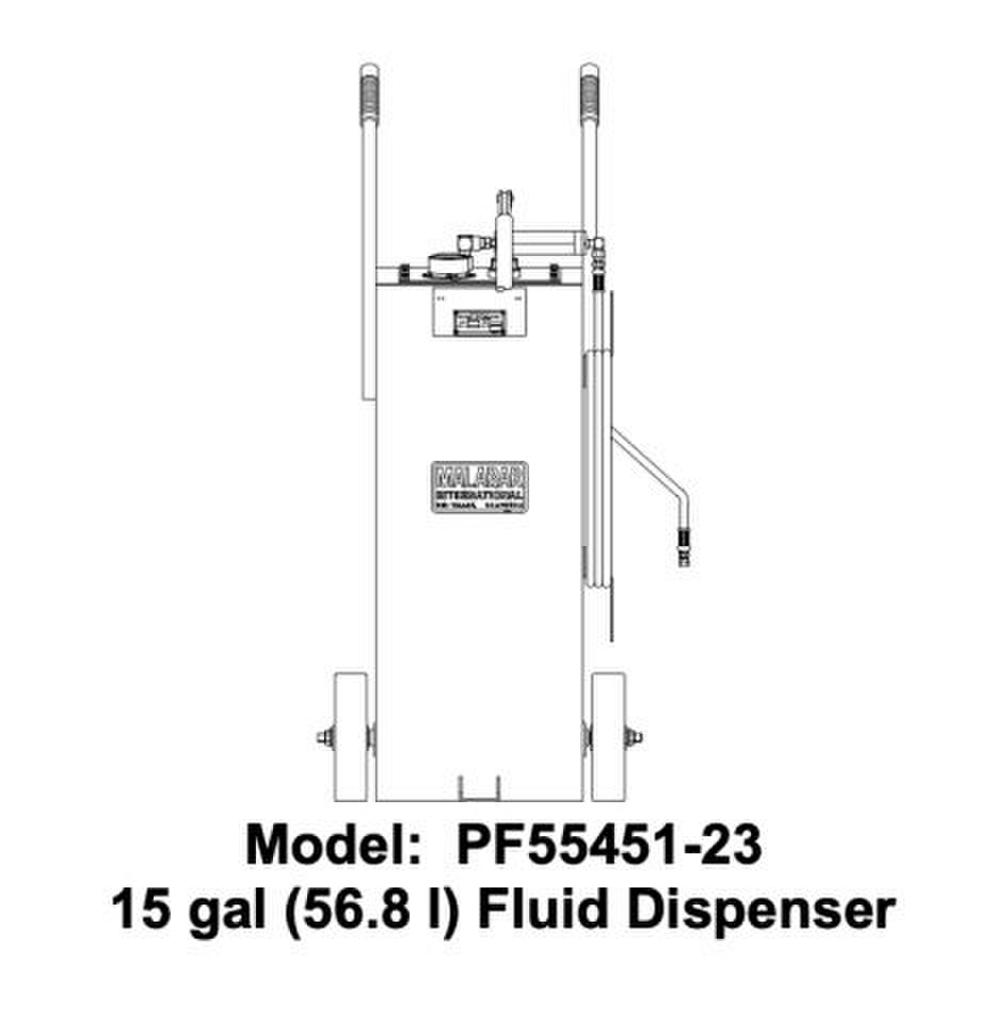

The Malabar Model 470 is a 15-gallon fluid dispenser used to service various commercial aircraft. The hand pump dispenser consists of a reservoir, pump assembly with relief valve, filter assembly, and a fluid delivery hose.
Specifications
- Fluid: Petroleum Based, MIL-PRF-5606
- Reservoir capacity: 15 gal (56.8 l)
- Relief valve set at: 150 ± 10 psig (1034 ± 69 kPa)
- Volume per stroke: 4 cubic in (65.5 cc)
- Hose length: 120 in (3048 mm)
- Net weight (empty): 82 lbs (37.2 kg)
- Filter rating: 3 micron nominal
How to Order the Correct Part Number
| General Information | |
|---|---|
| Part # | 470 |
| Manufacturer | Malabar |
| Specifications | |
|---|---|
| ECCN | EAR99 |
| Freight NMFC | 128000 |
| Schedule B | 8413110000 |
| Shipping Dimensions | 38 x 34 x 57 in. |
| Shipping Weight | 175 lbs. |
| Spare Parts | |
|---|---|
| 321-134 | HHCS, 1/4-28 x 5/8 LG |
| 355-011 | Hex Locknut, 1/2-13 |
| 362-005 | Flat Washer, 1/2 |
| 363-001 | Split Lockwasher, 1/4 |
| 371-007 | Roll Pin, 5/16 DIA x 29/32 LG |
| 372-001 | Cotter Pin, 3/32 x 3/4 LG |
| 373-008 | Flat Head Pin, 5/16 DIA |
| 397-010 | Self Tapping Screw, 6-32 |
| 412-006 | Steel Ball, 1/2 DIA |
| 422-013 | Check Valve |
| 423-002 | Relief Valve |
| 481-002 | Oil Screen |
| 481-006 | Filter Element |
| 491-017 | Adapter |
| 492-002 | Wheel |
| 494-002 | Handle Grip |
| 494-006 | Handle Grip |
| 55615 | Pump Link |
| 55911-9 | Scraper |
| 55924-75 | Retaining Ring |
| 55925-025 | O-Ring |
| 55925-112 | O-Ring |
| 55925-218 | O-Ring |
| 55926-137 | Retaining Ring |
| 55997-2 | Nameplate |
| 55998 | Sticker, Malabar |
| 711-001 | Nipple, 1/2 NPT |
| 711-003 | Nipple, 1/4 NPT |
| 711-030 | Nipple, 3/8 NPT x 1/4 NPT |
| 712-017 | Elbow, Street, 3/8 NPT |
| 713-002 | Tee, 1/4 FPT |
| 719-045 | Adapter |
| 721-009 | Connector, 1/4 NPT x 3/8 T |
| 721-010 | Connector, 3/8 NPT x 3/8 T |
| 721-023 | Adapter |
| 721-102 | Adapter |
| 721-103 | Adapter |
| 722-005 | Elbow, 1/4 NPT x 3/8 37° |
| 732-002 | Tubing, 3/8 OD |
| 736-013 | Adapter |
| K-5479 | Dust Plug Kit (Not Shown) |
| MS28778-8 | O-Ring |
| PF101161 | Filter Housing |
| PF101163 | Filter Housing Endcap |
| PF53452 | Tank |
| PF53456 | Gasket |
| PF53681 | Adapter |
| PF53683 | Adapter |
| PF55447 | Fillport Assembly |
| PF55456-14 | Hose Assembly |
| PF55485-1 | Pump Assembly |
| PF55486 | Cylinder |
| PF55487 | Plunger |
| PF55488 | Piston |
| PF55489 | Valve Body |
| PF55490 | Adapter |
| PF55491 | Collar |
| PF55492 | Cover |
| PF55495 | Handle |
| PF55507-6 | Adapter |
| PF55759 | Adapter |
| PF55877 | Adapter |
| PF55987 | Adapter |
