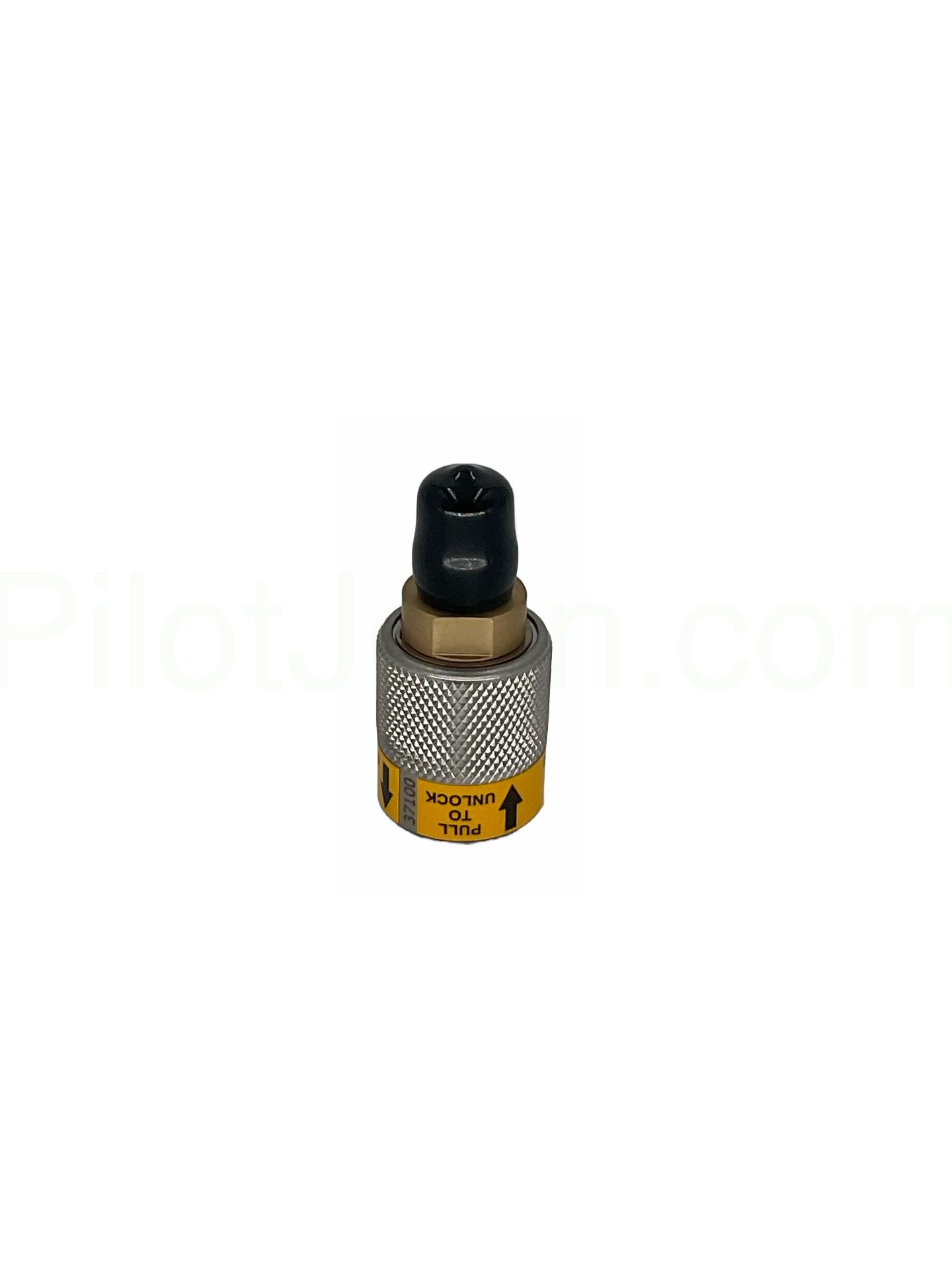

Malabar 736-013 Oil Servicing Coupler (OMP2506-3)

The Malabar 736-013 Oil Servicing Coupler is used across a wide range of Malabar fluid servicing units, including 1-quart, 2-gallon, 5-gallon, and 15-gallon oil dispensers. These models cover multiple PF53361 Series, PF55966 Series, PF53481 Series, and PF55451 Series fluid dispensers. Because these units are used for engine oil, hydraulic fluid, and system topping, the coupler is a common replacement part for routine servicing. Always verify compatibility with your equipment’s Illustrated Parts Breakdown (IPB) to ensure a proper fit.

Signs that the 736-013 coupler may need replacement include fluid seepage around the connection point, difficulty maintaining a secure lock on the fill port, or increased resistance during operation. Wear can occur over time due to repeated connect-and-disconnect cycles and exposure to various aircraft fluids. Regular inspection for cracked seals, worn jaws, or damaged threads helps prevent servicing delays. If any irregularities are found, replacing the coupler is recommended to maintain equipment reliability and prevent further issues.

Yes. Malabar designed the 736-013 coupler for use with oil and other compatible aircraft fluids handled by their one-quart to fifteen-gallon dispensers. It is commonly used on engine oil service carts but may also support mineral-based hydraulic fluids, depending on the dispenser model. However, technicians should always confirm fluid compatibility to avoid seal degradation or improper pressure retention.

To prolong its service life, operators should clean the coupler after each use, ensuring no residual oil or debris remains on the locking surfaces. Lubricating the internal mechanism with an approved light lubricant helps maintain smooth engagement. Regular inspection of the O-rings and sealing components is also essential, as worn seals can reduce connection integrity. Storing the coupler in a clean, dry environment prevents corrosion or foreign-object contamination.

Typically, the coupler can be installed without specialized tools; however, basic hand tools may be required to remove and reattach fittings. The installation process is usually straightforward due to its threaded or quick-connect design, depending on the dispenser model. Following the Malabar servicing unit’s maintenance manual ensures proper torque and sealing practices. If unsure, technicians should consult an A&P mechanic or Malabar’s technical support.

Most leakage issues stem from worn O-rings, damaged sealing surfaces, or contamination inside the coupler. Over-tightening the coupler can also damage internal seals and create future leakage points. Ensuring compatibility with the serviced aircraft port and using proper alignment during connection greatly reduces the likelihood of leaks. Routine cleaning removes grit and debris that can compromise the seal.

While primarily designed for Malabar’s own fluid dispensers, the 736-013 coupler may fit other equipment with compatible ports and thread standards. However, this is not guaranteed, and using it on non-approved units could lead to improper sealing or damage. For best results, operators should consult the equipment manufacturer before attempting cross-compatibility.

Frequent connect-and-disconnect cycles can gradually wear down the locking mechanism and internal seals, especially in high-volume fleet maintenance environments. Although the coupler is built for durability, heavy use increases the need for periodic inspection and timely replacement. Regular servicing ensures reliable fluid delivery and prevents unexpected downtime during critical maintenance operations.

Technicians should always depressurize the dispenser before attaching or removing the coupler. Wearing gloves and eye protection is recommended due to the potential for fluid spray when working with pressurized systems. Ensuring the coupler is fully locked before dispensing fluid prevents accidental disconnection. Proper training in aircraft fluid handling procedures also reduces safety risks.

fter each servicing operation, the coupler should be wiped clean with a lint-free cloth to remove residual oil or hydraulic fluid. If heavy buildup is present, a mild solvent compatible with aircraft fluids may be used. Avoid submerging the coupler, as internal parts may trap moisture. Allowing it to air-dry completely helps maintain long-term reliability.

Extreme temperatures can affect the flexibility and sealing capability of the coupler’s O-rings and internal components. In cold environments, seals may stiffen, requiring careful handling to ensure proper seating and alignment. In high-temperature conditions, softened seals may lose shape more quickly over time. Using approved lubricants and replacing seals at scheduled intervals helps maintain optimal performance across a wide range of temperature extremes.

OEM replacement parts ensure proper fit, sealing performance, and durability that meet Malabar’s design criteria. Using off-spec or non-OEM alternatives can lead to improper pressure retention, accelerated wear, or failure during servicing. OEM components also ensure compliance with maintenance manuals and aviation safety standards. Choosing genuine Malabar parts helps maintain equipment reliability and aircraft readiness.
