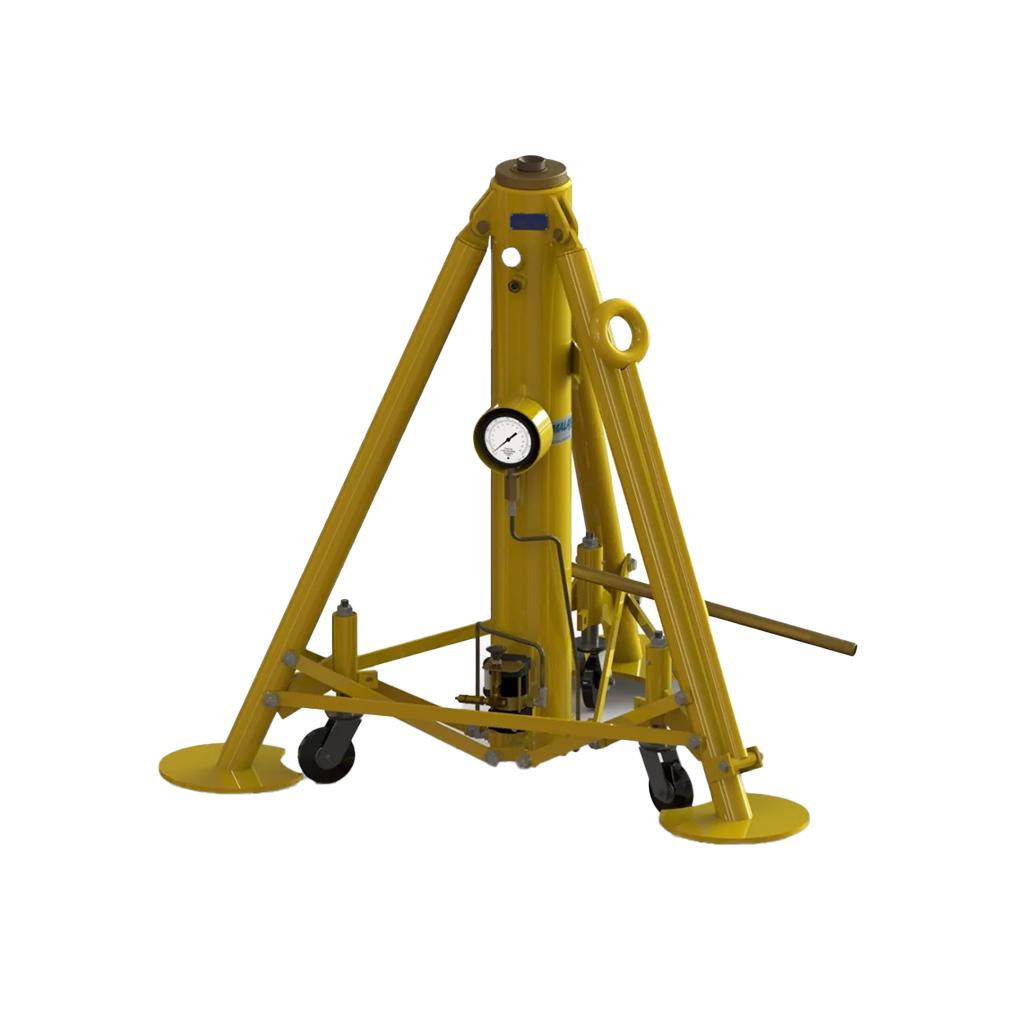

Malabar 71800B-4 - 20-Ton Aircraft Hydraulic Tripod Jack, 70"

The Malabar 71800B-4 is a 20-ton, single-stage hydraulic jack that's designed primarily for use in aircraft maintenance. The jack consists of a tripod structure, hydraulic cylinder/reservoir assembly, adjustable hand pump, swivel casters, and the following optional equipment:

• Air Pump
• Load Gauge
• Tow Handle

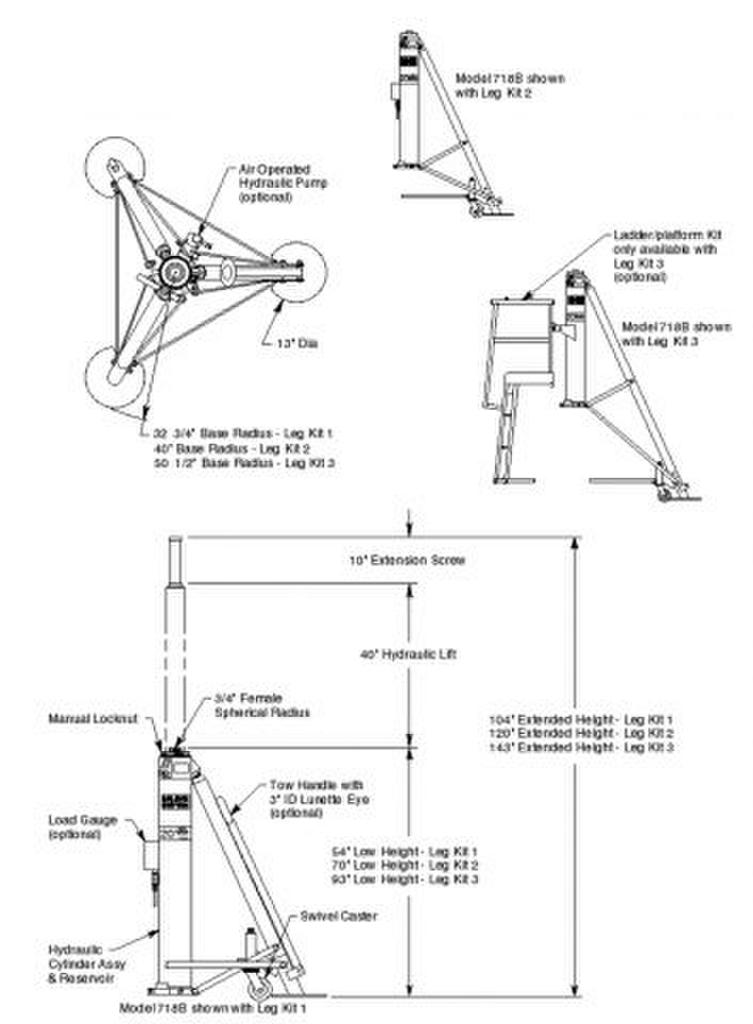

• Leg Kit 1 – 54" (137.2 cm) low height
• Leg Kit 2 – 70" (177.8 cm) low height
• Leg Kit 3 – 93" (236.2 cm) low height

The jack tow handle readily connects to the tow vehicle for easy transport. The jack should never be used as a personnel carrier while being towed or in motion. The jack leg pads are raised off the ground by spring-loaded casters. The casters will retract and the pads rest on the ground when a load is applied to the jack.

Standard Features:

• Manual hand pump with high, medium and low pressure operating positions
• Heavy duty swivel casters
• Rain hat (covers jack upper head)
• Hard chrome plated cylinder bore
• All unpainted parts are plated to resist corrosion
• Skydrol resistant paint (safety yellow)
• Factory proof load @ 150% of rated capacity
• 3 year standard warranty
• Shipment on domestic skid
