Malabar 8772 15 Ton Axle Jack

Available
Lead Time: Chat now or request quote
CofC and 8130 available at no cost
Worldwide shipping available
Ask Our Aviation Specialists
Live Chat | +1.252.585.4553 | Email

Need a Quote?

Use this form to get a quote by email today.
First Name:
Last Name:
Email:
Company Name: (optional)
Questions/Comments: (optional)

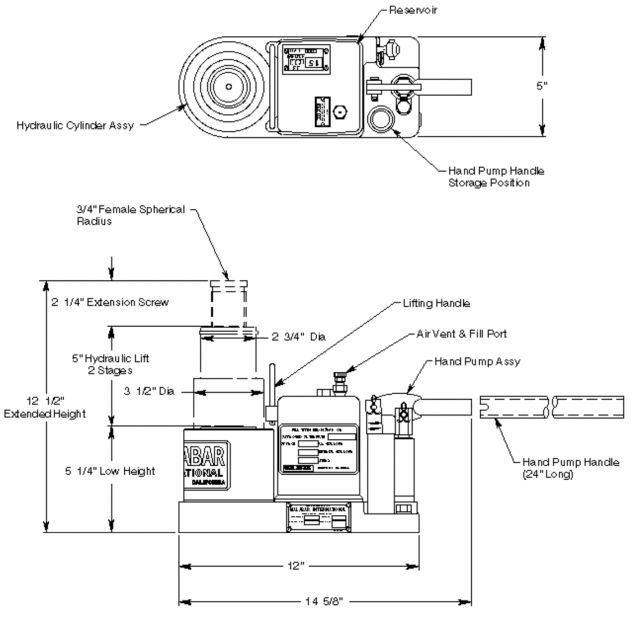

The Malabar 8772 axle jack is a 15-ton capacity, two stage hydraulic jack designed primarily for use in jacking main and/or nose landing gear of various aircraft. The jack consists of a two-stage cylinder assembly, hydraulic reservoir and hand pump assembly. A lifting handle is also supplied for ease of handling.

Standard Features

  • Hard chrome plated cylinder bore
  • Extension screw and hand pump parts are plated to resist corrosion
  • Manual hand pump
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • One year standard warranty
  • Fully enclosed shipping container

Specifications

  • Rated Capacity: 15 tons (13.6 m. tons))
  • Side Load: 15% of vertical load
  • Low Height: 5.25 inches (133 mm)
  • Hydraulic Lift: 5 inches (127 mm)
  • Extension Screw: 2.25 inches (57 mm)
  • Total Extended Height: 12.5 inches (318 mm)
  • Oil Pressure at Rated Capacity: 4315 psig (303 kg/cm2)
  • Safety Pop-off Valve set at: 16.5 tons (15.0 m. tons)
  • Proof Load: 22.5 tons (20.4 m. tons)
  • Reservoir Capacity: 0.4 gallons 1.5 liters)
  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Approximate Jack Net Weight: 40 lbs. (18 kg)

Nose and Main Landing Gear Applications

RJ
General Information
Part #8772
ManufacturerMalabar
