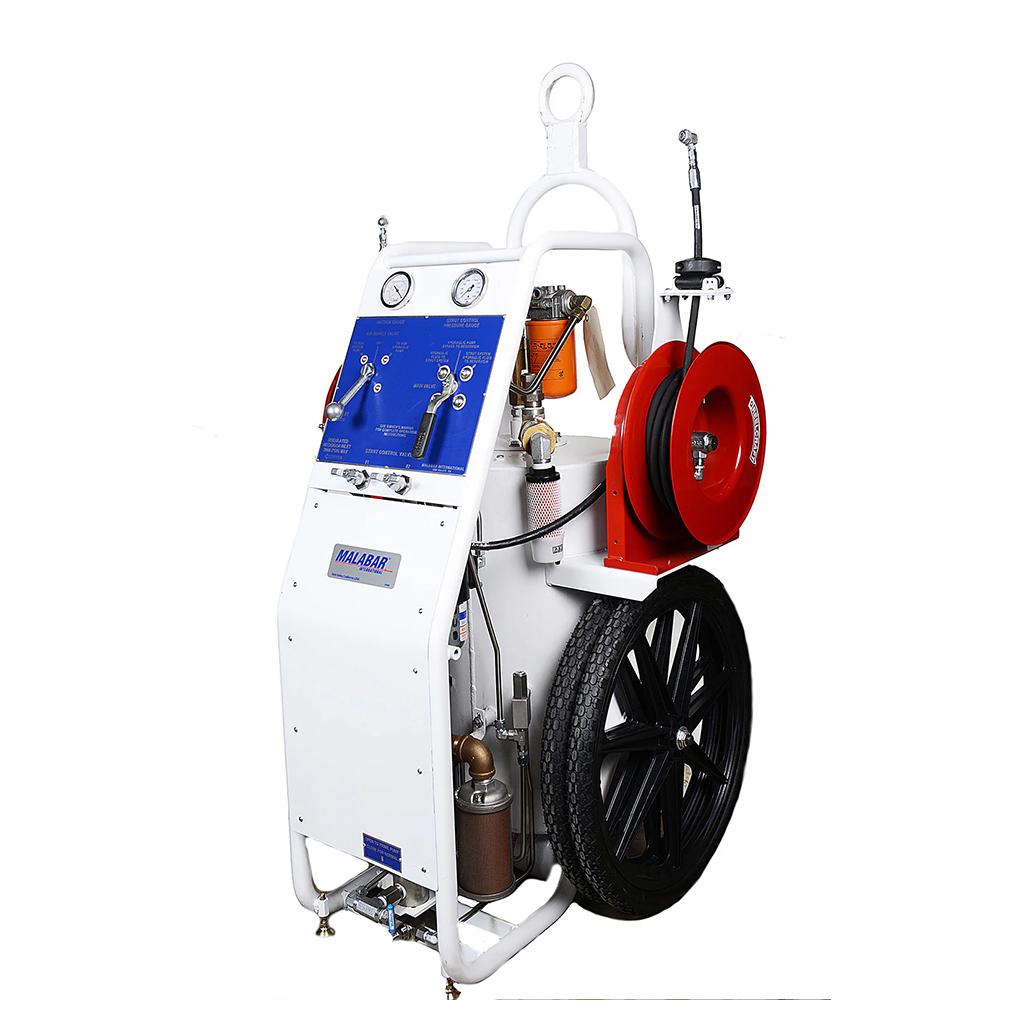

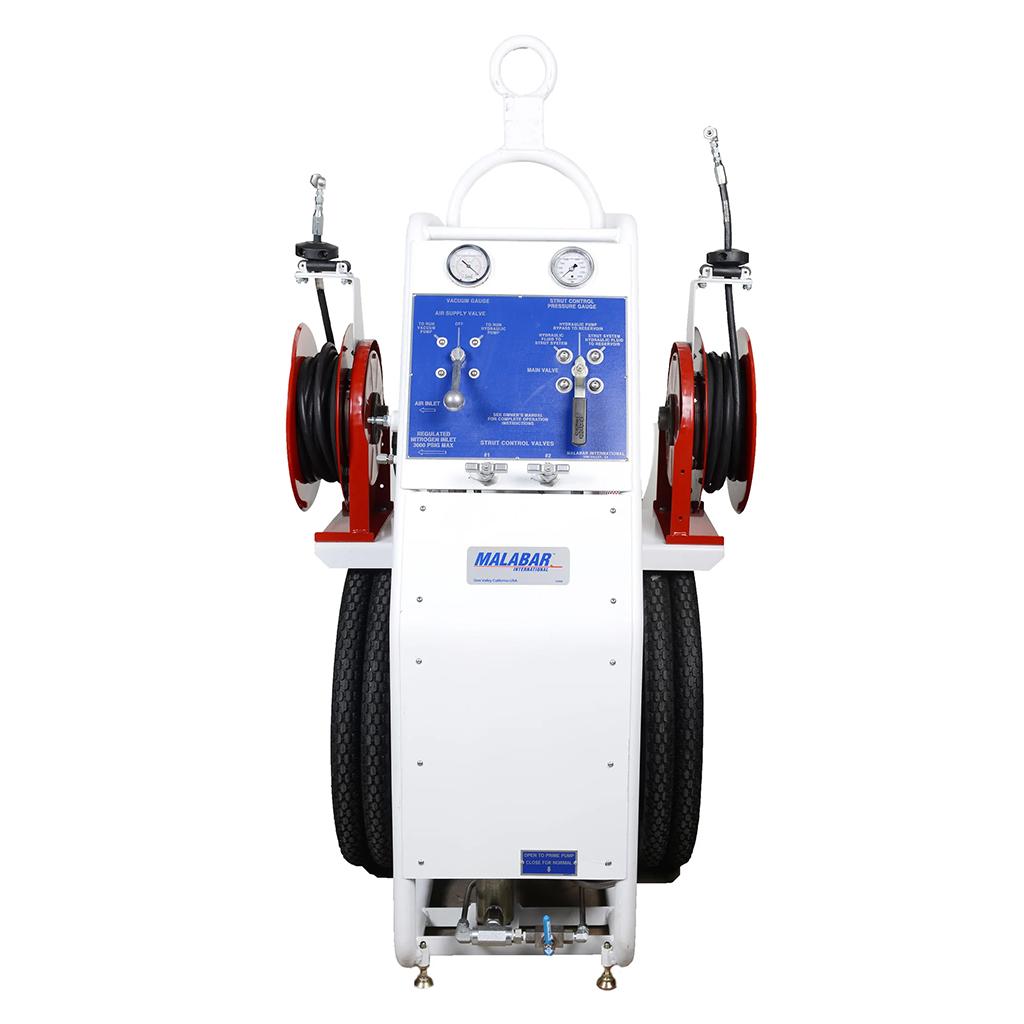

Malabar 8844B Landing Gear Strut Service Unit - Dual Reservoir w/ Hose Reel - 884400B-2

The Malabar 8844B Landing Gear Strut Service Unit - 884400B-2 delivers hydraulic fluid and nitrogen to service both single and dual chamber strut aircraft landing gear. The Model 8844B allows quick emptying of used hydraulic fluid and nitrogen from the strut chambers, then refilling and recharging with hydraulic fluid and nitrogen, all without jacking the aircraft. Because jacking is not required, the time required to perform this important maintenance procedure is dramatically reduced.

This 8844B is a model which includes baffled cylindrical dual reservoir (8.5 gallons for clear fluid and 7 gallons for waste fluid) with fluid sights, fill cap, desiccant breather, strut vent system, drain valve and cleanout.

Standard Features

• Towable unit with an integral reservoir and tubular frame
• Poly-filled tires and 3" lunette ring
• Conveniently located operator panel for easy strut servicing
• Baffled cylindrical dual reservoir (8.5 gallons for clear fluid and 7 gallons for waste fluid) with fluid sights, fill cap, desiccant breather, strut vent system, drain valve and cleanout
• Air operated hydraulic pump and vacuum degassing system
• Connections for customer provided regulated nitrogen and air
• Suction and return filtration
• Vacuum gauge and analog pressure gauge
• Two service hoses with strut safety chucks on hose racks
• With retractable hose reel
• Skydrol resistant paint (white)
• 1-year standard warranty

Specifications

• Air Inlet: 90-110 psig (6.3-7.7 kg/sq cm)
• Regulated Nitrogen inlet: 3000 psig max (210 kg/sq cm)
• Hydraulic Fluid: MIL-PRF-5606 or equivalent
• Hydraulic Bypass Relief Valve set at: 3000 psig (211 kg/sq cm)
• Clean Reservoir Capacity: 8.5 gallons (32 liters)
• Waste Reservoir Capacity: 7.0 gallons (26 liters)
• Fluid Pump Air Consumption: 56 scfm @ 100 psig
• Fluid pump Nitrogen Consumption.: 62 scfm @ 100 psig
• Fluid Delivery Rate: 2 gpm @ 1500 psig
• Suction Fluid Filter: 10 micron nominal
• Vacuum Degassing System: 20 inches Hg
• Service Hose (2 each): 25 ft (7620 mm)
• Maximum towing Speed: 20 mph (32 km/h)
• Unit Weight w/o optional equipment (dry): 265 lbs (120 kg)
• Unit Weight w/o optional equipment (wet): 405 lbs (184 kg)

Aircraft Applications

All Narrow Body and Wide Body Aircraft Single or Dual Chamber Struts

Service/Repair & Spare Parts

Our GSE team is ready to assist in spare parts for your unit along with repairs & servicing. Contact our team for assistance.
