Malabar 8942A 12 Ton Tripod Jack

Malabar 8942A
Malabar 8942AMalabar 8942A
Manufacturer: Malabar
Part Number: 8942A
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
20 Ton - 37 to 78 inches
35 Ton Axle Jack
65 Ton Axle Jack - Fly-A-Way - 10 inches up to 25 inches
10 Ton - 32 to 68 inches
15 Ton - 34.75 to to 100.75 inches

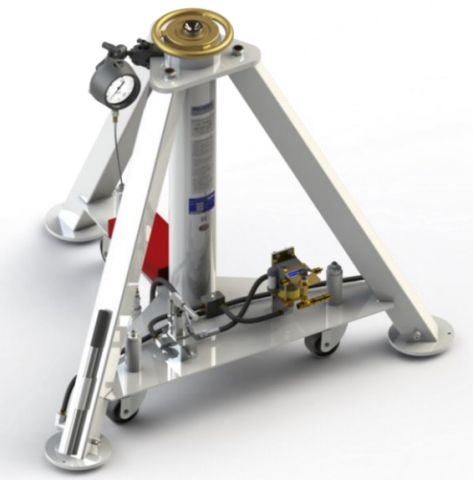

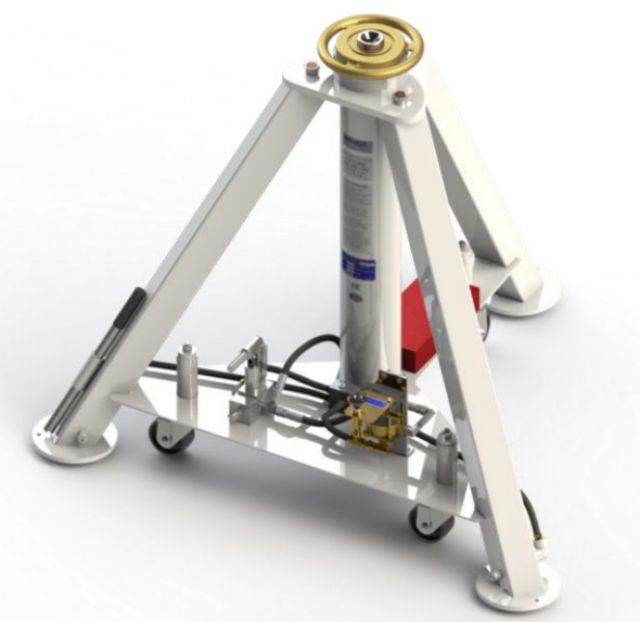

The Malabar 8942A is a 12-ton capacity single stage hydraulic jack designed for use in aircraft maintenance. It consists of a tripod structure with integrated dual-leg reservoirs, hydraulic cylinder assembly, hand pump, swivel casters, locknut with handwheel and optional air pump with a remote air inlet for remote air manifold operational control and a deadman air valve for individual jack operation.

A separate Air Manifold Kit part number 712020-3 may be purchased for remote air pump operational control. This Air Manifold Kit can operate three jacks utilizing a single air source.

The jack leg pads are raised off the ground by spring loaded casters. The casters will retract under loading, allowing the footpads to contact the ground during jacking operations.

Standard Features

  • Rugged tubular steel frame
  • Manual hand pump
  • Spring loaded swivel casters for smooth jack maneuverability
  • Locknut with handwheel
  • Secondary cylinder seal for protection against contaminants and to prolong life of primary seal
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (white)
  • Factory proof load @ 150% of rated capacity

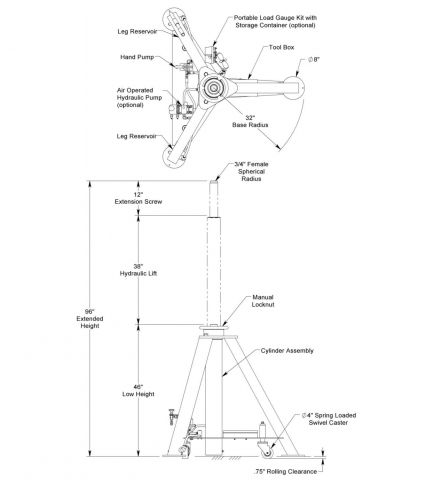

Specifications

  • Rated Capacity: 12 tons (10.9 m. tons)
  • Side Load: 15% of vertical load
  • Roll Under Height: 46.8 inches (1189 mm)
  • Low Height: 46 inches (1168 mm)
  • Hydraulic Lift: 38 inches (965 mm)
  • Extension Screw: 12 inches (305 mm)
  • Total Extended Height: 96 inches (2438 mm)
  • Oil Pressure at Rated Capacity: 1222 psig (86 kg/cm2)
  • Safety Pop-off Valve set at: 13.2 tons (12.0 m. tons)
  • Proof Load: 18 tons (16.3 m. tons)
  • Reservoir Capacity: 3.4 Gallons (12.8 liters)
  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Maximum Towing Speed: not available for towing
  • Approximate Jack Net Weight.: 587 lbs (266 kg)

Typical Aircraft Applications

  • Nose - GIV, G400, G450, GV, G500, G550, G600, G650, Global Express 5000/6000/7000/8000

Optional Add-ons

  • AP: Air Operated Hydraulic Pump
  • LGK: Portable Load Gauge Kit with Storage Container
  • SPC: Special Paint Color
Compatible Aircraft*
Bombardier (Business)Global 5000, Global 6000, Global 7000, Global 8000
GulfstreamG450, G500, G550, G650, IV, V
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
