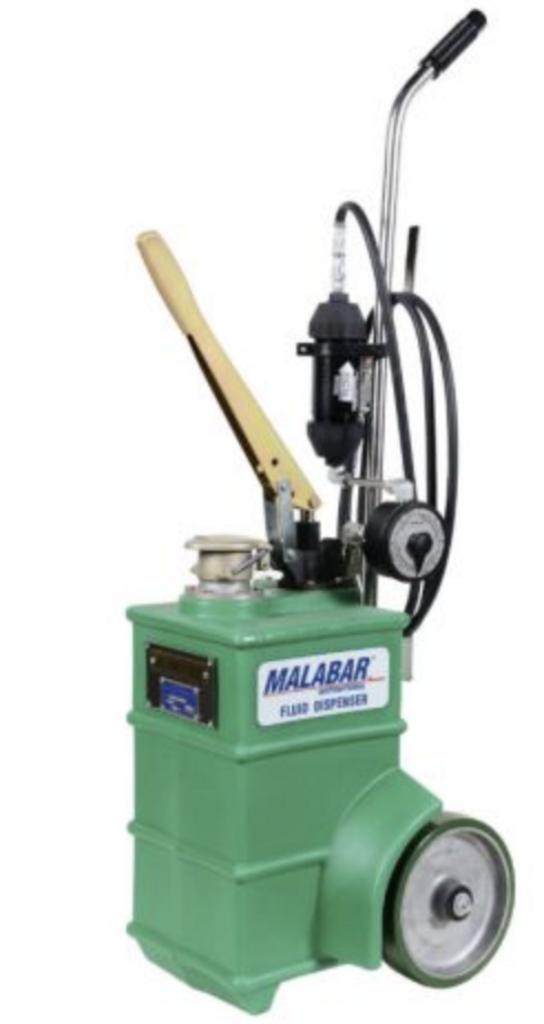

Malabar PF54066-10P 5-Gallon Aircraft Turbo Oil Fluid Dispenser

Malabar PF54066-10P 5-Gallon Aircraft Fluid Dispenser

The Malabar PF54066-10P Fluid Dispenser is a manually operated 5-gallon aircraft servicing unit designed specifically for dispensing BP 2197 Turbo Oil in commercial aircraft maintenance applications. Manufactured by Malabar International, this dispenser is built to deliver clean, controlled fluid transfer while meeting the durability and reliability expectations of aviation maintenance environments.

The PF54066-10P features a rugged steel reservoir, precision hand-pump assembly, in-line filtration, and a long delivery hose equipped with an aircraft-compatible coupling. Its manual pumping system provides consistent output per stroke, allowing technicians to accurately control fluid delivery without relying on air or electric power.

An integrated 3-micron nominal filter helps protect aircraft systems from contamination during servicing, while the wheeled base and tall handle make the unit easy to maneuver around the aircraft. This dispenser is well suited for hangars, line maintenance, and MRO operations where controlled oil servicing is required.

Key Features

• 5-gallon (18.9 liter) fluid capacity

• Manual hand-pump operation for precise fluid control

• Designed specifically for BP 2197 Turbo Oil

• In-line 3-micron nominal filter for clean fluid delivery

• Long 240-inch hose for easy aircraft access

• Aircraft-style coupling with dust plug for contamination prevention

• Rugged steel construction with wheeled base

• Proven Malabar design used in commercial aircraft maintenance

Dispensing Performance

• Volume Dispensed per Stroke: 3.0 cubic inches (49 cc)

• Maximum Pump Outlet Pressure: 100 psig (689 kPa)

This output allows accurate, repeatable fluid delivery while minimizing the risk of over-pressurization.

Approved Fluid

• Fluid Type: BP 2197 Turbo Oil

Only the approved fluid listed above should be used. Aircraft manufacturer servicing instructions must always be followed.

Specifications

• Manufacturer: Malabar International

• Part Number: PF54066-10P

• Reservoir Capacity: 5 U.S. gallons (18.9 liters)

• Dispense Volume: 3.0 in³ (49 cc) per pump stroke

• Pump Outlet Pressure: 100 psig (689 kPa)

• Filter Rating: 3 micron nominal

• Hose Length: 240 in (6096 mm)

• Net Weight (Empty): 35 lb (15.9 kg)

• Fluid Tank Color: Blue

• Operation Type: Manual hand pump
