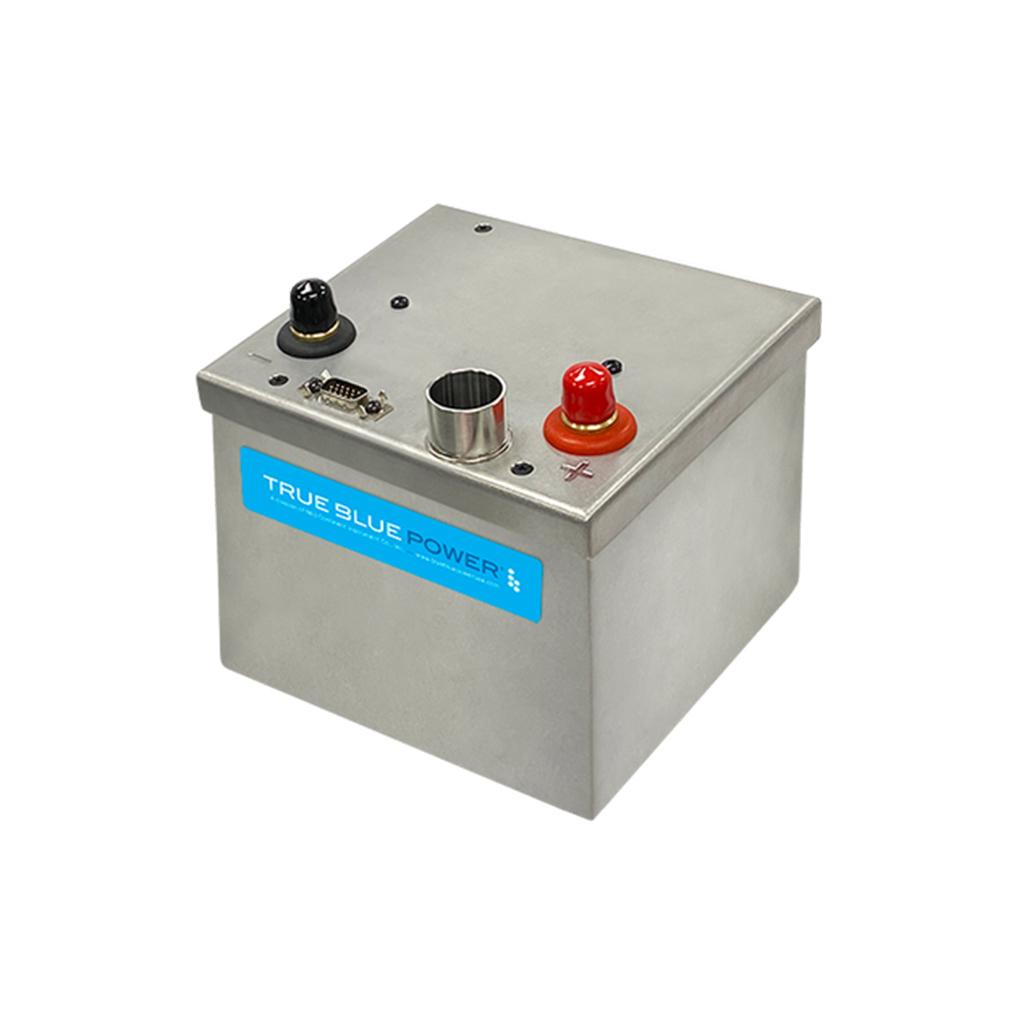

MCI 6430014-11 - TB28-12V Lithium-ion Aircraft Battery
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Designed specifically for 14-volt aircraft
• 26 amp-hour battery nominal at 23°C/73.4°F
• Weighs 10 lbs. (4.54 kg)
• Advanced iron phosphate lithium-ion cell chemistry
• Higher voltage during engine start — Less wear, less maintenance and increased useful life
• 50 minutes (at 35 amps average) for complete recharge when the battery is fully discharged
• Superior high-temperature and cold-weather performance from -20°C to +70°C (-4°F to +158°F)
• Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
• Communicates battery status to the cockpit via RS-232, analog and discrete signals
• On-condition
• 8 years (average) life expectancy
• Designed and built in Wichita, Kansas, USA
• FAA TSO Certified
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6430014-11 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8507600000 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Battery Life Expectancy | 8 years (average) |
| Capacity | 26 amp-hour nominal at 23°C/73.4°F |
| Case | Anodized aluminum, blue |
| Certification | FAA TSO C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA |
| Charge Voltage | 14.4 VDC nominal |
| Configuration | 4P4S; 4 parallel cells x 4 series cells |
| Dimensions | 6.3” L x 5.6” W x 5.0” H |
| Energy Density | 76 Wh/kg, 121 Wh/liter |
| Maintenance | On-condition |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Output Current | 200 A continuous, 850 A max |
| Output Voltage | 13.2 VDC nominal |
| Protection | Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature, and charge current limiting |
| Technology | Advanced iron phosphate lithium-ion cell chemistry |
| Weight | 10.0 lbs. (4.6 kg) |
