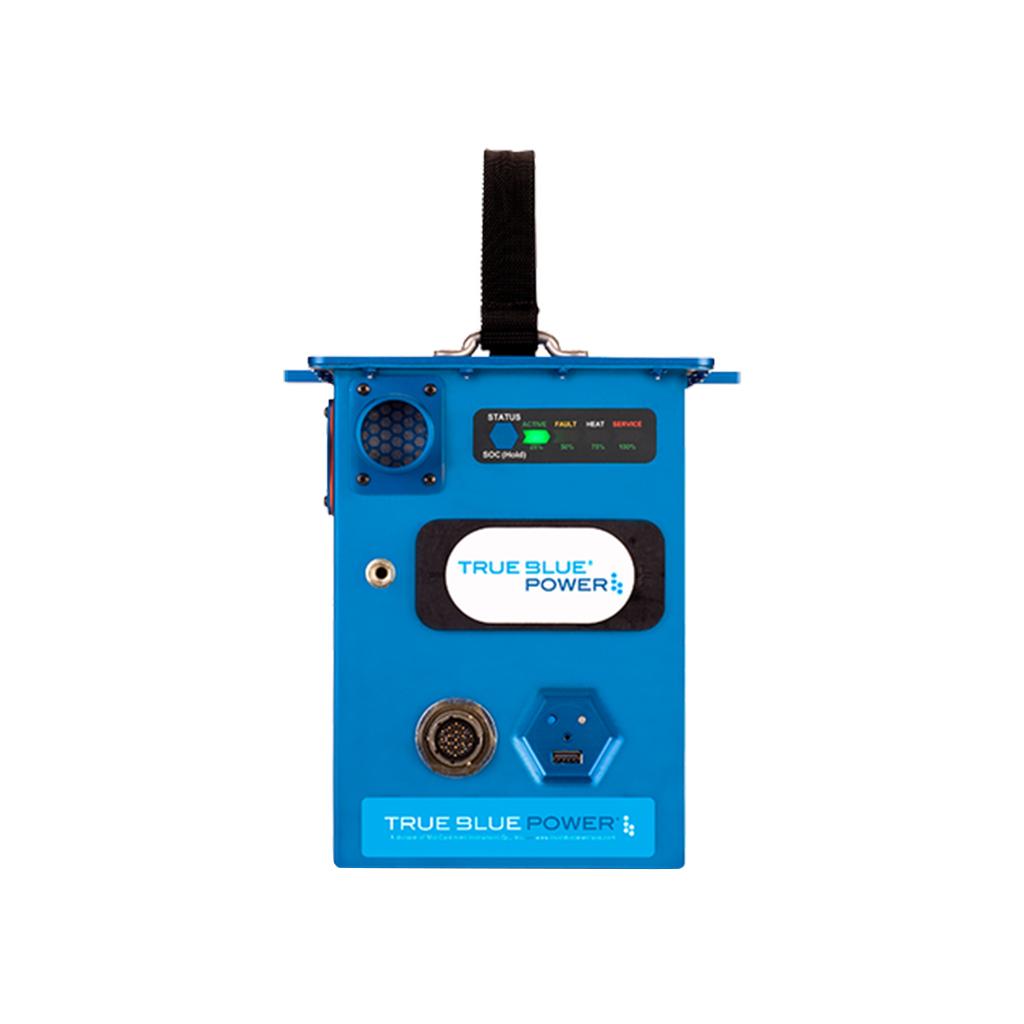

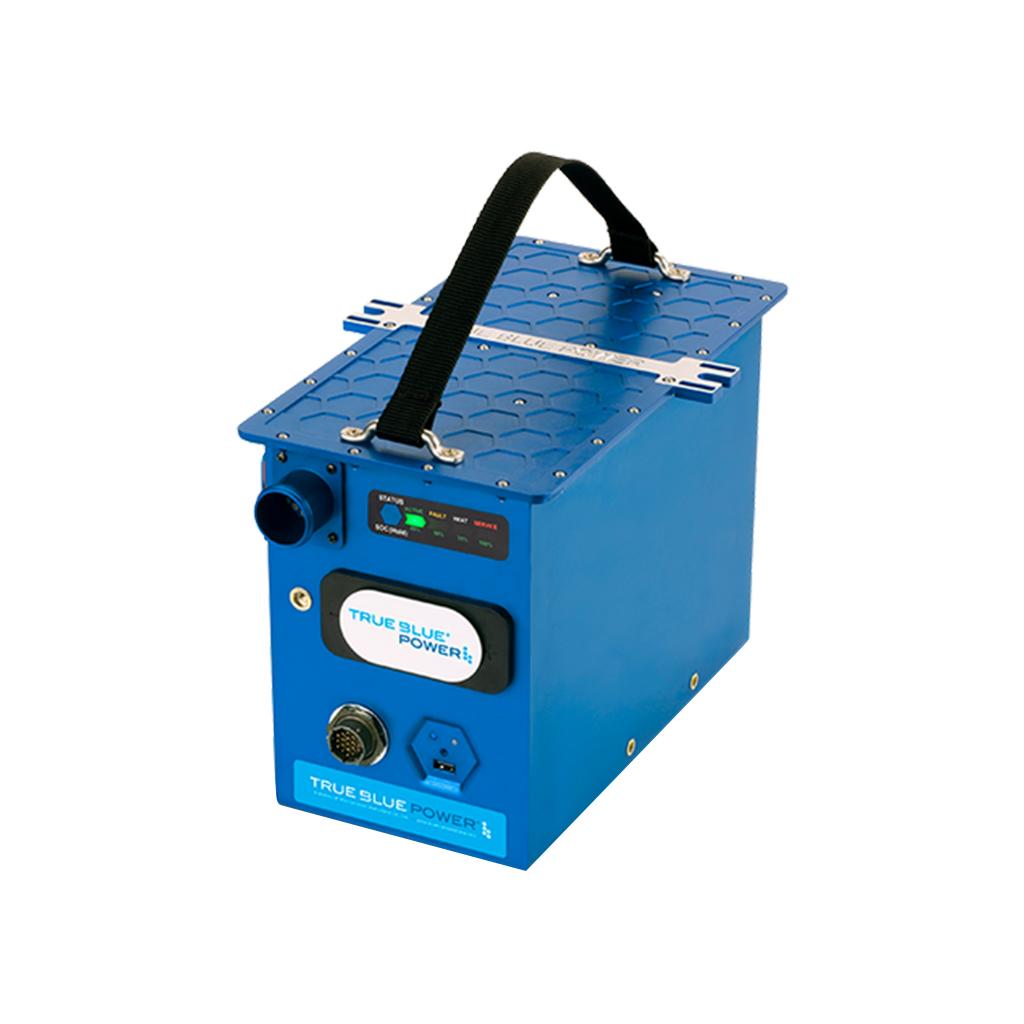

MCI 6430020-1 - Battery, TB20, Advanced Lithium-ion, Gen5
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• 20 amp-hour nominal at 23°C/73°F
• Weighs 19.5 lbs. — up to 60% less than lead-acid and NiCad solutions
• Advanced NanoPhosphate® lithium-ion cell chemistry
• Higher voltage during engine start — Less wear, less maintenance and increased useful life
• Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
• More than 1 amp-hour per pound
• Automatic internal heater
• Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
• Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
• On-condition maintenance
• Designed and built in Wichita, Kansas, USA
• FAA TSO Certified
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6430020-1 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8507600000 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Battery Life Expectancy | 8 years (average) |
| Capacity | 20 amp-hour nominal (at 23°C/73°F) |
| Case | Anodized aluminum, blue |
| Certification | FAA TSO-C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA |
| Charge Current Limiting | Programmable up to 8C or unlimited |
| Charge Voltage | 28 VDC nominal |
| Configuration | 8P8S; 4 parallel x 8 in series x 2 |
| Dimensions | 9.1” L x 8.6” W x 8.8” H |
| Energy Density | 59.7 Wh/kg |
| Maintenance | On-condition |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Output Current | 525 A continuous (1000 A max) |
| Output Voltage | 26.4 VDC nominal |
| Technology | Advanced NanoPhosphate® lithium-ion cell chemistry |
| Weight | 19.5 lbs. (8.9 kg) |
Customers also viewed
Battery TB17, Advanced Lithium-ion
Battery, TB60, Advanced Lithium-ion, Gen5
Battery TB17, Advanced Lithium-ion
TB28-12V Lithium-ion Aircraft Battery
Stinson 108 1, 2, 3 (AFT) SN# 108-11 and 108-743 & UP (with Battery AFT)
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier |
CRJ100
NOTE
Each aircraft will be equipped with (2) True Blue Power Gen5 lithium-ion aircraft batteries.
,
CRJ1000
NOTE
Each aircraft will be equipped with (2) True Blue Power Gen5 lithium-ion aircraft batteries.
,
CRJ200
NOTE
Each aircraft will be equipped with (2) True Blue Power Gen5 lithium-ion aircraft batteries.
,
CRJ700
NOTE
Each aircraft will be equipped with (2) True Blue Power Gen5 lithium-ion aircraft batteries.
,
CRJ705
NOTE
Each aircraft will be equipped with (2) True Blue Power Gen5 lithium-ion aircraft batteries.
,
CRJ900
NOTE
Each aircraft will be equipped with (2) True Blue Power Gen5 lithium-ion aircraft batteries.
|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
