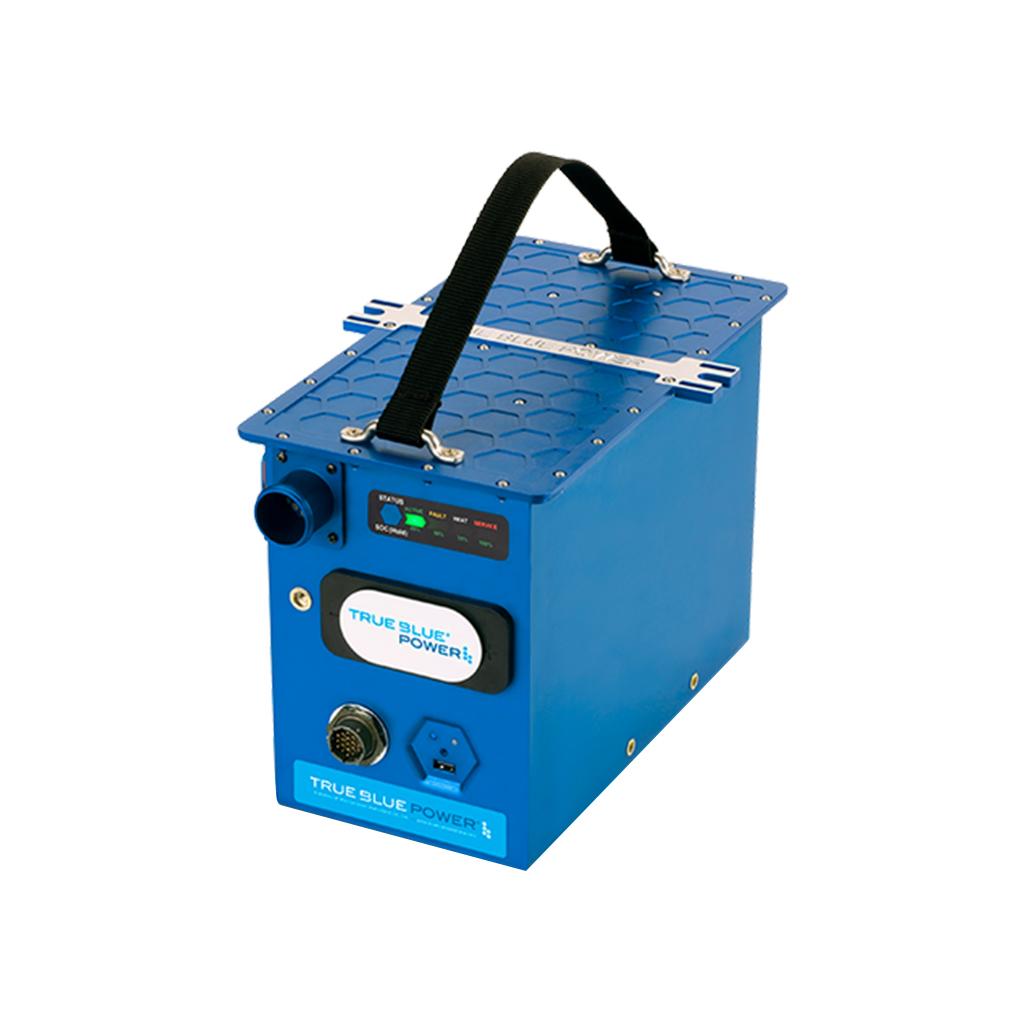

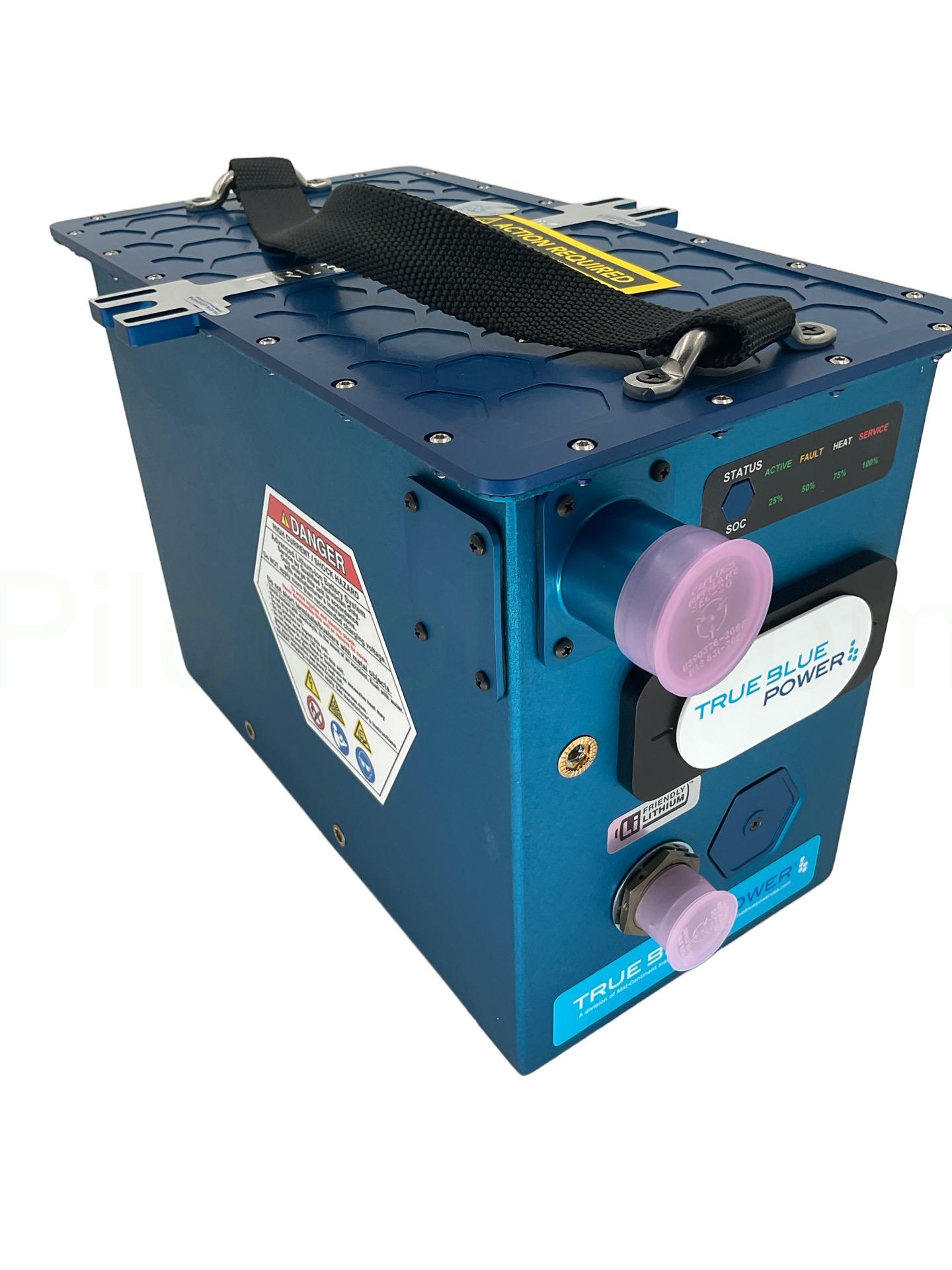

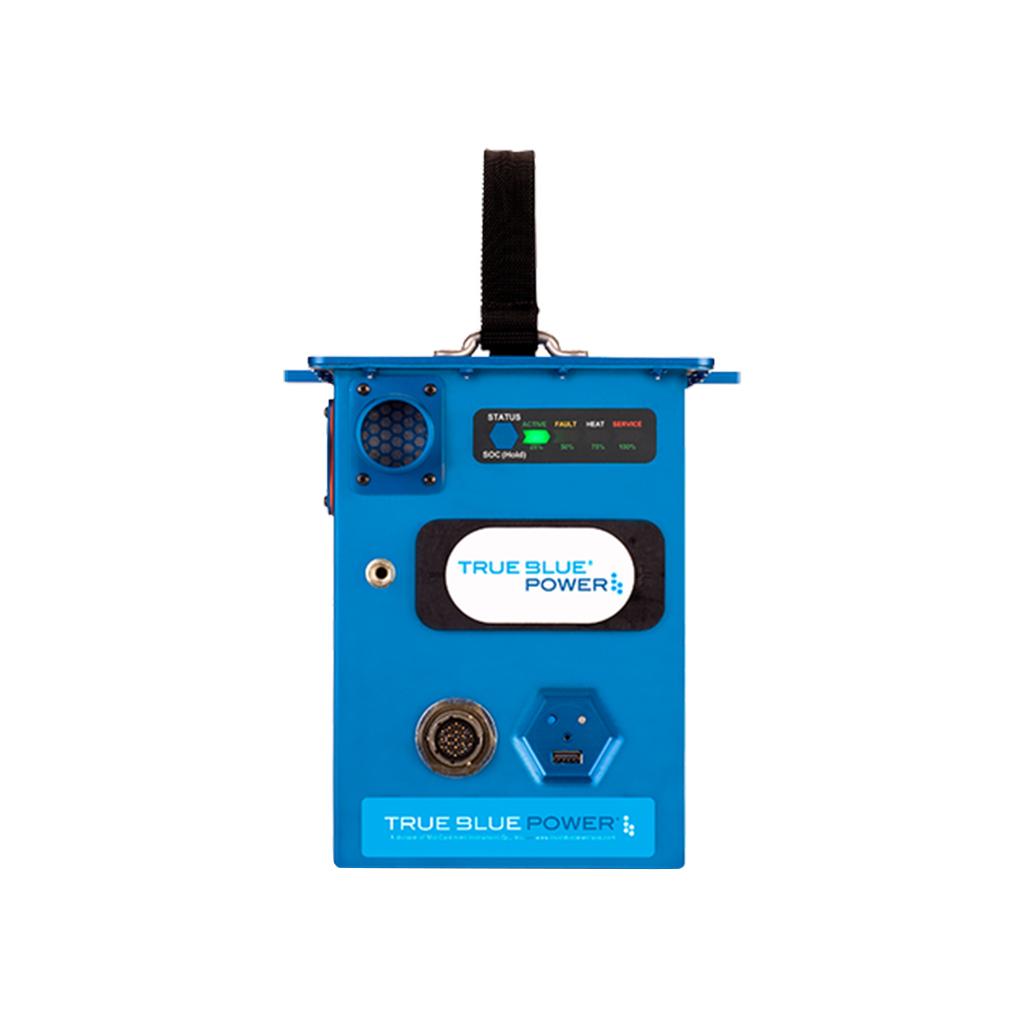

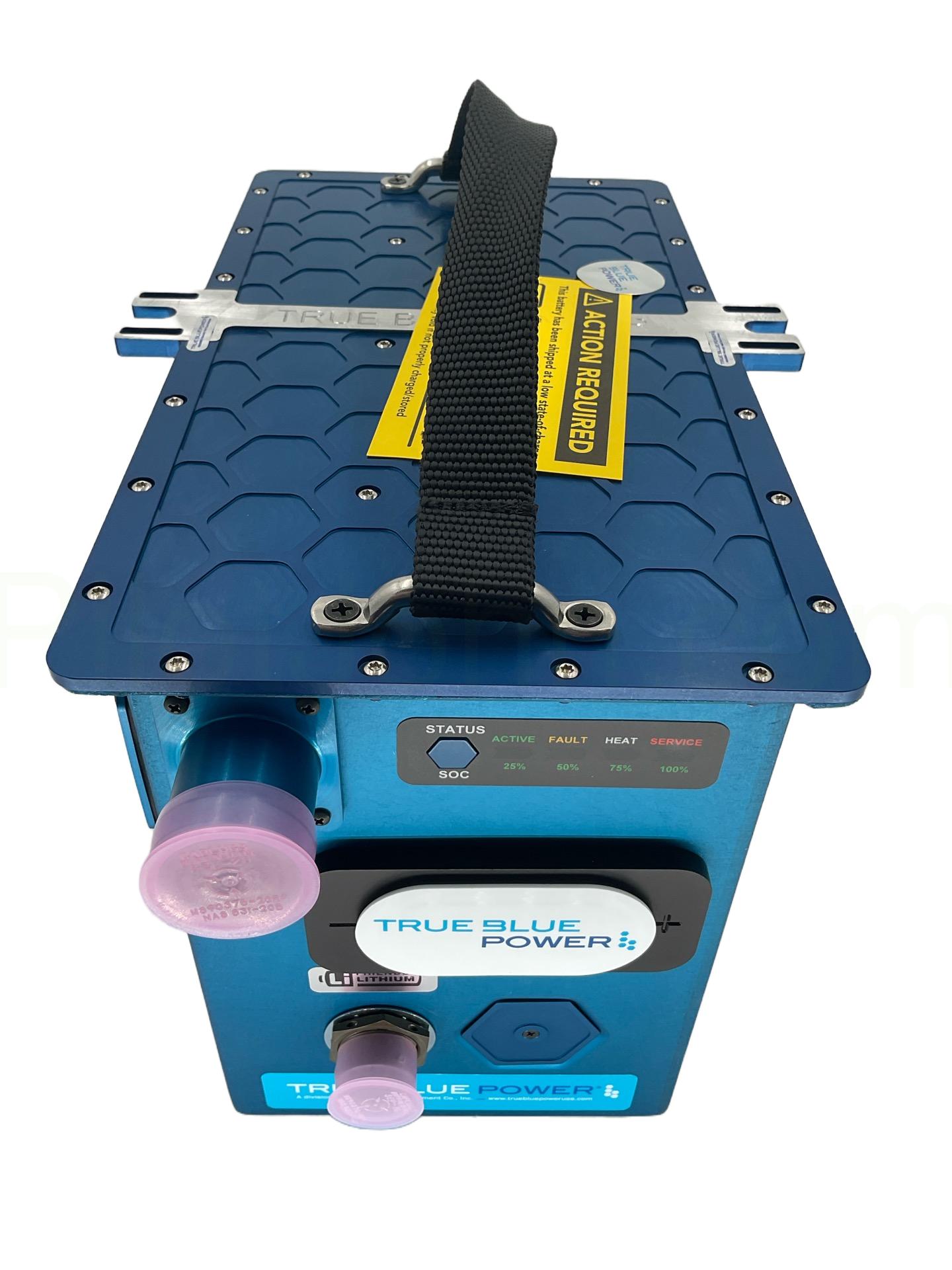

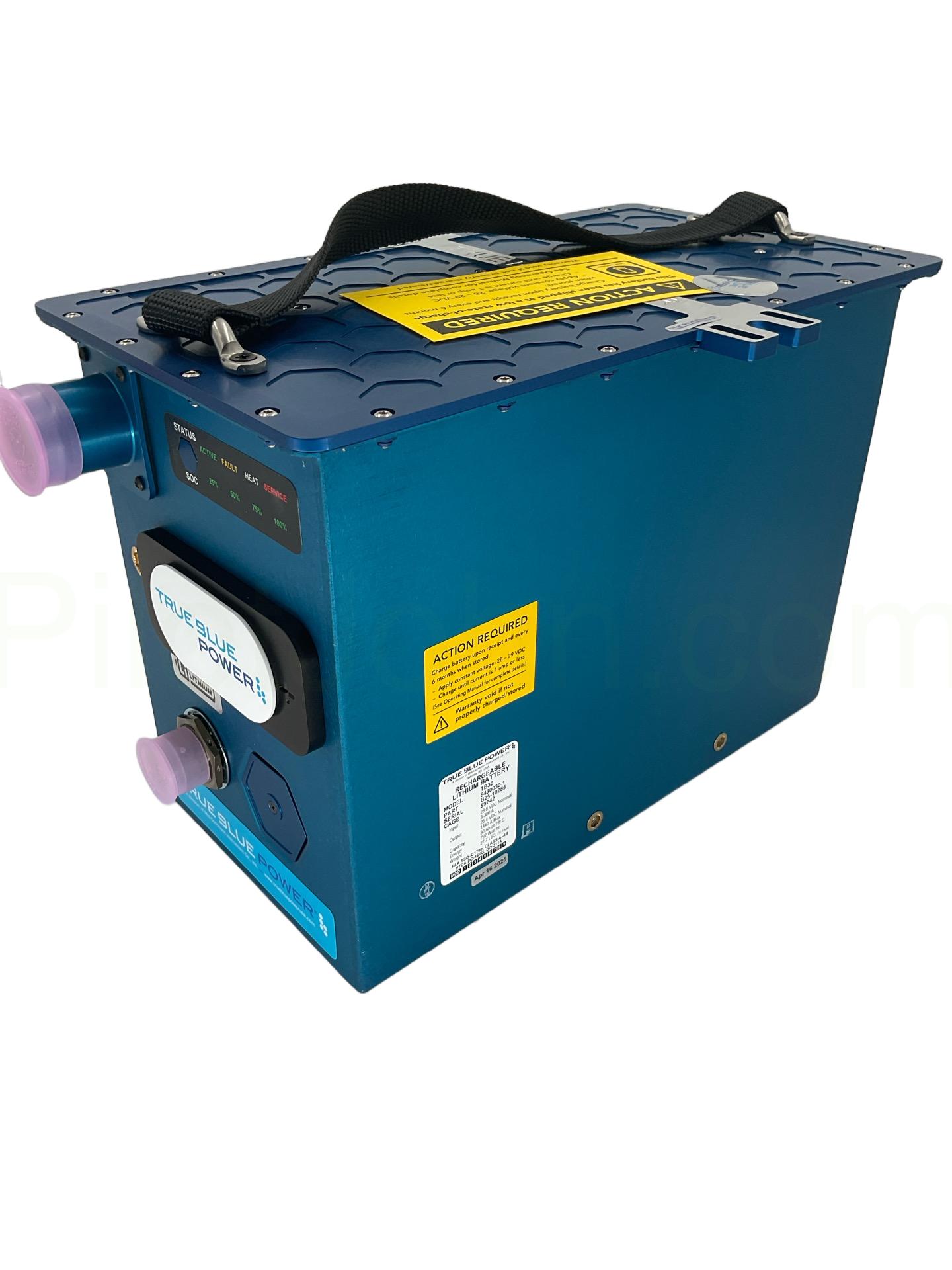

Mid-Continent Instruments 6430030-1 – TB30 Gen5 Lithium-Ion Aircraft Battery
The TB30 Gen5 Lithium-Ion Aircraft Battery is engineered to deliver superior performance, reliability, and efficiency for modern aviation applications. Its lightweight design and advanced technology provide significant advantages over traditional lead-acid and NiCad batteries.(Costaero)
Key Features
-
Lightweight Design: Weighs 27.7 lbs, reducing aircraft weight by up to 60% compared to traditional batteries.
-
High Energy Density: Delivers more than 1 amp-hour per pound, enhancing overall aircraft efficiency.
-
Rapid Recharge: Capable of fully recharging within 30 minutes, minimizing downtime.
-
Built-in Heater: Ensures optimal performance in extreme temperatures, from -40°C to +70°C.
-
Advanced Safety Features: Includes protections against overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature, and charge current limiting.
-
Integrated Battery Management System (BMS): Provides real-time monitoring of state-of-charge and state-of-health, enhancing safety and reliability.
-
Maintenance-Free Operation: Designed for on-condition maintenance, eliminating the need for regular capacity checks.
-
FAA TSO Certified: Meets rigorous aviation standards, ensuring compliance and safety.
Specifications
Part Number: 6430030-1
Model Number: TB30 Gen5
Manufacturer: Mid-Continent Instruments and Avionics
Voltage: 26.4 VDC nominal
Capacity: 30 Ah
Weight: 27.7 lbs (12.6 kg)
Dimensions: 12.5” L x 8.6” W x 8.8” H
Certifications: FAA TSO-C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA
Technology: Advanced NanoPhosphate® lithium-ion cell chemistry
Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)
Maintenance: On-condition
Life Expectancy: 8 years (average)
Applications
The TB30 Gen5 battery is ideal for a wide range of aircraft, including turboprops and light jets, where weight savings, reliability, and performance are critical. Its advanced features make it suitable for both new installations and retrofits.
Note: Always consult your aircraft's maintenance manual and a certified avionics technician to ensure compatibility and proper installation.
| General Information | |
|---|---|
| Part # | 6430030-1 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| MSDS 1 | View Safety Data Sheet |
| Shipping Information | |
|---|---|
| Product Weight | 32.8 lbs. |
| Product Dimensions | 17 x 14 x 12 in. |
| Schedule B | 8507600000 |
| ECCN | 9A991.d |
| Hazmat/Dangerous Goods | Yes |
| MSDS 1 | View Safety Data Sheet |
| Specifications | |
|---|---|
| Battery Life Expectancy | 8 years (average) |
| Capacity | 30 amp-hour nominal (at 23°C/73°F) |
| Case | Anodized aluminum, blue |
| Certification | FAA TSO-C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA |
| Charge Current Limiting | Programmable up to 8C or unlimited |
| Charge Voltage | 28 VDC nominal |
| Configuration | 12P8S; 4 parallel x 8 in series x 3 |
| Dimensions | 12.5” L x 8.6” W x 8.8” H |
| Energy Density | 63.1 Wh/kg |
| Maintenance | On-condition |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Output Current | 575 A continuous (1500 A max) |
| Output Voltage | 26.4 VDC nominal |
| Technology | Advanced NanoPhosphate® lithium-ion cell chemistry |
| Weight | 27.7 lbs. (12.6 kg) |
