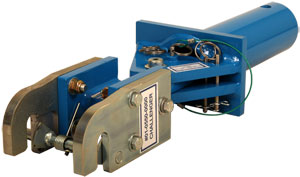

Tronair 01-0550-0000 – Towbar Head Attachment with Radial Shear Protection (CE)
In Stock
Ready to ship tomorrow if you order in the next 18 hours and 33 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 01-0550-0000 Towbar Head Attachment is designed for use with Tronair's multi-head towbars (models 01-1201-0010, 01-1202-0000, and 01-1290-0100) for towing select Challenger seres aircraft manufactured by Bombardier (Business).
Radial shear protection protects the nose gear from excessive loads while turning. The head is made to break the shear pin if a safe turning load is exceeded, while the head stays secured to the towbar.
The towbar head attachment uses machined. hooks to interface with the aircraft tow point.
Standard Features
- Sturdy welded steel construction
- Positive locking to the towbar via a ball-lock T-pin
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Maximum Aircraft Gross Weight: 48,300 lbs. (21.9 metric tons)
- Width: 6.25" (15.9 cm)
- Length: 21.3" (54.1 cm) – overall
- Height: 4" (10.2 cm)
- Weight: 24 lbs. (10.9 kg)
| General Information | |
|---|---|
| Part # | 01-0550-0000 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 01-0550-0000 Parts, Service, and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 31 lbs. |
| Shipping Dimensions | 26 x 12 x 10 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1100-107510 | Bolt, Hex Head, Grade 5, 3/8-24 x 1" long (Qty 2) |
| G-1100-107516 | Bolt, Hex Head, Grade 5, 3/8-24 x 1-3/4" long (Qty 3) |
| G-1100-107520 | Bolt, Hex Head, Grade 5, 3/8-24 x 2" long |
| G-1155-107216 | Screw, SHS, 1/2" diameter x 1-3/4" long |
| G-1202-1075 | Stopnut, 3/8-24 Elastic (Qty 4) |
| G-1202-1095 | Stopnut, 1/2-20 Elastic |
| G-1250-1070N | Flatwasher, 3/8 Narrow (Qty 9) |
| G-1250-1070W | Flatwasher, 3/8 wide |
| G-1250-1090 | Flatwasher, 1/2 Narrow |
| G-1251-1070R | Lockwasher, 3/8 Regular (Qty 2) |
| G-1300-16040 | Roll Pin, 5/32 Dia x 1/2 |
| G-1300-16050 | Roll Pin, 5/32 diameter x 5/8" long |
| G-1300-25340 | Roll Pin, 1/4" diameter x 3-1/2" long |
| G-1452-22 | Shear Pin |
| H-1205 | Cover, Handle |
| H-1724-03 | Bushing |
| H-1725-03 | Bushing (Qty 2) |
| J-1268 | Adapter |
| J-1269 | Adapter |
| K-1380 | Kit, Axle Locking Mechanism Replacement |
| Z-0130 | Mechanism, Axle Locking |
| Z-1492-00 | Head Weldment (01-0550-0000SP) |
| Z-1492-01 | Head Weldment (01-0550-0000) |
| Z-2060-00 | Assembly, Shear Plate (01-0550-0000SP) |
| Z-2060-01 | Assembly, Shear Plate (01-0550-0000) |
Customers also viewed
Towbar Head Attachment with Radial Shear Protection – Select Bombardier & Hawker Aircraft
– Select Beechcraft Aircraft
Towbar Head Attachment with Radial Shear Protection – Select Dassault Falcon & Nihon YS-11 Aircraft
Head, Nihon Ys-11 (Ce)
Towbar Head Attachment for CASA CN-235 Aircraft
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier |
Challenger 600
NOTE
This towbar head is required for the Multi-Head Towbar (01-1202-0000).
,
Challenger 601
NOTE
This towbar head is required for the Multi-Head Towbar (01-1202-0000).
,
Challenger 604
NOTE
This towbar head is required for the Multi-Head Towbar (01-1202-0000).
,
Challenger 605 (CL605)
NOTE
This towbar head or 01-0515-0000 (without shear protection) is required for the Multi-Head Towbar (01-1202-0000).
,
Challenger 650
NOTE
This towbar head is required for the Multi-Head Towbar (01-1202-0000).
|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
