KUNZ 230.5000 Automatic Tire Inflator (ATI) for Safety Tire Inflation Cages
Item Superseded
This item has been discontinued or is no longer available.
It has been replaced by KUNZ 230.5170 (Qty 1)
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

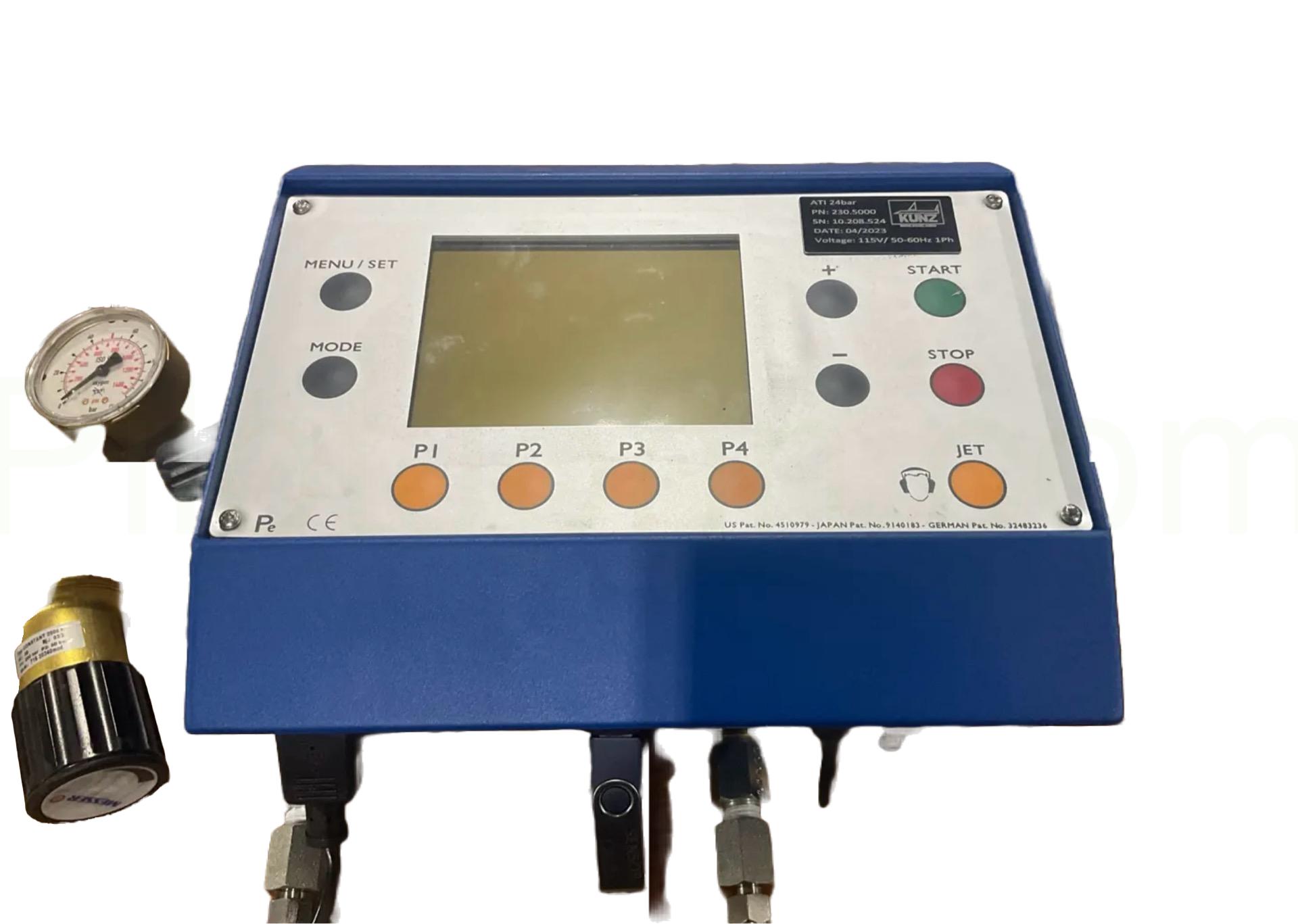

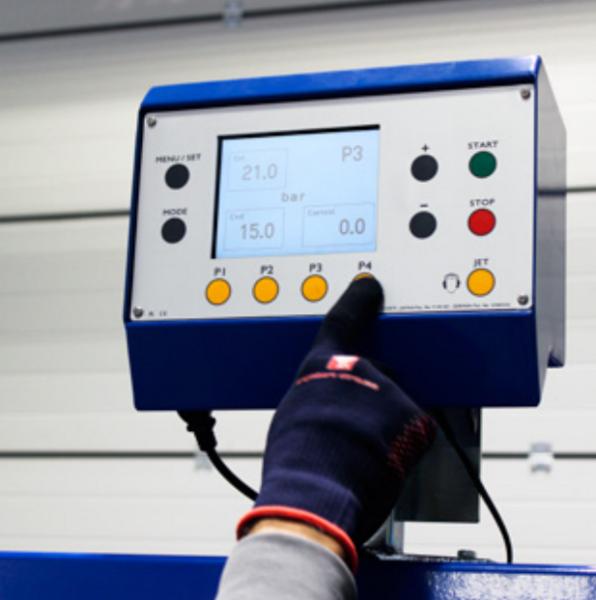

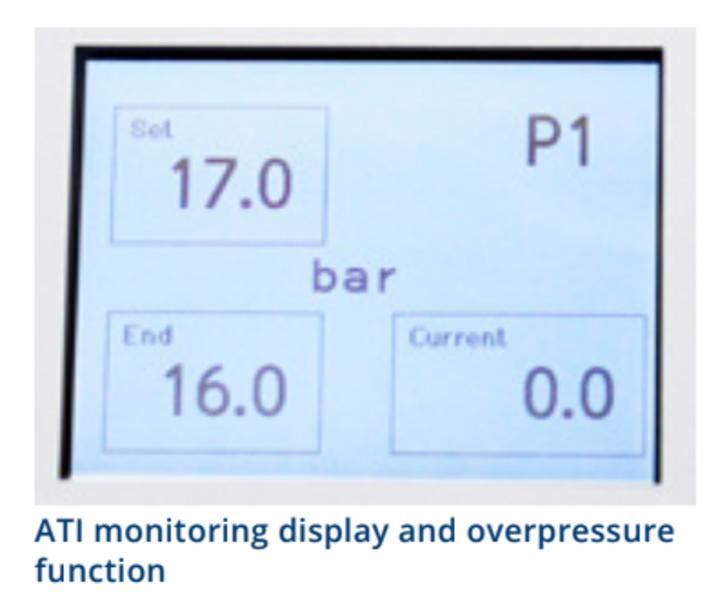

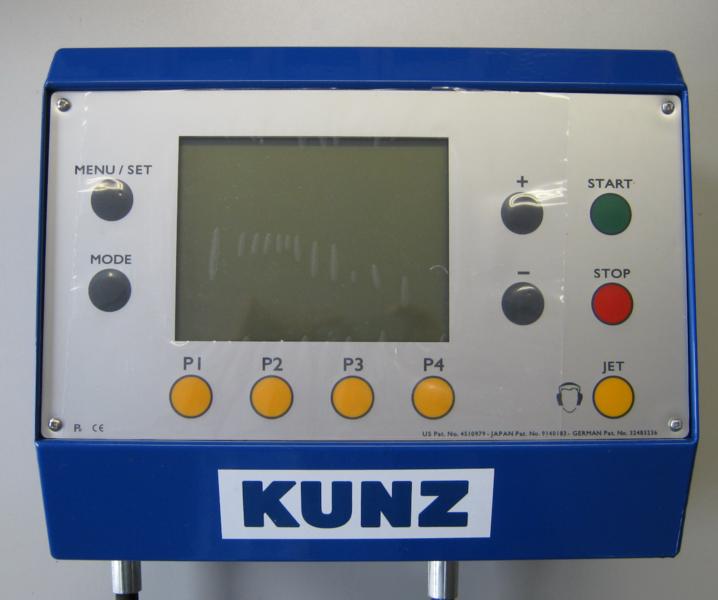

The KUNZ 230.5000 Automatic Tire Inflator (ATI) is designed for safe, precise inflation of aircraft tires up to 348 PSI (24 bar). Built for use with KUNZ TTS Safety Tire Inflation Cages (models 230.6100 and 230.8100), the ATI features a front-panel control system with LCD display for clear pressure monitoring. Each unit includes programmable presets for streamlined operation and is engineered for reliable integration into aircraft tire maintenance procedures.
Specifications
- Weight: 22 lbs (10 kg)
- Maximum Input Pressure: 435 PSI (30 bar)
- Maximum Airflow: 3.5 CFM (100 l/min)
- Maximum Inflation Pressure: 348 PSI (24 bar)
- Electrical Supply: 100V, 115V, 230V, single-phase, 50/60 Hz, or as per specifications (at additional costs)
| General Information | |
|---|---|
| Part # | 230.5000 |
| Manufacturer | KUNZ |
| Shipping Information | |
|---|---|
| Product Weight | 8 lbs. |
| Product Dimensions | 16 x 12 x 8 in. |
