KUNZ 230.5100 – Pressure Reducer for Automatic Tire Inflators
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

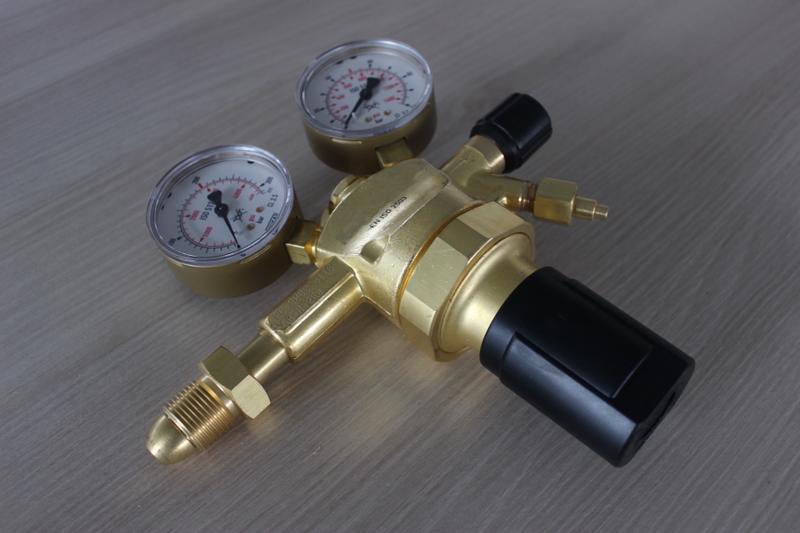

The KUNZ 230.5100 Pressure Reducer is designed for use with Automatic Tire Inflator units (230.5000 and 230.5200).
Ideal for users without existing pressure regulators, the Pressure Reducer is necessary when using large nitrogen bottles with a pressure of 4,351 psi (300 bar) – or any other kind of nitrogen connection above 435 psi (30 bar) – for filling aircraft tires.
Technical Specifications
- Flow Rate: 3.53 cfm (100 l/min)
- Maximum Input Pressure: 2,900 psi (200 bar)
- Maximum Working Pressure: 435 psi (30 bar)
| General Information | |
|---|---|
| Part # | 230.5100 |
| Manufacturer | KUNZ |
| Shipping Information | |
|---|---|
| Product Weight | 6 lbs. |
| Product Dimensions | 12 x 7 x 4 in. |
