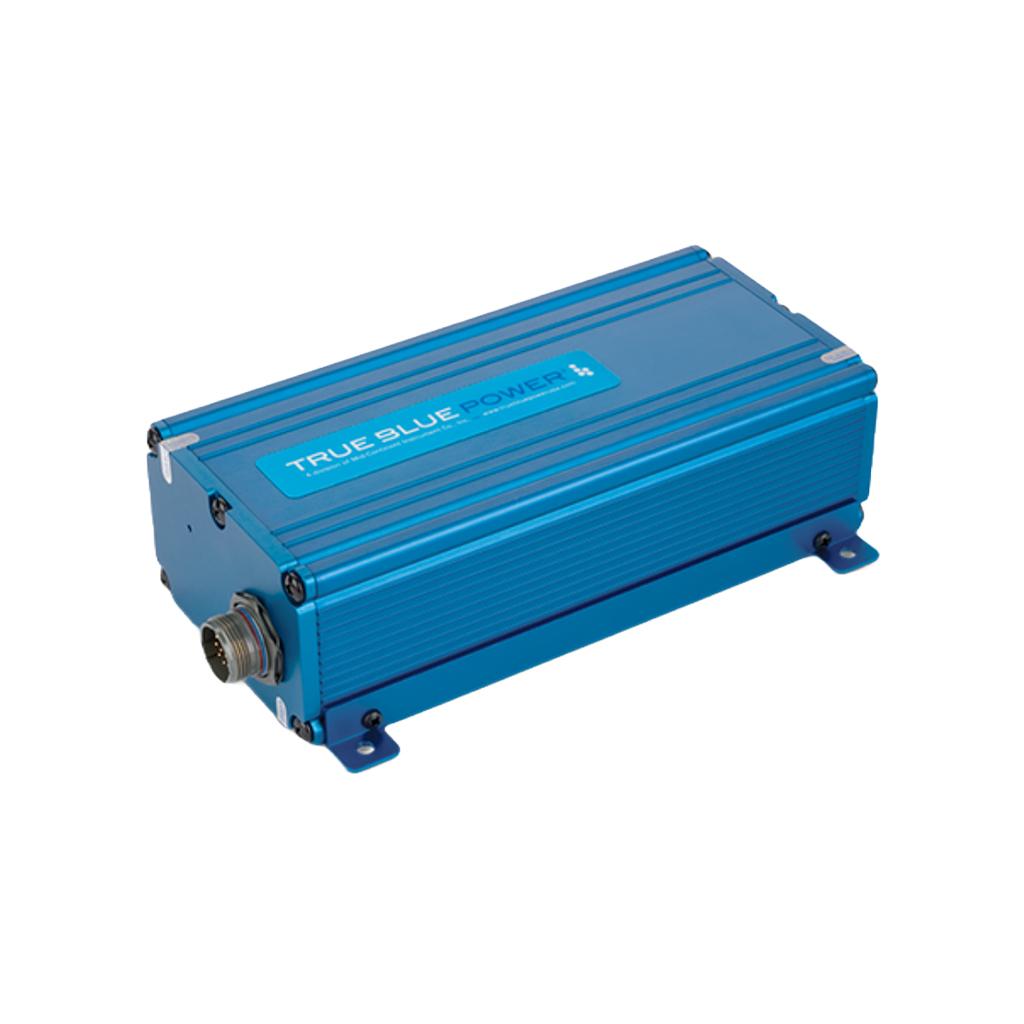

MCI 6430060-2 - Emergency Battery Power Supply, Model: TS60
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The power supply features advanced NanoPhosphate® lithium-ion cell chemistry that offers distinct advantages over older, nickel-cadmium designs. This includes significantly reduced maintenance costs, drastically improved life expectancy, low state-of-charge indication, and an on-unit visual status indicator. The TS60 Series utilizes aircraft power to recharge and maintain full capacity. It is a direct replacement for Honeywell Grimes power supplies and battery assemblie
Key Benefits
• Provides constant 6.6 VDC power for emergency lighting systems in the event of electrical system failure
• Utilizes advanced NanoPhosphate® lithium-ion cell chemistry
• Maintains full charge by recharging during normal flight operations
• Recharges 4x faster than competing units
• 2 year maintenance schedule
• 8 year (average) life expectancy
• Designed and built in Wichita, Kansas USA
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6430060-2 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8507600000 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Battery Life Expectancy | 8 years (average) |
| Capacity | 28 Watt-hour |
| Case | Anodized aluminum, extrusion, blue |
| Certification | FAA TSO C179b certified Class A-3A, RTCA-DO 311A qualified, RTCA-DO 160G qualified |
| Dimensions | 2.60” H x 8.75” L x 5.35” W (66.04mm x 222.25mm x 135.89mm) |
| Direct Replacement | Honeywell Grimes 60-5025-( ) |
| Input Voltage | 17 – 32 VDC |
| Mating Connector | 9019011-2 |
| Output Power | 6.6 VDC nominal, 7 amps max |
| Protection | Overcharge, over-discharge, over-current, short circuit, and temperature monitoring |
| Weight | 3.8 lbs (1.72 kg) |
