• Supplies 250 watts of power to multiple cabin accessories
• Compact design — lighter and smaller than competing inverters
• Lightweight — 2.2 lbs
• Remote On/Off feature
• 250 VA output power
• 87 – 90% efficiency
• Input Voltage: 20 – 36 VDC
• Input Current: 10 A at 28 VDC input
• Output Voltage: 115 VAC ± 3%
• Frequency: 400 Hz ± 0.1 Hz
• Single phase, true sine wave output
• Input transient, overload, and short-circuit protection up to 150% of rated load without damage
• Rated from –65°F to +160°F (-55°C to +70°C)
• FAA TSO-C73 certified and RTCA DO-160G qualified
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty
| General Information | |
|---|---|

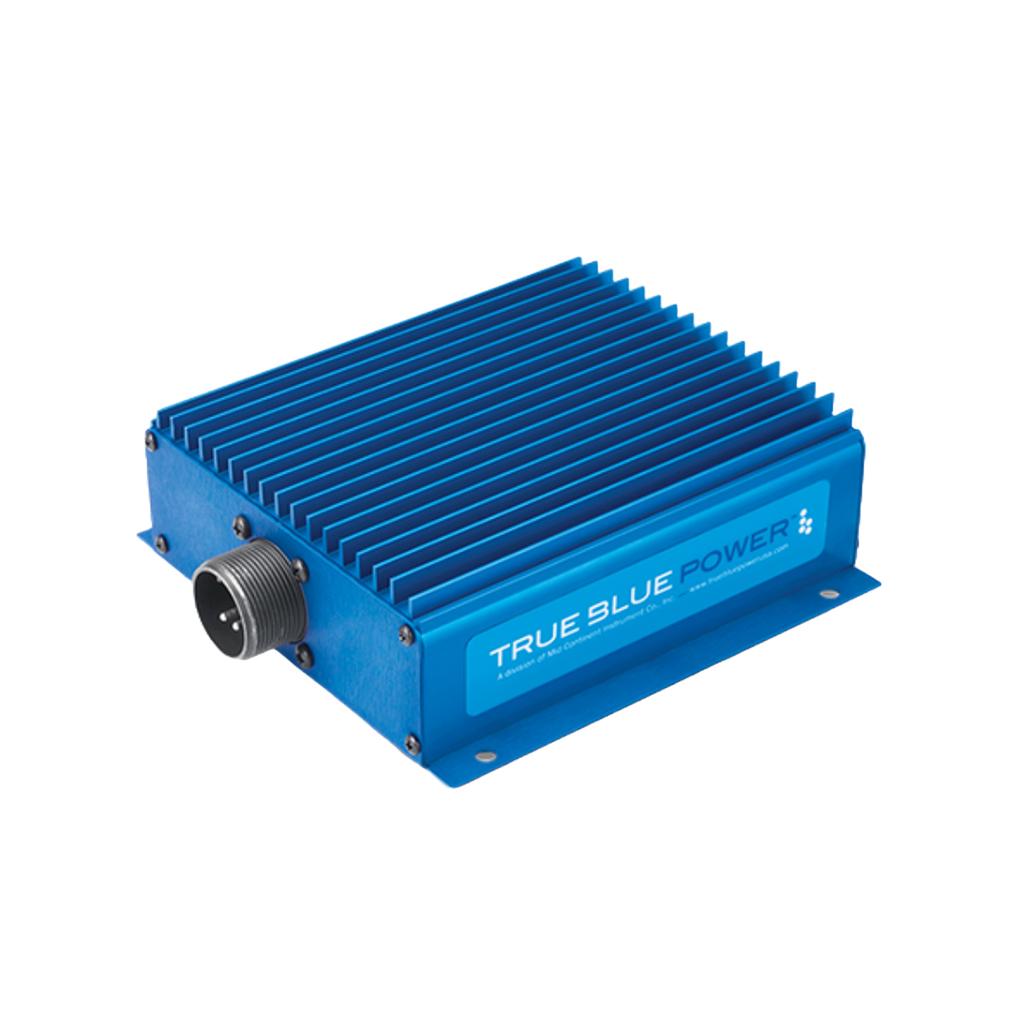

| Part # | 6430250-2 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8504409570 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Altitude | 55,000 ft |
| Case | Anodized aluminum extrusion, blue |
| Certification | FAA TSO-C73 certified, RTCA DO-160G qualified |
| Efficiency | 87 – 90% |
| Humidity | Tested to greater than 95% for 10 days, temperature cycle of 100°F to 150°F |
| Input Current | 10 A at 28 VDC input |
| Input Voltage | 20 – 36 VDC |
| Mating Connector | MS3106A-18-9S (MCI P/N 9016905-1, 9016905-2) |
| Output Frequency | 400 Hz ± 0.1 Hz |
| Output Power | 250 VA |
| Output Voltage | 115 VAC ± 3% |
| Output Waveform | Single phase, true sine wave, < 3% total harmonic distortion |
| Power Conversion Method | Current mode control |
| Protection | Input transient, overload, short-circuit protection (up to 150% of rated load without damage), Ground fault interrupter (GFI) protection |
| Temperature | -65°F to +160°F (-55°C to +70°C) |
| Weight | 2.2 lbs |
