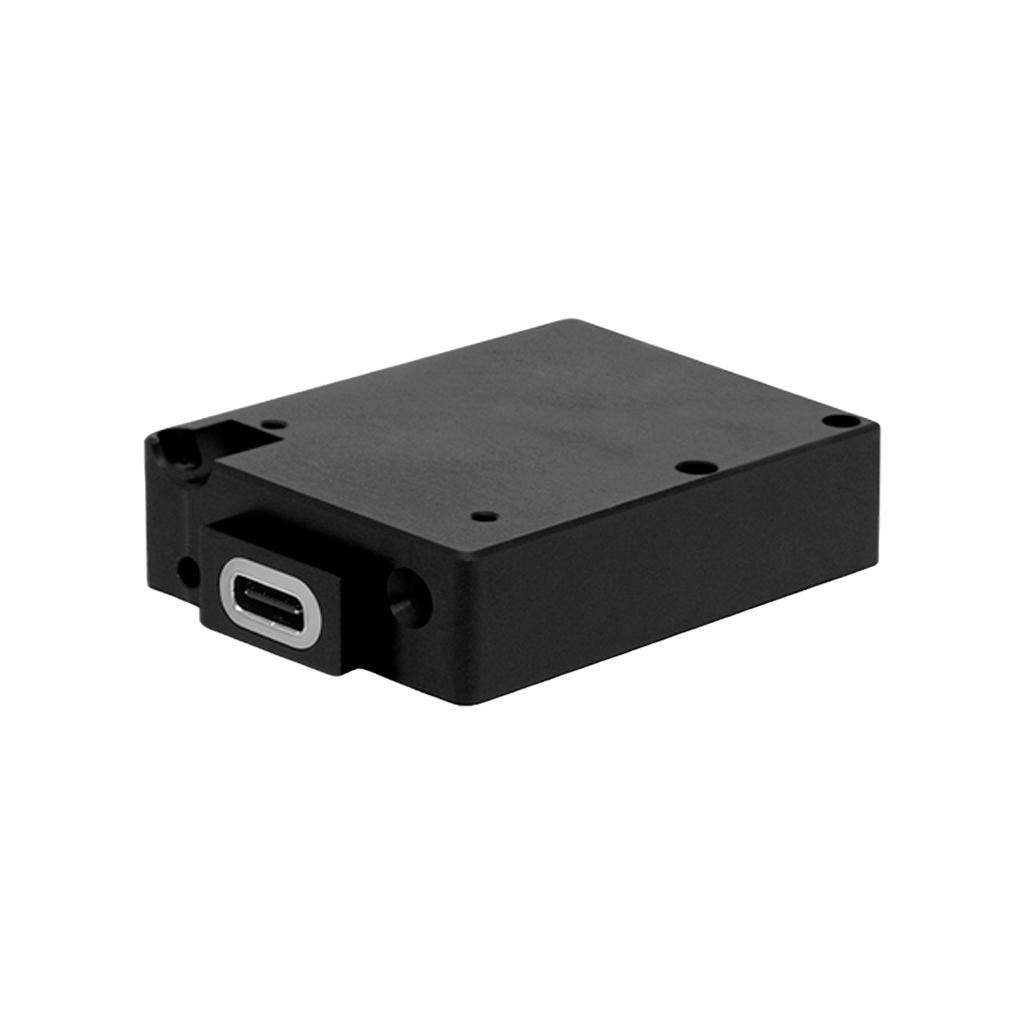

Mid-Continent 6430360-7 TA360 USB Type C Charger – Aviation-Grade USB-C Power

Mid-Continent 6430360-7 - TA360 USB Type C Charger

Upgrade your cockpit power with the Mid-Continent Instruments and Avionics 6430360-7 TA360 USB Type C Charger. Designed specifically for aviation environments, the TA360 delivers fast, reliable charging performance for the latest USB Type C devices — ensuring your tablets, smartphones, and electronic flight bags (EFBs) stay powered throughout every flight.

The TA360 sets the standard for cockpit power with TSO certification, advanced protections, and a compact, lightweight form factor. Whether you’re upgrading a general aviation aircraft, business jet, or helicopter, this USB charger provides pilots and passengers with modern charging capabilities in a robust, aviation-grade design.

Key Features

• High-Power USB-C Output: Delivers up to 3.0A at 5 VDC, optimized for fast charging of modern USB-C devices including iPads, tablets, and smartphones.

• TSO Certified: Approved to TSO-C71, ensuring reliable performance and compliance with rigorous aviation standards.

• Compact & Lightweight: Engineered with a sleek profile (1” diameter face) and weighing less than 3 ounces, the TA360 saves space and minimizes weight impact.

• Rugged & Reliable: Built with short circuit, over-current, over-temperature, and over-voltage protection for safe operation in demanding cockpit environments.

• LED Power Indicator: Provides clear visual confirmation of power status, even in low-light cockpit conditions.

• Reverse Polarity Protection: Safeguards aircraft electrical systems and charger electronics.

• Simple Installation: Mounts easily in a standard 0.800” diameter panel cutout, making it ideal for new installations and retrofits alike.

Specifications

• Part Number: 6430360-7

• Model: TA360

• USB Type: USB-C

• Output Voltage: 5 VDC

• Output Current: Up to 3.0 Amps

• Power Rating: 15 Watts max

• Input Voltage Range: 14 to 32 VDC

• Certifications: TSO-C71

• Weight: Less than 3 oz (85 grams)

• Faceplate Diameter: 1 inch (25.4 mm)

• Panel Cutout Diameter: 0.800 inches (20.3 mm)

• Operating Temperature: -40°C to +85°C

• Protections: Short circuit, over-current, over-voltage, over-temperature, reverse polarity

• LED Indicator: Illuminated ring indicates power status

Applications

The Mid-Continent 6430360-7 TA360 USB-C Charger is perfect for:

• General aviation cockpits needing reliable USB-C charging

• Corporate and charter aircraft looking to upgrade passenger amenities

• Rotorcraft requiring rugged, certified USB power solutions

• Retrofitting existing panels to support modern electronic devices

What’s in the Box

• Mid-Continent 6430360-7 TA360 USB-C Charger Unit

• Installation hardware and instructions

• Connector kit

Why Choose Mid-Continent’s TA360?

Mid-Continent Instruments and Avionics is trusted by pilots and operators worldwide for innovative, durable, and certified avionics products. The TA360 represents the latest in USB power technology, purpose-built for the aviation environment with safety and performance you can count on at every altitude.
