Mid-Continent 6431200-1 TI1200 Inverter | 1200W Aircraft AC Power

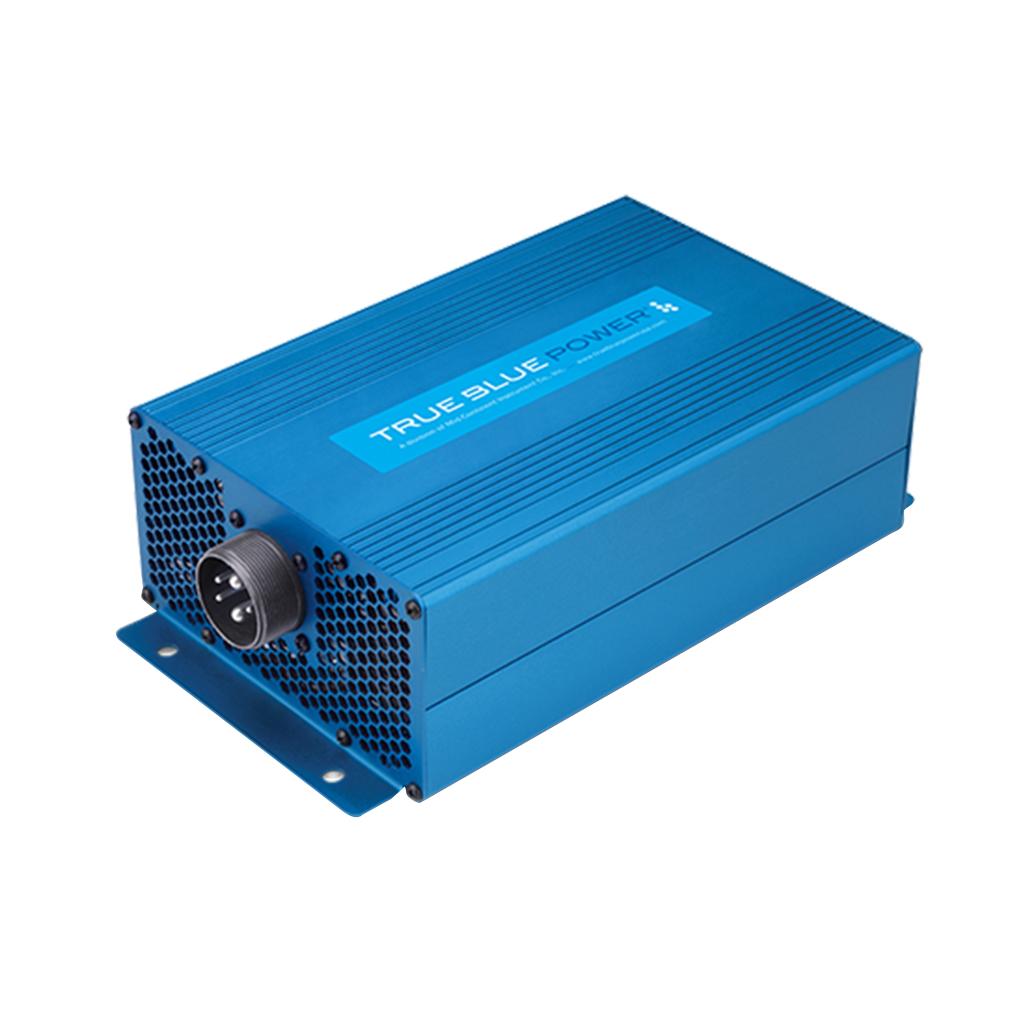

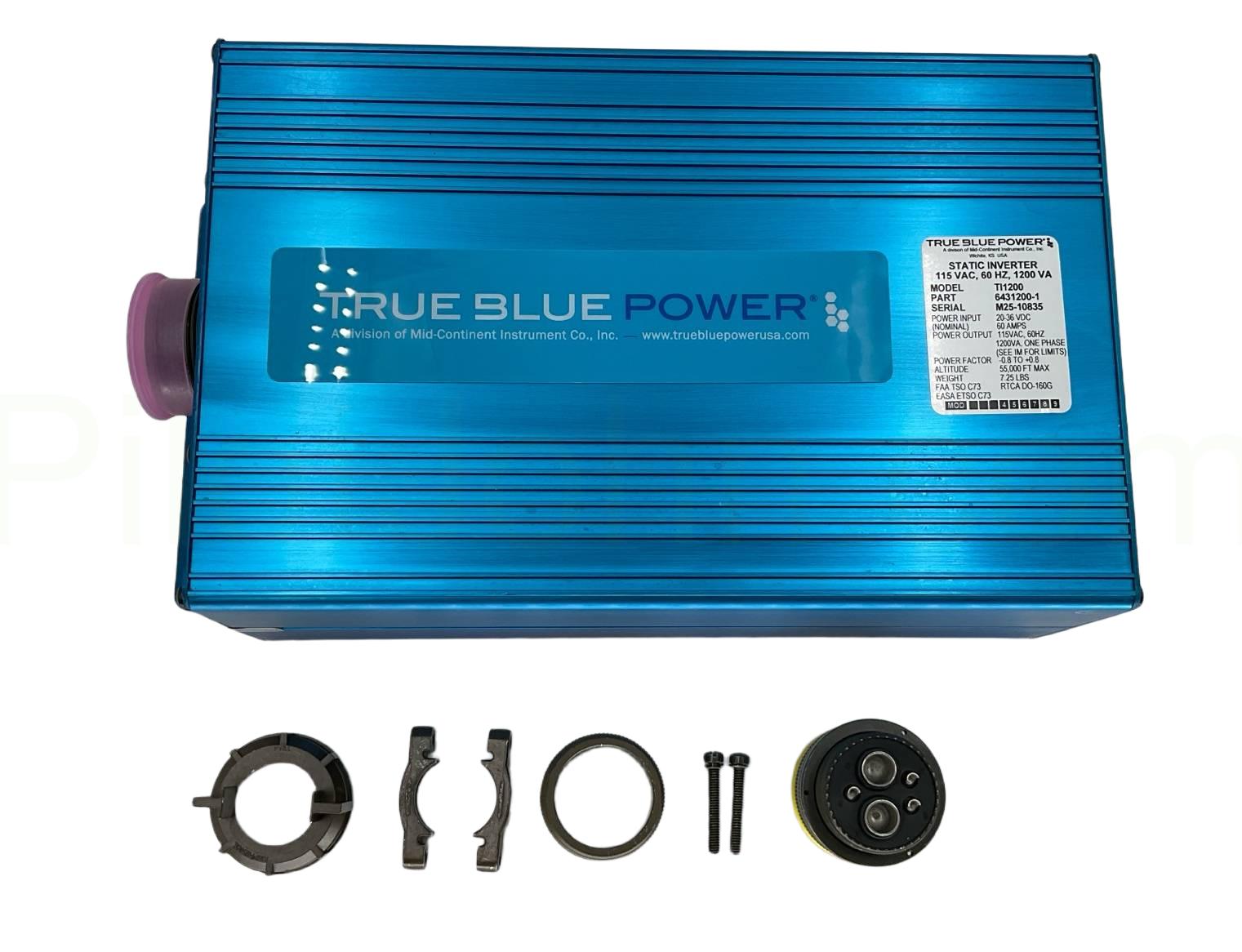

Mid-Continent Instrument & Avionics Model TI1200 (6431200-1)

DC-to-AC Inverter – Model TI1200 (1,200 Watt, 60 Hz)

The Mid-Continent Instrument and Avionics TI1200 DC-to-AC Inverter (P/N 6431200-1) delivers reliable, high-efficiency AC power for modern aircraft electrical demands. Designed to supply 1,200 watts of continuous power at 60 Hz, the TI1200 supports a wide range of onboard systems including cabin accessories, galley equipment, avionics, entertainment systems, and mission-critical aircraft equipment.

Engineered as a direct replacement for legacy inverter designs, the TI1200 features the same connector and mounting footprint, allowing for fast, straightforward installation with minimal aircraft downtime. Despite its compatibility with older systems, the TI1200 is significantly lighter and more compact, offering improved performance without the penalties of size or weight.

This inverter is FAA TSO-C73 and EASA ETSO-C73 certified and fully qualified to RTCA DO-160G, making it an ideal solution for EMS, law enforcement, VIP, and special mission aircraft where dependable AC power is essential. With built-in overload, short-circuit, and input transient protection, the TI1200 is designed to handle demanding operational environments while protecting both the inverter and connected equipment.

The TI1200 reflects Mid-Continent’s commitment to quality, innovation, and long-term reliability.

Key Benefits

• Supplies 1,200 watts of continuous AC power at 60 Hz

• Compatible with North American voltage and frequency standards

• Ideal for EMS, law enforcement, VIP, and special mission aircraft

• Compact design – approximately 30% smaller than competing inverters

• Lightweight – only 7.3 lbs, reducing overall aircraft weight

• High efficiency – up to 88%, minimizing power loss

• Robust protection against input transients, overloads, and short circuits

• Handles up to 150% of rated load without damage

• Optional remote On/Off capability

• Direct replacement footprint for legacy inverter installations

• Designed and built in the USA

Specifications

• Manufacturer: Mid-Continent Instrument and Avionics

• Part Number: 6431200-1

• Model: TI1200

• Type: DC-to-AC Inverter

• Continuous Output Power: 1,200 watts

• Output Frequency: 60 Hz

• Efficiency: Up to 88%

• Weight: 7.3 lbs

• Certifications:

  • FAA TSO-C73

  • EASA ETSO-C73

  • RTCA DO-160G Environmental Qualification

• Protection Features:

  • Input transient protection

  • Overload protection

  • Short-circuit protection

• Installation: Same connector and footprint as legacy designs
