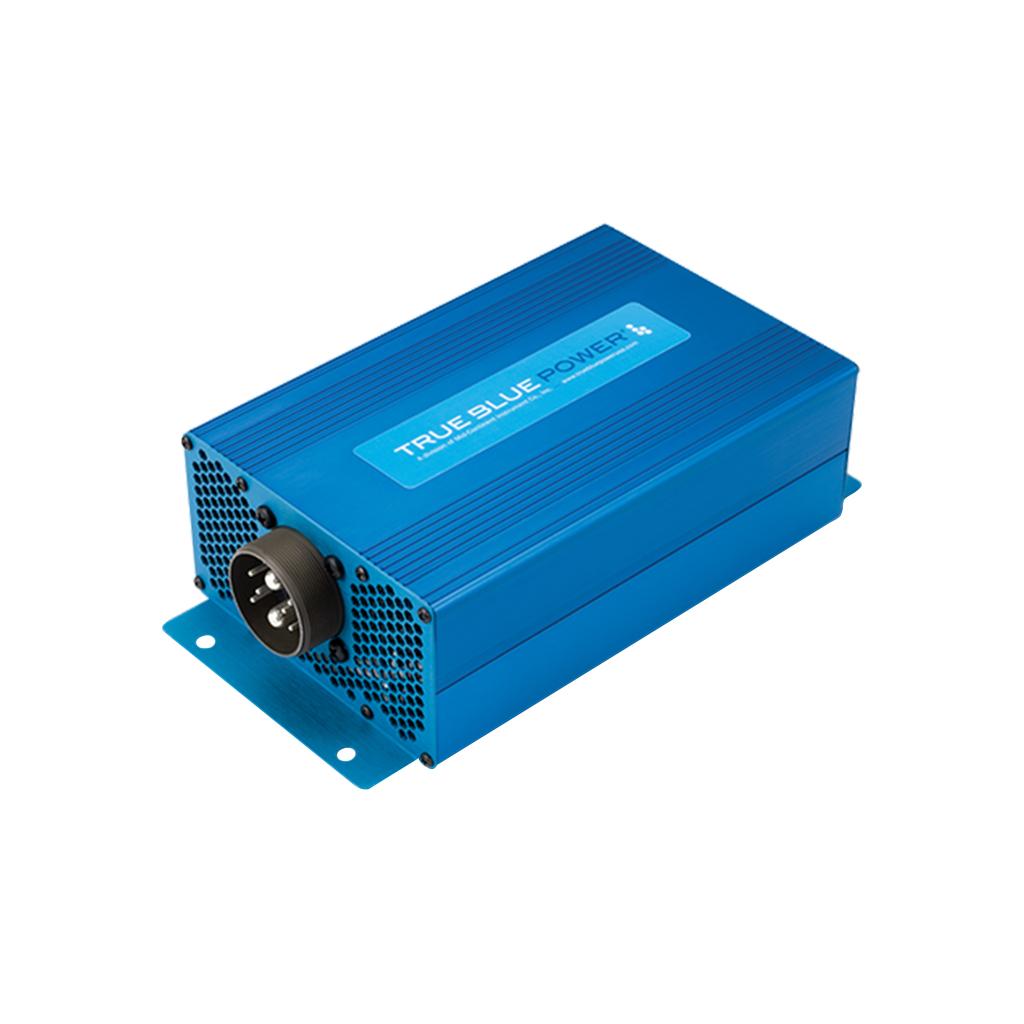

MCI 6432001-1 - AC-to-DC Voltage Converter, Model: TC2000
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Supplies 2,000 watts of 28-volt DC power
• Lightweight — 9.9 lbs
• Input transient, temperature monitoring, short circuit and overload protection (up to 110% of rated load without damage)
• 88 – 90% efficiency
• Remote On/Off
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6432001-1 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8504409530 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Altitude | 35,000 ft |
| Case | Anodized aluminum extrusion, blue |
| Certification | FAA TSO-C71 certified, RTCA DO-160G qualified |
| Dimensions | 14.00” L x 6.32” W x 3.46” H (355.60 mm L x 160.53 mm W x 87.88 mm H) |
| Input Current | 21 A Nominal |
| Input Voltage | 100 – 250 VAC, 47 – 800 Hz |
| Mating Connector | 9018993-1, 9018550-2 |
| Output Power | 2,000 watts |
| Output Voltage | 28 VDC ± 0.4 VDC |
| Temperature | -67°F to +158°F (-55°C to +70°C) |
| Weight | 9.9 lbs (4.5 kg) |
