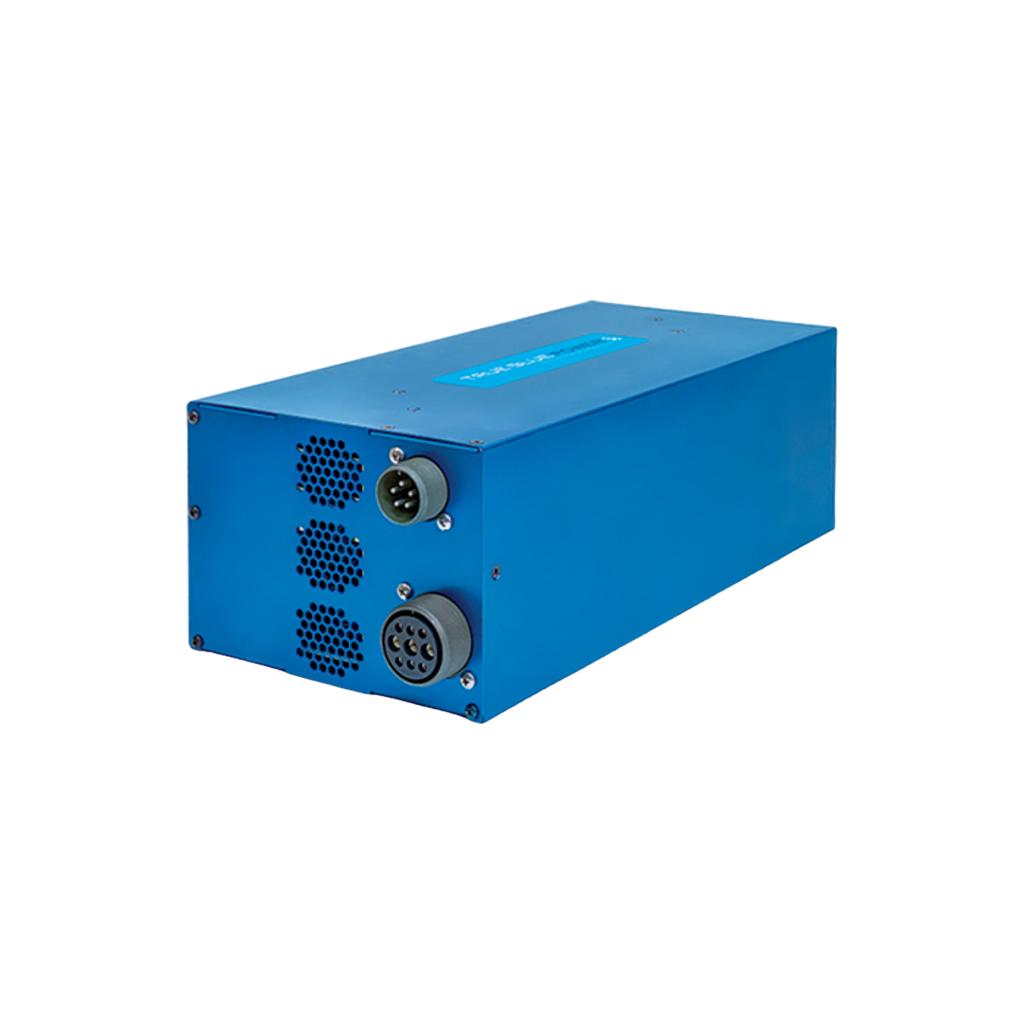

MCI 6434000-1 - AC-to-AC Frequency Converter, Model: TFC4000
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• The QUIETEST. The LIGHTEST. The MOST RELIABLE.
• 4,000 watts of output power
• 13 A input phase current
• 93% efficiency
• Single phase, true sine wave < 3% total harmonic distortion output waveform
• -0.8 to +0.8 power factor
• Remote On/Off
• Short circuit, under-voltage, over-voltage, overload (up to 150% for 5 minutes, without damage), DC offset protection
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6434000-1 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8504409580 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Altitude | 55,000 feet |
| Case | Anodized aluminum, blue |
| Certification | FAA PMA approved, RTCA DO-160G |
| Input Phase Current | 13 A |
| Input Voltage | 115 VAC (L – N), 360 – 800 Hz, 3 Phase |
| Mating Connector | 9019110-4, 9019507-2 |
| Output Power | 4,000 watts |
| Output Voltage | 115 VAC, 60 Hz, 4 kVA |
| Temperature | -67°F to +185°F (-55°C to +85°C) |
| Weight | 18.9 lbs (8.57 kg) |
