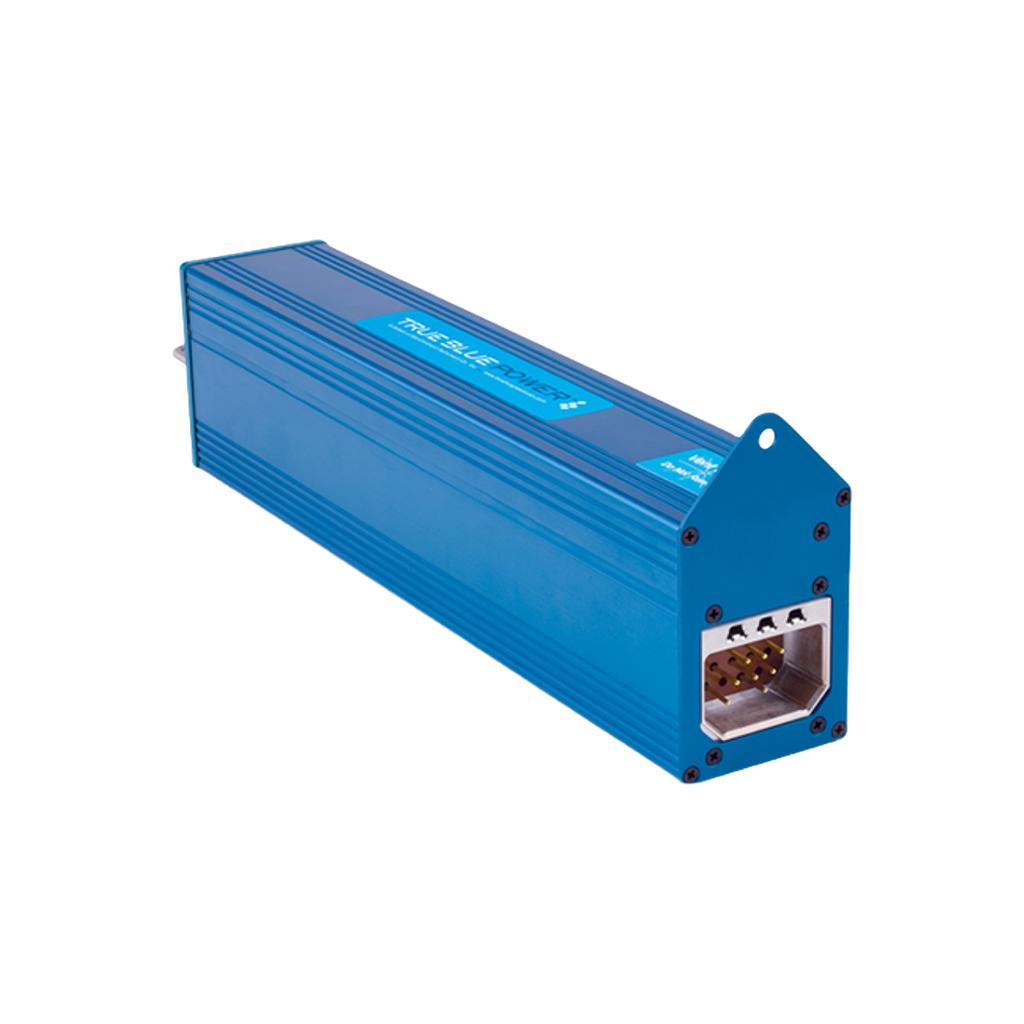

Keep your critical and standby equipment running in the event of a power failure with the TS835 Emergency Power Supply from True Blue Power. The MD835-5 automatically provides 4.5 amp-hours of 24.5 VDC power for your most essential systems and provides 3.0 – 5.5 VDC adjustable lighting output. This Emergency Power Supply is also a direct replacement for the Jet PS835 Series.
Key Benefits
- Automatically provides 24.5 VDC power for critical or standby equipment in the event of aircraft power failure
- 4.5 amp-hour NanoPhosphate® lithium-ion battery
- Includes an integrated 5V output
- Utilizes advanced NanoPhosphate® lithium-ion technology — an energy storage solution with superior safety and abuse tolerance compared to metal oxide lithium-ion chemistries
- Maintains full charge by recharging during normal flight operations
- Lightweight — 63% lighter than legacy lead-acid designs
- Direct replacement for L-3 Avionics/JET PS-855 (same rack mount and connector)
- Two-year maintenance schedule
- 8-year (average) life expectancy
- Designed and built in Wichita, Kansas USA
- Five-year limited warranty
| General Information | |
|---|---|
| Part # | MD835-5 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Specifications | |
|---|---|
| Capacity | 4.5 amp-hour battery nominal |
| Case | Anodized aluminum, blue |
| Certification | FAA TSO C179a certified, EASA ETSO C179a certified, ANAC TSO C179a certified, Part 23 AML STC certified, RTCA/DO-160F qualified, RTCA/DO-311 qualified |
| Dimensions | 3.1” H x 12.7” L x 2.4” W (approximate) |
| Input Voltage | 24 – 32 VDC, 15 amps max |
| Life Expectancy | 8 years (average) |
| Mating Connector | DPXB13-33S-0001 |
| Optional Vent Kit | MCI P/N 9017983 |
| Output Power | 24.5 VDC nominal, 20 amps max, 3.0 – 5.5 VDC adjustable lighting output, 5.0 amps max |
| Protection | Factory replaceable fuse |
| Rack Mount Installation | 1/4 ATR rack |
| Remote Test Switch | Remote-mounted self-test switch required, MCI P/N 9017176 or equivalent |
| Weight | 4.8 lbs — 8 pounds lighter than legacy lead-acid designs |
