MCM 70000-30 – 28V DC Aircraft GPU Cable with Aircraft Plug Head, 4/0 AWG, 30 ft.
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

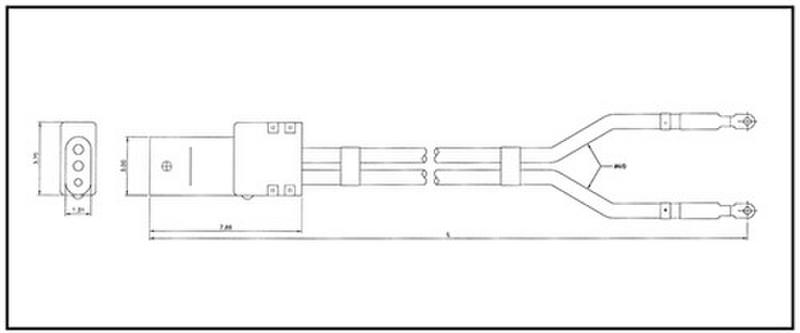

The MCM 70000-30 is a 30-ft. aircraft cable for use with ground power units (GPUs) for military and commercial-style aircraft using a 28.5V DC connector/adapter. The individual power conductors are banded together at approximately 2-ft. intervals with nonmetallic bands.
The connector is solidly attached to the output end of the cable and the other end is supplied with lugs for easy mounting in the GPU. The cable assembly is composed of two 4/0 AWG single-conductor power wires. All conductors comply with MIL-C-5756 standards.
FEATURES:

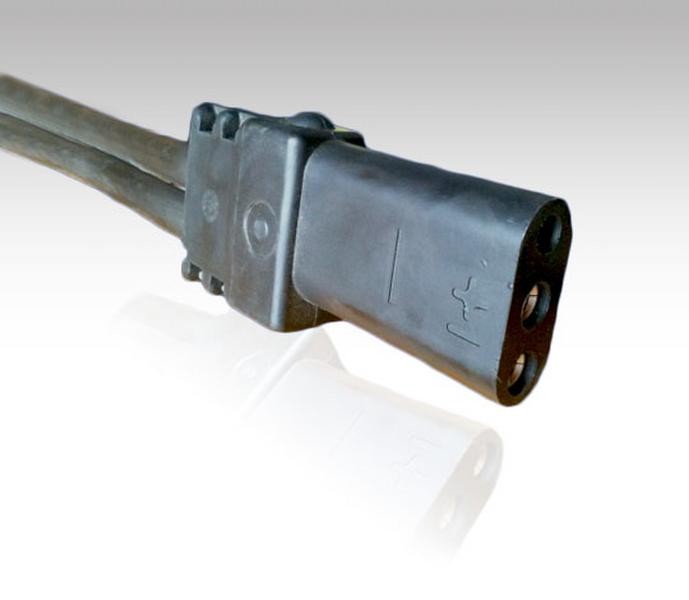

- Aircraft plug head included
- Strain relief protects the cable from stress and damage
- Corrosion-resistant, silver-plated contacts provide high electrical and thermal conductivity
- Hypalon material performs at a wide range of temperatures
- Meets MIL-C-7974D standards
| General Information | |
|---|---|
| Part # | 70000-30 |
| Manufacturer | MCM Engineering |
| Shipping Information | |
|---|---|
| Shipping Weight | 75 lbs. |
| Shipping Dimensions | 36 x 36 x 8 in. |
| Schedule B | 8543909000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Cable Length | 30 ft. (9.1 m) |
| Wire Gauge | 4/0 AWG |
