The McNally 1006772 Pylon Torque Adapter Kit is a specialized torque adapter set designed to apply calibrated torque to pylon fasteners and related hardware in accordance with aircraft maintenance procedures. The kit combines Torque Adapter A and Torque Adapter B with a dedicated case to create a complete solution for pylon torqueing tasks.
By translating torque wrench output to hard-to-access or offset pylon fasteners, the kit enables technicians to achieve the required torque values while accounting for adapter geometry. This improves consistency and reduces the risk of under-torquing or over-torquing critical structural connections on rotorcraft pylons and similar assemblies.
Key Features

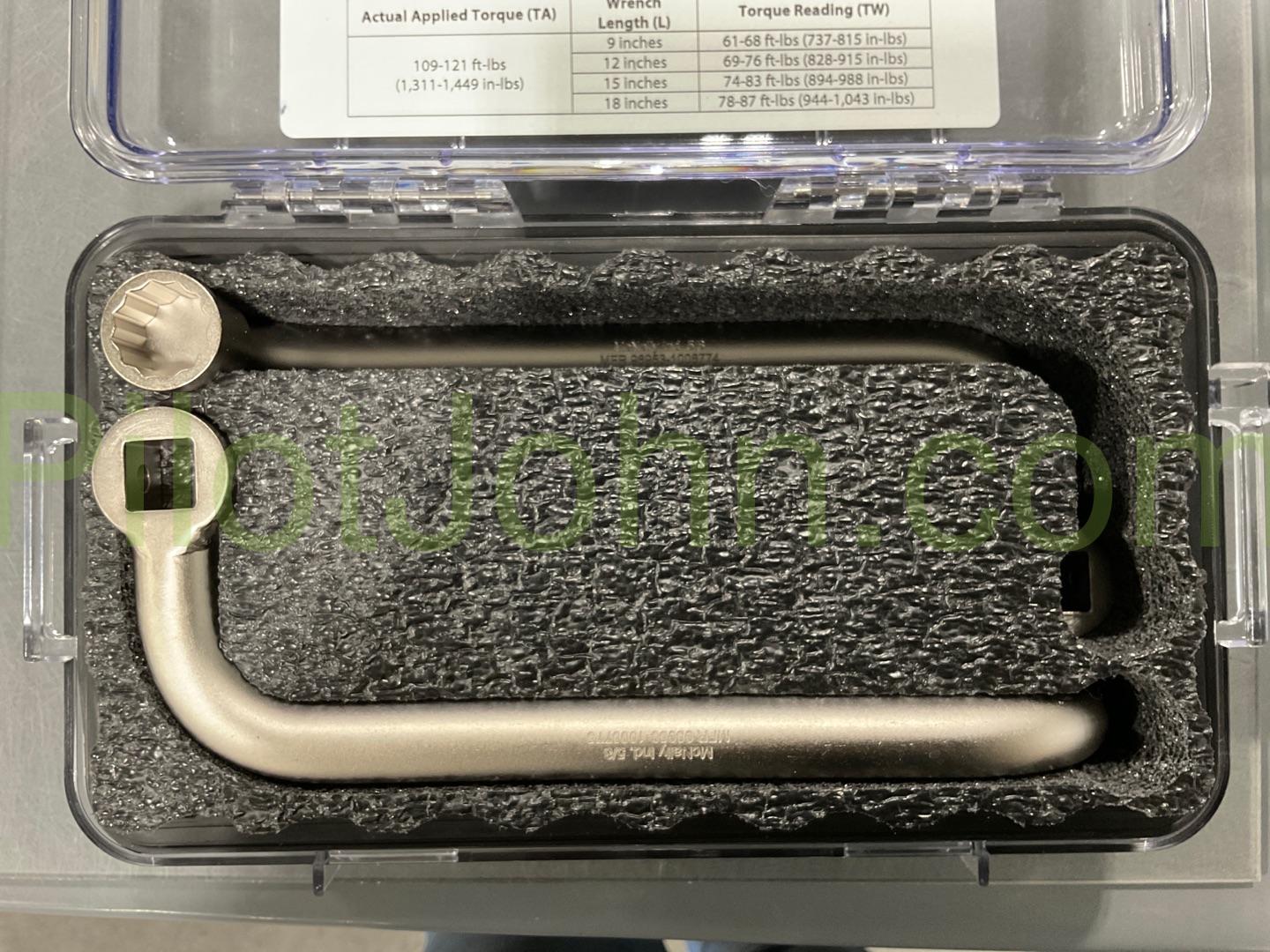

- Includes Pylon Torque Adapter A (1006774), Pylon Torque Adapter B (1006775), and a dedicated case for organized storage and transport
- Designed to work with standard torque wrenches, extending their reach and orientation to pylon fasteners as specified in technical manuals
- Adapter geometry is intended to support accurate torque application when used with the appropriate correction factors and procedures
- Rugged case protects the adapters and simplifies tool control, making it easy to track and deploy the kit
- Ideal for helicopter pylon installation, adjustment, and inspection tasks in aviation maintenance and depot environments
- Also suitable for other industries where pylon-like structures or offset fasteners require precise torque application
The 1006772 Pylon Torque Adapter Kit equips aviation maintenance professionals with a focused, well-organized solution for pylon torquing operations. With matched adapters and a protective case, the kit supports accurate torque application, improves ergonomics, and helps maintain structural integrity in critical pylon connections.
