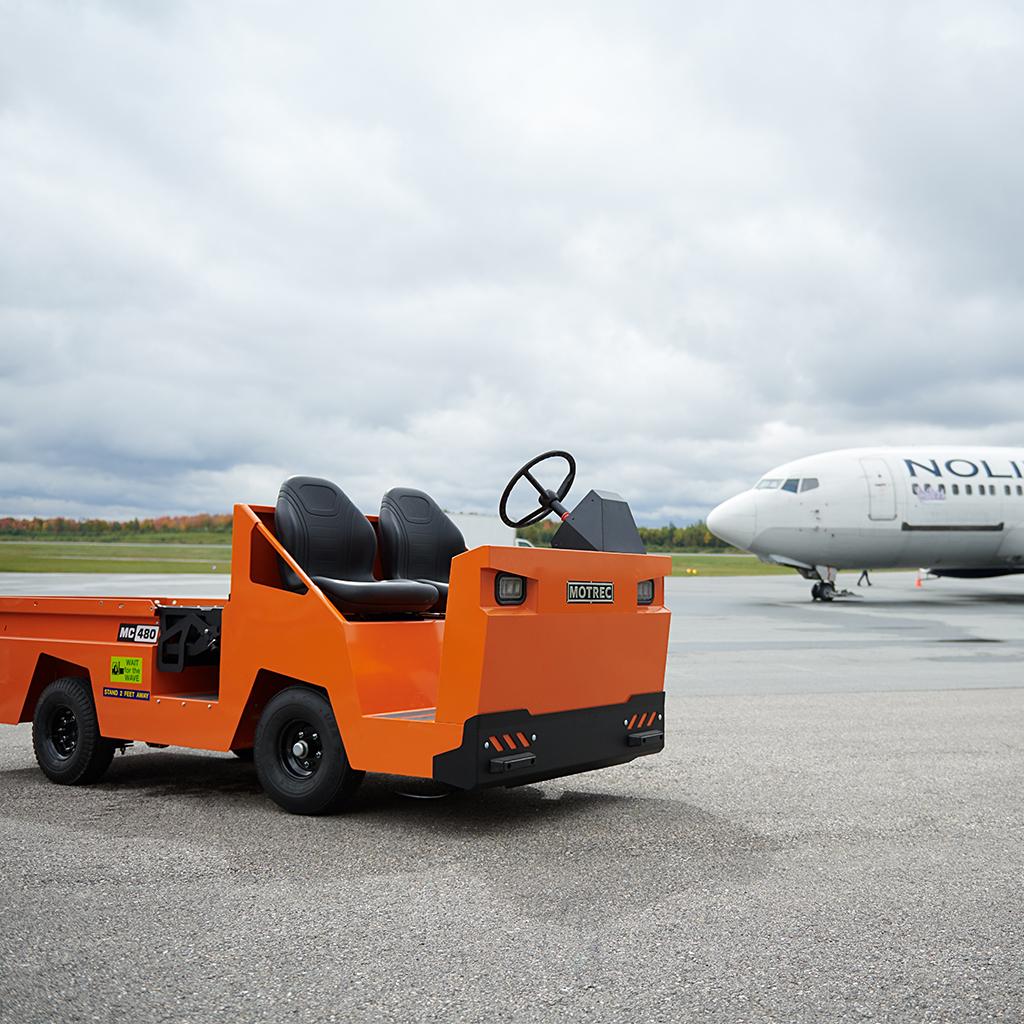

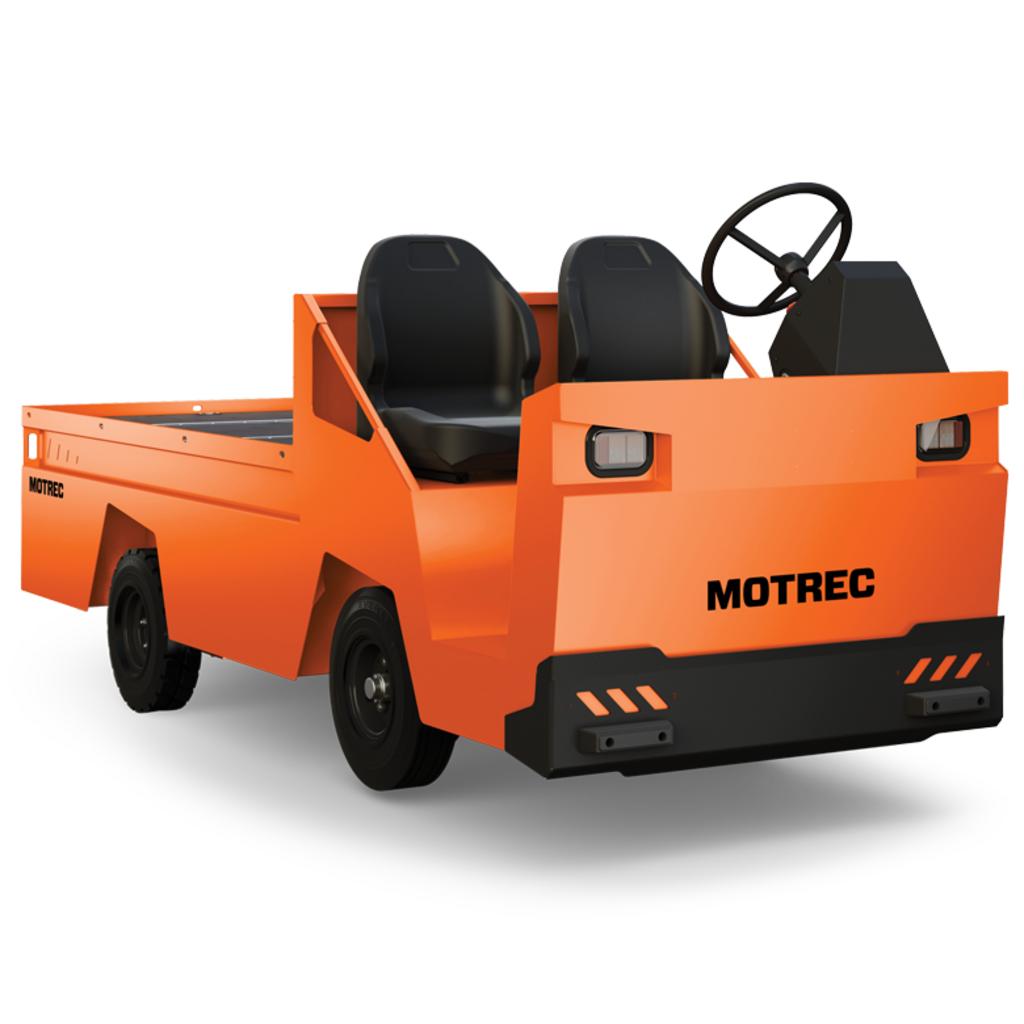

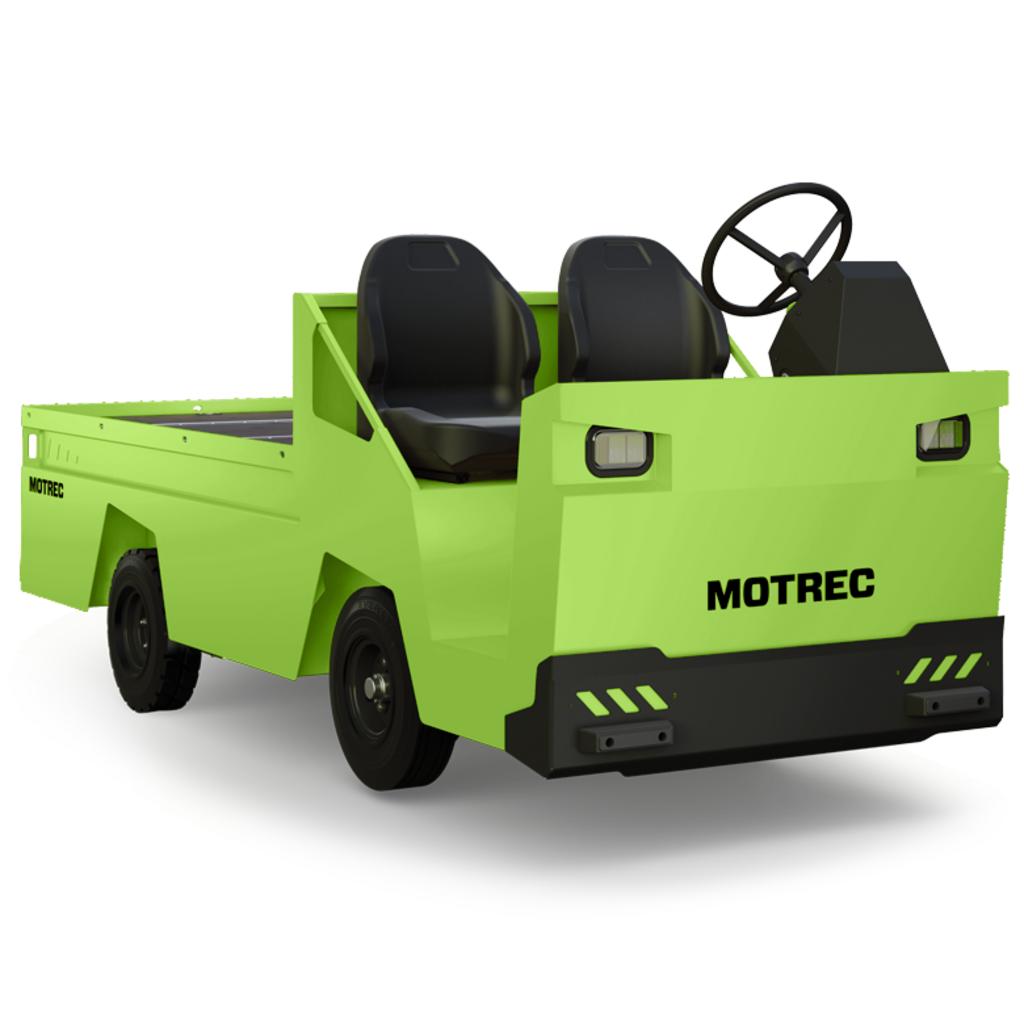

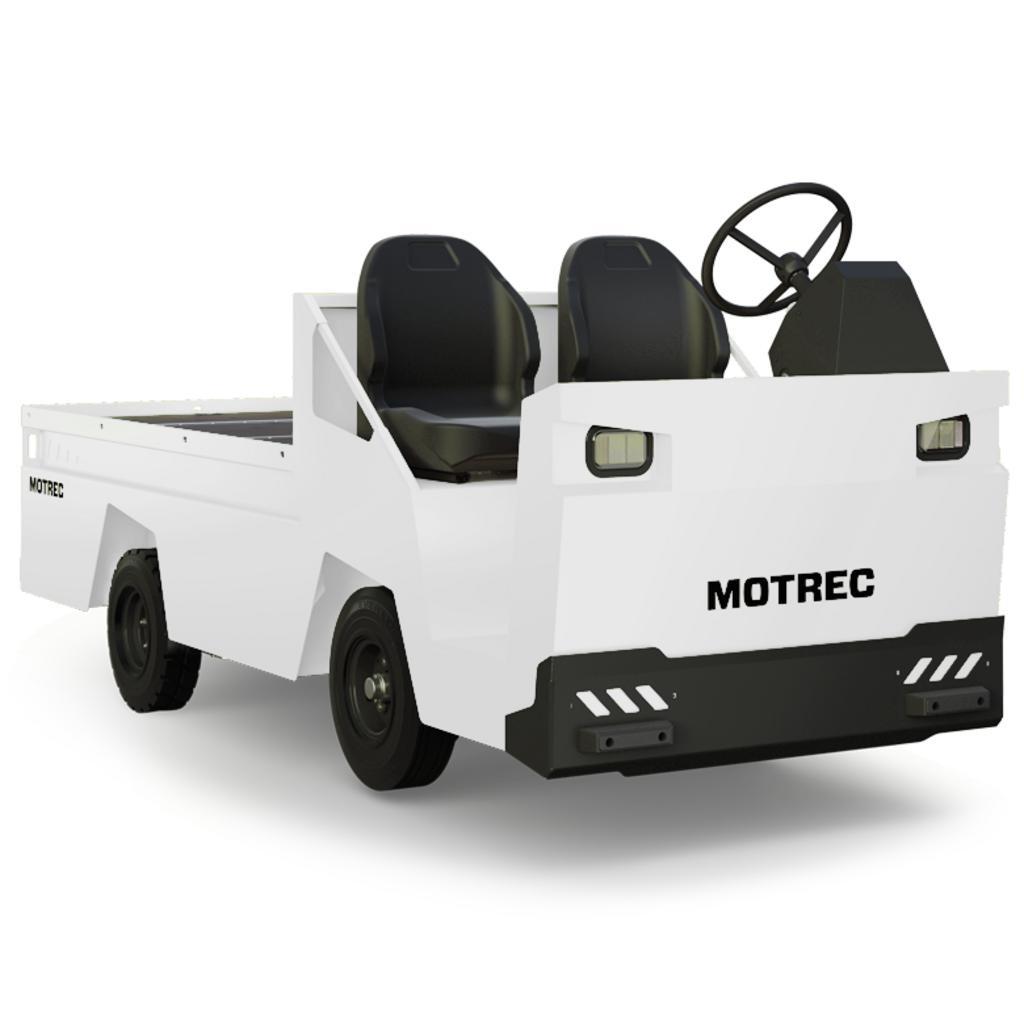

Motrec - MC-480 HD Electric 48V Baggage and GSE Towing Vehicle

Part #: MC-480-48V-HD
No reviews
0 Questions, 0 Answers
Available for Order
Lead Time: Chat now or request quote
CofC and 8130 available at no cost
Worldwide shipping available
Ask Our Aviation Specialists
Live Chat | +1.252.585.4553 | Email

Need a Quote?

Use this form to get a quote by email today.
First Name:*
Last Name:*
Email:*
Company Name: (optional)
Questions/Comments: (optional)

Introducing the Heavy Duty version of the MC-480, an unparalleled burden carrier designed for robust performance in demanding environments. Engineered with a reinforced all-steel unibody and advanced technology, this high-efficiency AC vehicle now features a strengthened axle and a robust 15hp brushless motor, setting a new standard for power and durability.

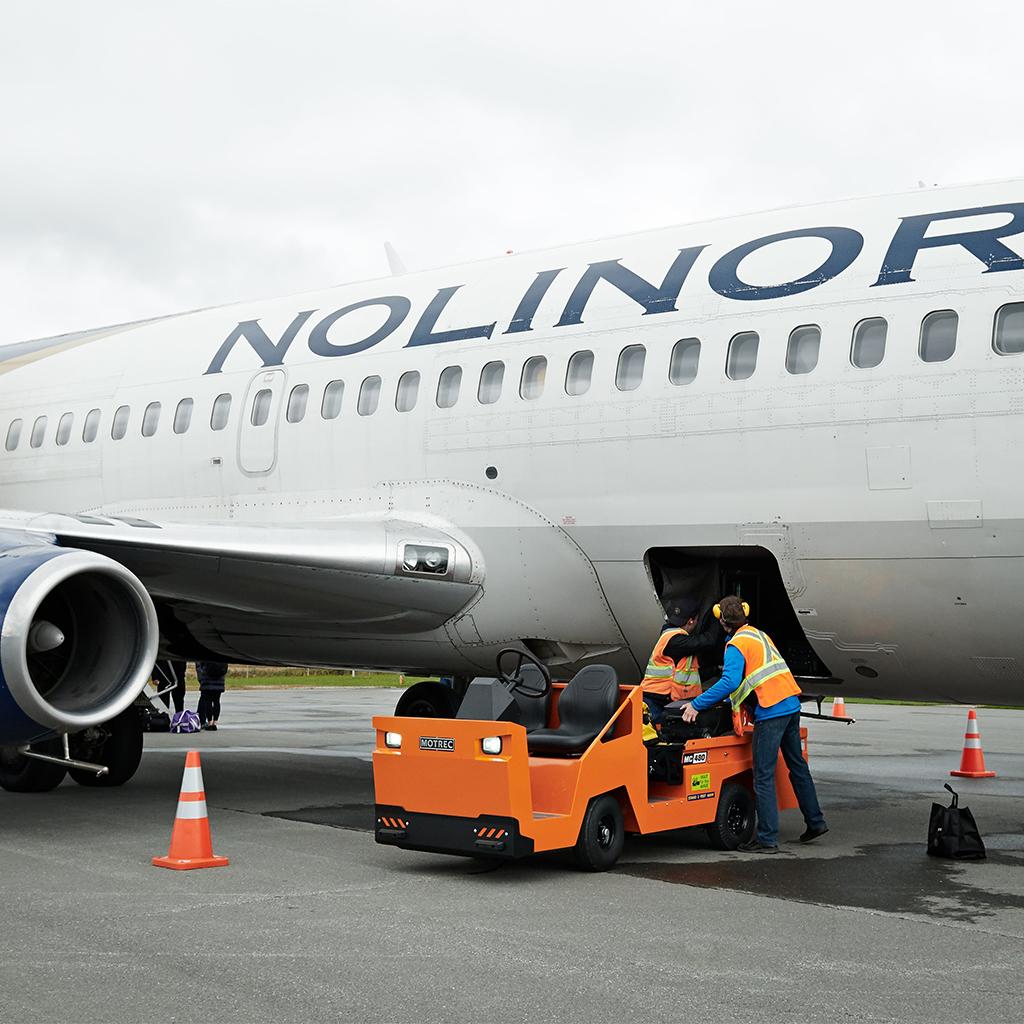

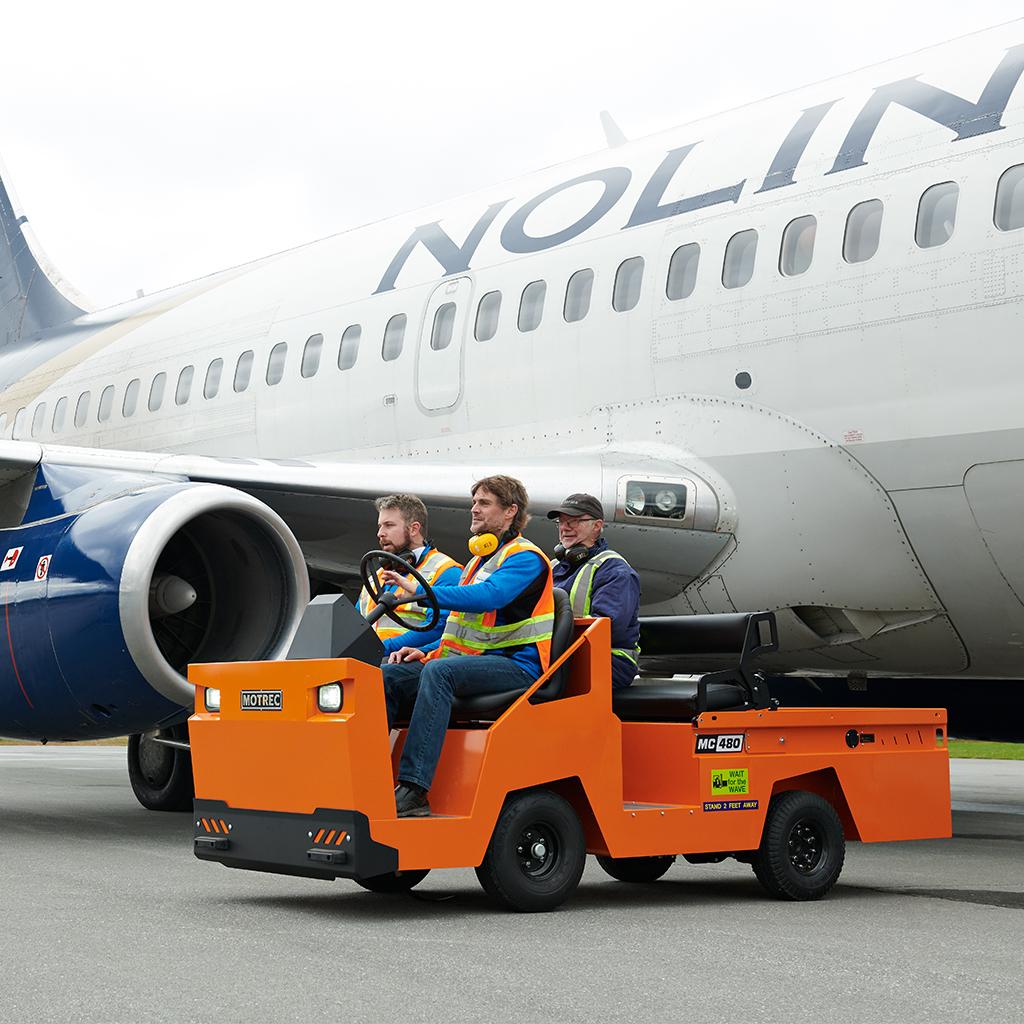

On busy airport tarmac, these electric utility vehicles are silent workhorses. They handle everything from baggage to heavy-duty ground equipment like ground power units (GPUs), air starts, bottle trailers, MX trailers, tire trailers, etc (up to 6,000 lbs). Their compact size and electric power allow them to navigate tight spaces around hangers and access even hard-to-reach areas around airplanes. They can even be customized with seats or compartments to become mobile crew shuttles or mini-supply trucks, delivering parts and tools directly to where they're needed most. Talk to one of our aircraft specialists about customizable options for this vehicle.

The Heavy Duty MC-480 retains its smart modular design, ensuring versatility in various applications. The strengthened axle enhances its load-bearing capacity, making it a powerhouse for heavy-duty tasks. The 15hp brushless motor not only delivers exceptional power but also reinforces the vehicle's reliability in challenging conditions.

Operators will appreciate the spacious and ergonomic driver compartment, providing comfort during extended shifts. The vehicle's features include a high-efficiency AC powertrain, a smooth suspension, and an easy-access plug with an LED charge indicator on the steering console. The roomy driver compartment offers sliding premium high-back seats and adjustable tilt steering for operator convenience.

Safety remains a top priority, with recessed LED dual headlights, a reinforced bolt-on front and rear bumper, a raised amber strobe light, and dual tail lights. The Heavy Duty MC-480 is not just a workhorse; it's a commitment to security and operational efficiency. Just like its counterpart, customization is key – this Heavy Duty version can be tailored to meet your exact requirements, offering unlimited configurations. With a 3-year warranty and an available EE rating, the Heavy Duty MC-480 stands as the ultimate choice for those seeking unparalleled strength, safety, and reliability in heavy-duty applications.

  • The perfect ergonomics

    Complete console on steering column to put all controls and displays conveniently right where your figner and eyes are. Now with a tilted steering column for a more ergonomic and natural driving posture to reduce operator fatigue and strain.
  • The Do-It-All Vehicle

    Every Motrec vehicle is engineered to offer years of reliable, low-maintenance performance to help you boost productivity and lower TCO.

Options & Accessories

Configure your equipment to exactly what you need and take away things you dont need. Every Motrec product is completely customizable for any application.

Steel Cab w/ Doors

Steel Cab w/ Doors

RV mirror, side mirrors and wiper.
Fender undercoating.

MC480-CAB01

Rear hitch

Rear hitch

Rear Clevis type hitch with safety spring

360-086

Stobe light

Stobe light

Pole mounted strobe light

360-026-AC

Seat belts

Seat belts

Seat belts, retractable, two passengers

360-049

MC 480 models Passengers Load capacity Towing capacity Speed Turning radius
48V LD 4 2,000 lb 6,000 lb 10 mph 127"
48V 4 3,500 lb 6,000 lb 10 mph 127"
48V Lithium 4 3,500 lb 6,000 lb 10 mph 127"
48V HD 4 5,000 lb 6,000 lb 10 mph 127"
48V LD
Passengers 4
Load capacity 2,000 lb
Towing capacity 6,000 lb
Speed 10 mph
Turning radius 127"
48V
Passengers 4
Load capacity 3,500 lb
Towing capacity 6,000 lb
Speed 10 mph
Turning radius 127"
48V LITHIUM
Passengers 4
Load capacity 3,500 lb
Towing capacity 6,000 lb
Speed 10 mph
Turning radius 127"
48V HD
Passengers 4
Load capacity 5,000 lb
Towing capacity 6,000 lb
Speed 10 mph
Turning radius 127"
48V LD 48V 48V Lithium 48V HD
POWERTRAIN
Motor 15 hp Brushless AC motor
Drive Axle Helical gear differential
Transmission Direct drive
Controller AC Electronic speed controller
ENERGY
Voltage 48V
Battery Eight 6V-225AH batteries Lithium 48V-120Ah 6.2Kwh, Lithium 48V-180Ah 9.3Kwh, Lithium 48V-360Ah 18.6kwh Eight 6V-225AH batteries
Charger High-frequency charger (85-265VAC / 45-65Hz, 1kw), Built-in and automatic High-frequency charger (85-265VAC / 45-65Hz, 1kw), Built-in and automatic 48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 2.4Kwh High-frequency charger (85-265VAC / 45-65Hz, 1kw)
CHASSIS
Body All-steel unibody construction, Powder coating
Suspension Front dual leaf springs suspension, Rear dual leaf springs suspension
Brakes Rear wheel hydraulic drum brakes, Hand lever parking brake, Regenerative braking Rear hydraulic drum brakes, Electromagnetic parking brake with manual hand release, Regenerative braking Rear disc brakes, Electromagnetic parking brake with manual hand release, Regenerative braking
Wheels 5.7x8 LRD pneumatic tires 500x8 solid softy rubber wheels on split rims
Steering Automotive steering wheel, Tilted steering column
Seats Two bucket seats on slide adjusters Two premium seats on slide adjusters
EQUIPMENT
Lights Dual LED headlights, Tail/brake lights, Dual back-up lights
Indicators Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability
Accessories Console on steering column, Bolt-on front bumper, DC/DC converter, LED charge indicator
Safety Deadman seat switch, Reverse alarm, Horn
Specifications and standard equipment are subject to change without notice.
48V LD 48V 48V Lithium 48V HD
VEHICLE DIMENSIONS
Height 54"
Length 126"
Width 45"
Wheel Base 56"
DECK DIMENSIONS
Deck Height 31"
Deck Length 76"
Deck Width 45"
Motor
48V LD 15 hp Brushless AC motor
48V 15 hp Brushless AC motor
48V Lithium 15 hp Brushless AC motor
48V HD 15 hp Brushless AC motor
Drive Axle
48V LD Helical gear differential
48V Helical gear differential
48V Lithium Helical gear differential
48V HD Helical gear differential
Transmission
48V LD Direct drive
48V Direct drive
48V Lithium Direct drive
48V HD Direct drive
Controller
48V LD AC Electronic speed controller
48V AC Electronic speed controller
48V Lithium AC Electronic speed controller
48V HD AC Electronic speed controller
Voltage
48V LD 48V
48V 48V
48V Lithium 48V
48V HD 48V
Battery
48V LD Eight 6V-225AH batteries
48V Eight 6V-225AH batteries
48V Lithium Lithium 48V-120Ah 6.2Kwh, Lithium 48V-180Ah 9.3Kwh, Lithium 48V-360Ah 18.6kwh
48V HD Eight 6V-225AH batteries
Charger
48V LD High-frequency charger (85-265VAC / 45-65Hz, 1kw), Built-in and automatic
48V High-frequency charger (85-265VAC / 45-65Hz, 1kw), Built-in and automatic
48V Lithium 48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 2.4Kwh
48V HD High-frequency charger (85-265VAC / 45-65Hz, 1kw)
Body
48V LD All-steel unibody construction, Powder coating
48V All-steel unibody construction, Powder coating
48V Lithium All-steel unibody construction, Powder coating
48V HD All-steel unibody construction, Powder coating
Suspensions
48V LD Front dual leaf springs suspension, Rear dual leaf springs suspension
48V Front dual leaf springs suspension, Rear dual leaf springs suspension
48V Lithium Front dual leaf springs suspension, Rear dual leaf springs suspension
48V HD Front dual leaf springs suspension, Rear dual leaf springs suspension
Brakes
48V LD Rear wheel hydraulic drum brakes, Hand lever parking brake, Regenerative braking
48V Rear hydraulic drum brakes, Electromagnetic parking brake with manual hand release, Regenerative braking
48V Lithium Rear hydraulic drum brakes, Electromagnetic parking brake with manual hand release, Regenerative braking
48V HD Rear disc brakes, Electromagnetic parking brake with manual hand release, Regenerative braking
Wheels
48V LD 5.7x8 LRD pneumatic tires
48V 5.7x8 LRD pneumatic tires
48V Lithium 5.7x8 LRD pneumatic tires
48V HD 500x8 solid softy rubber wheels on split rims
Steering
48V LD Automotive steering wheel, Tilted steering column
48V Automotive steering wheel, Tilted steering column
48V Lithium Automotive steering wheel, Tilted steering column
48V HD Automotive steering wheel, Tilted steering column
Seats
48V LD Two bucket seats on slide adjusters
48V Two premium seats on slide adjusters
48V Lithium Two premium seats on slide adjusters
48V HD Two premium seats on slide adjusters
Lights
48V LD Dual LED headlights, Tail/brake lights, Dual back-up lights
48V Dual LED headlights, Tail/brake lights, Dual back-up lights
48V Lithium Dual LED headlights, Tail/brake lights, Dual back-up lights
48V HD Dual LED headlights, Tail/brake lights, Dual back-up lights
Indicators
48V LD Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability
48V Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability
48V Lithium Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability
48V HD Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability
Accessories
48V LD Console on steering column, Bolt-on front bumper, DC/DC converter, LED charge indicator
48V Console on steering column, Bolt-on front bumper, DC/DC converter, LED charge indicator
48V Lithium Console on steering column, Bolt-on front bumper, DC/DC converter, LED charge indicator
48V HD Console on steering column, Bolt-on front bumper, DC/DC converter, LED charge indicator
Safety
48V LD Deadman seat switch, Reverse alarm, Horn
48V Deadman seat switch, Reverse alarm, Horn
48V Lithium Deadman seat switch, Reverse alarm, Horn
48V HD Deadman seat switch, Reverse alarm, Horn
Height
48V LD 54"
48V 54"
48V Lithium 54"
48V HD 54"
Length
48V LD 126"
48V 126"
48V Lithium 126"
48V HD 126"
Width
48V LD 45"
48V 45"
48V Lithium 45"
48V HD 45"
Wheel Base
48V LD 56"
48V 56"
48V Lithium 56"
48V HD 56"
Deck Height
48V LD 31"
48V 31"
48V Lithium 31"
48V HD 31"
Deck Length
48V LD 76"
48V 76"
48V Lithium 76"
48V HD 76"
Deck Width
48V LD 45"
48V 45"
48V Lithium 45"
48V HD 45"
General Information
Part #MC-480-48V-HD
ManufacturerMotrec
Shipping Information
Schedule B8705900000
ECCNEAR99
Specifications
Deck Height31”
Deck Length76”
Deck Width45”
Ground Clearance6"
Height54"
Length126"
Max HP15
Weight With Batteries1,600 lbs
Weight Without Batteries1,100 lbs
Wheel Base56"
Width45"
