Nav-Aids ADA330-340-946 - Airbus A330/A340 Pitot Static Kit - RVSM

The Nav-Aids ADA330-340-946 is an air data accessories kit for all series of the Airbus A330 / A340 (RVSM).

The kit contains all the equipment required to test from the source the complete pitot and static air data system on the Airbus 330 & 340 aircraft, as well as the means of pre-testing all adaptors and hoses prior to being fitted to the aircraft.

Please note: This kit contains all the required adaptors for performing the pitot-static system test for Reduced Vertical Separation Minima (RVSM). This test requires the connection of all static test adaptors to static ports in each system (left and right fuselage). Please follow the A-330/340 Aircraft Maintenance Manual.

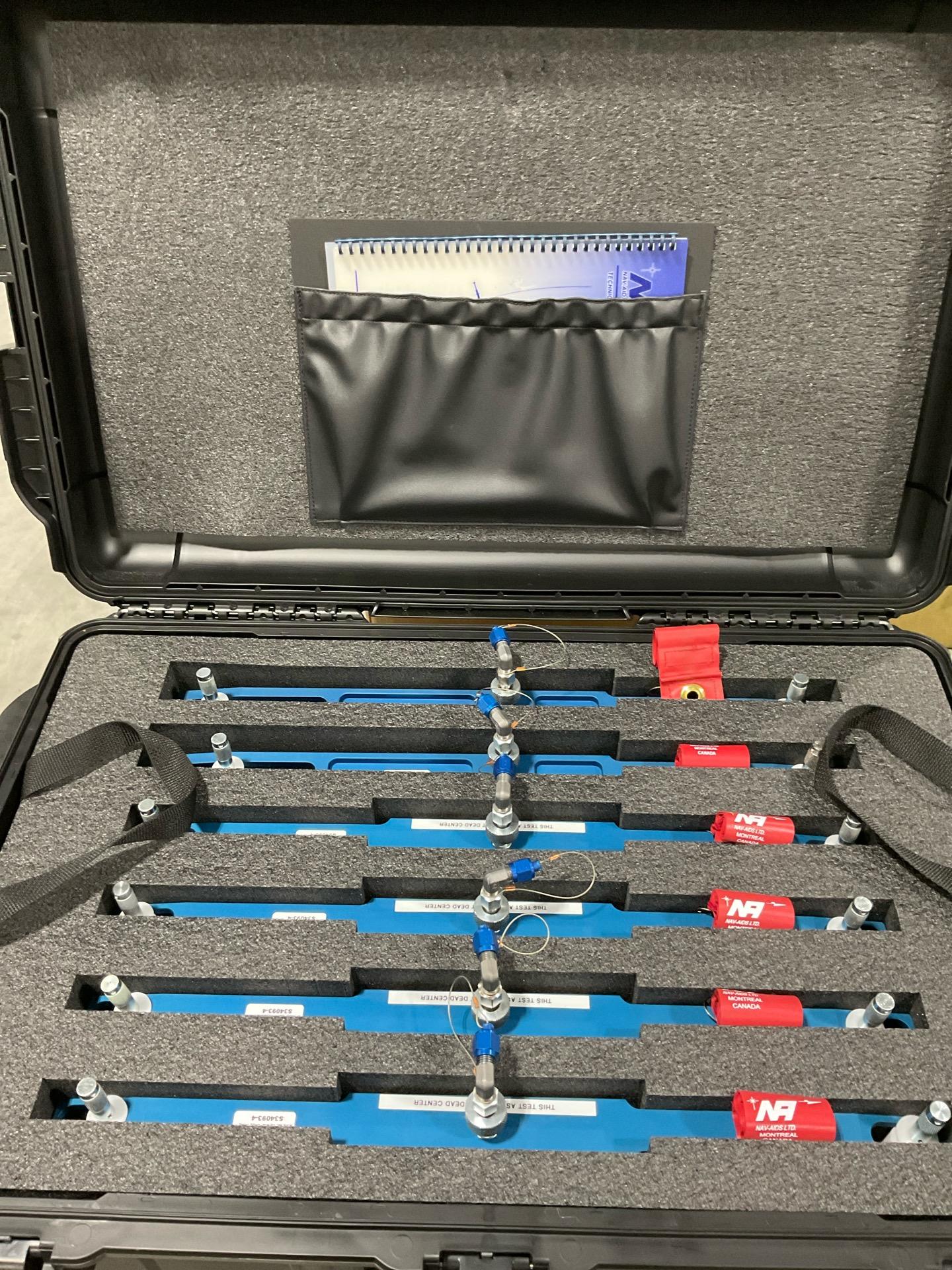

Included in this Kit

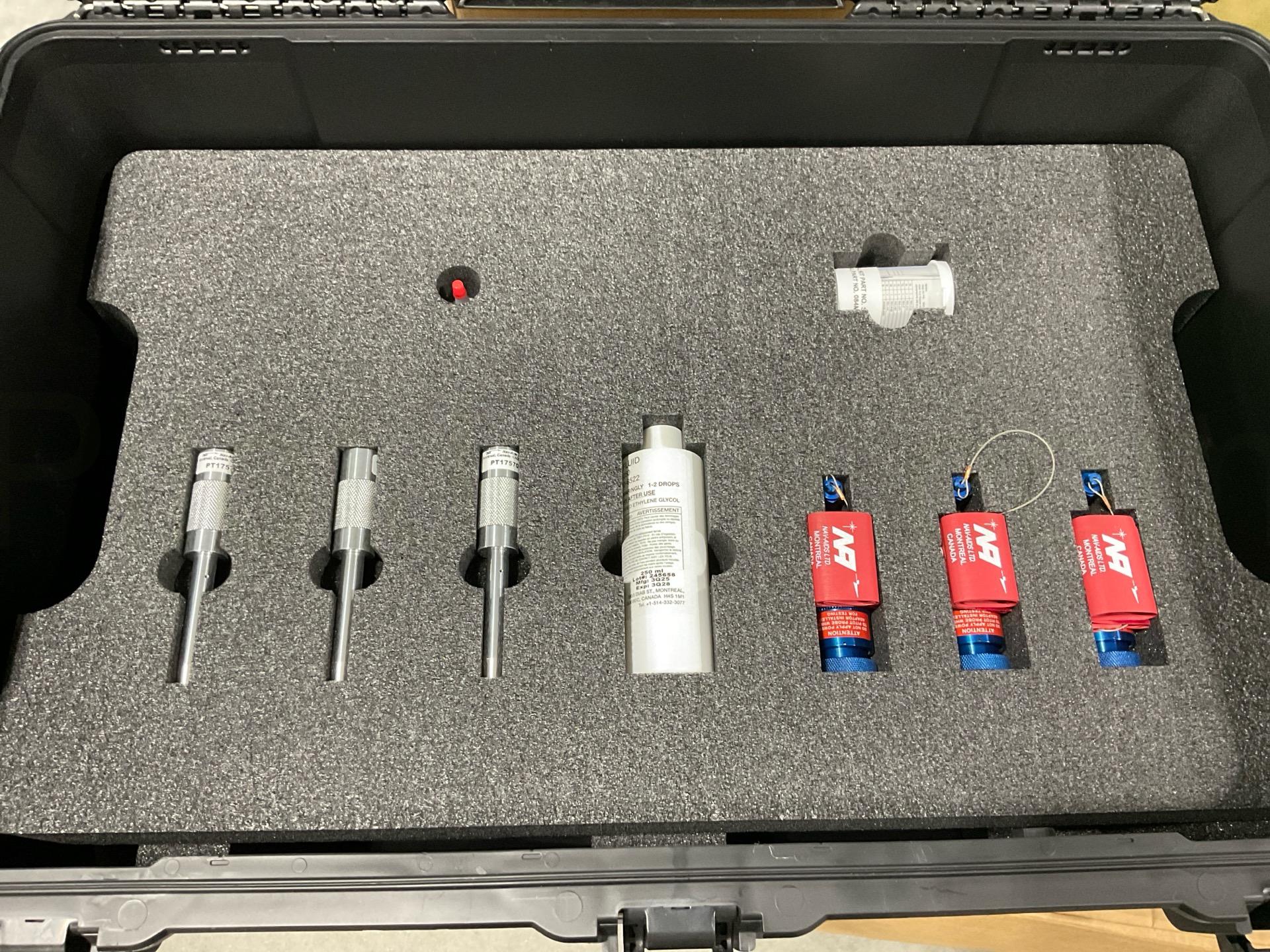

• Pitot Test Adaptor Part No. P75701-4 (3 req'd.)
• Pre-Test Adaptor Part No. PT17570 (3 req'd.)

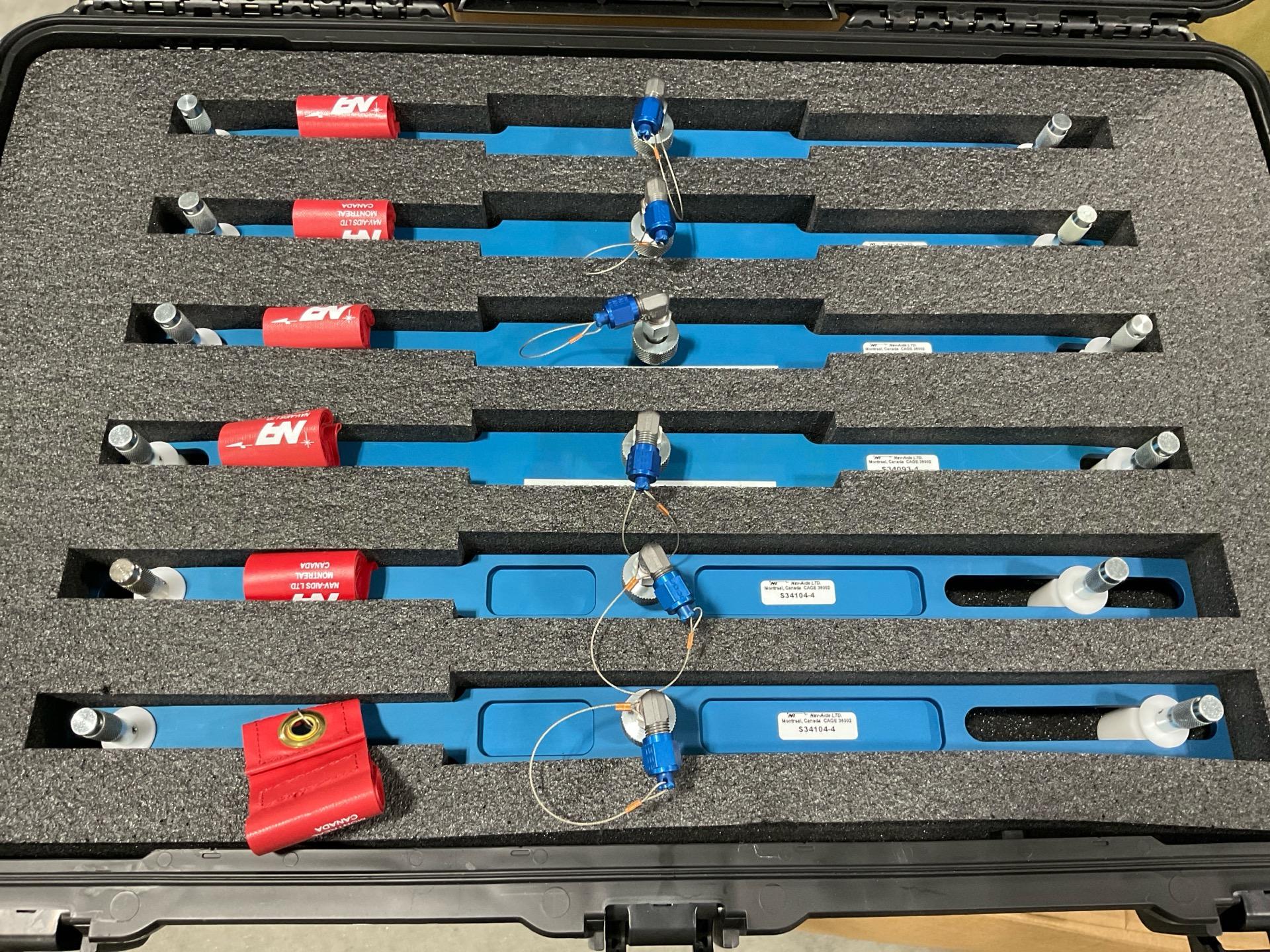

• Static Test Adaptor Part No. S34093-4 (4 req'd.)
• Stand-by Static Test Adaptor Part No. S34104-4 (2 req’d)

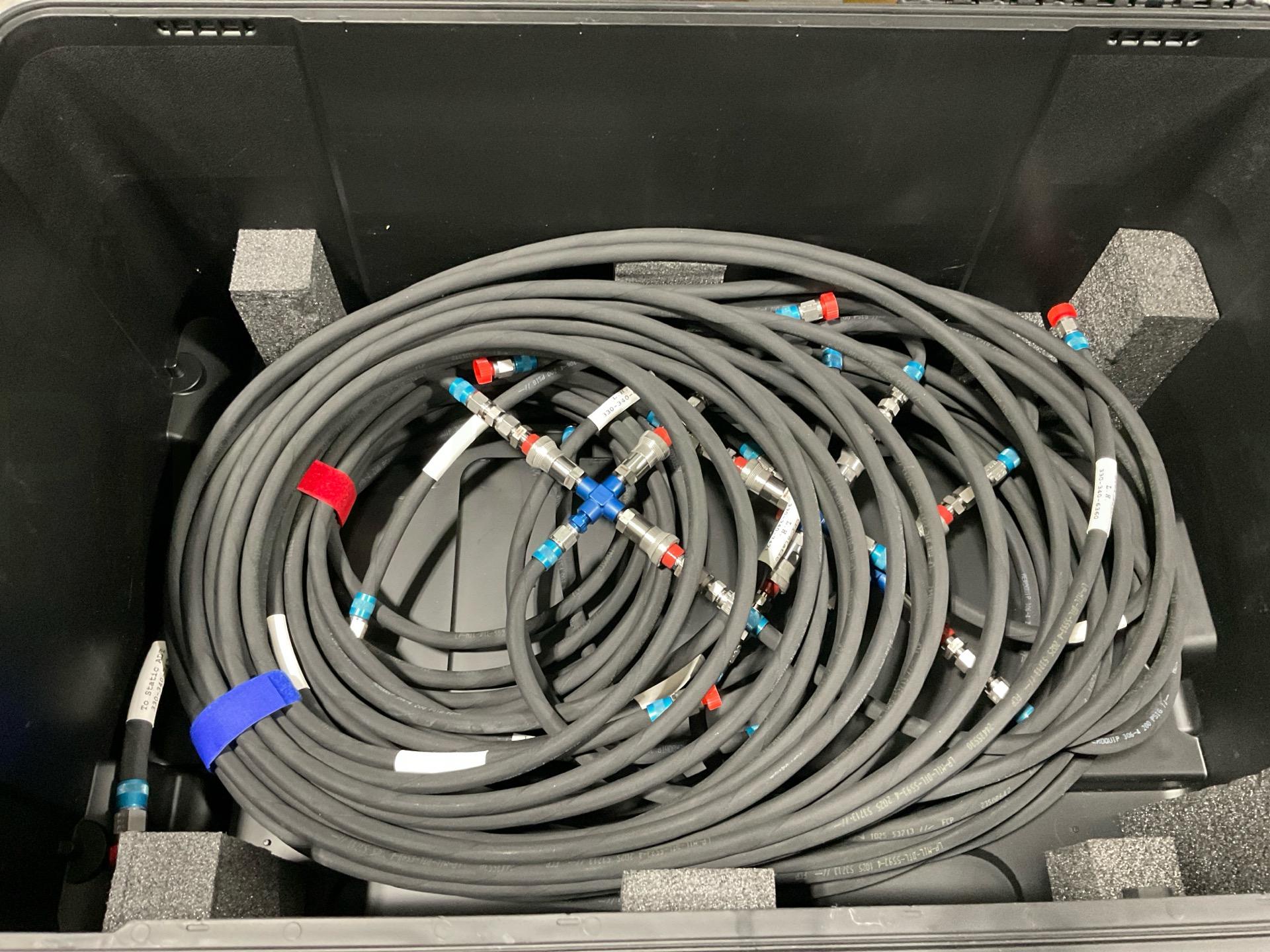

• Pitot Test Hose Assembly Part No. 330-340-6360 (1 req'd.)
• Static Test Hose Assembly Part No. 330-340-7471 (1 req'd.)
• Seal Kit - Part No. SK701
• Seal - Part No. 084M1-229
• Lubricating Fluid P/N LF5050 (1 req’d.)
• Manual Part No. 444-330-340-946
