Tronair AGE10600E - Ram Air Turbine Test Unit (RAT) - A318–A340 & 747-8 GPU

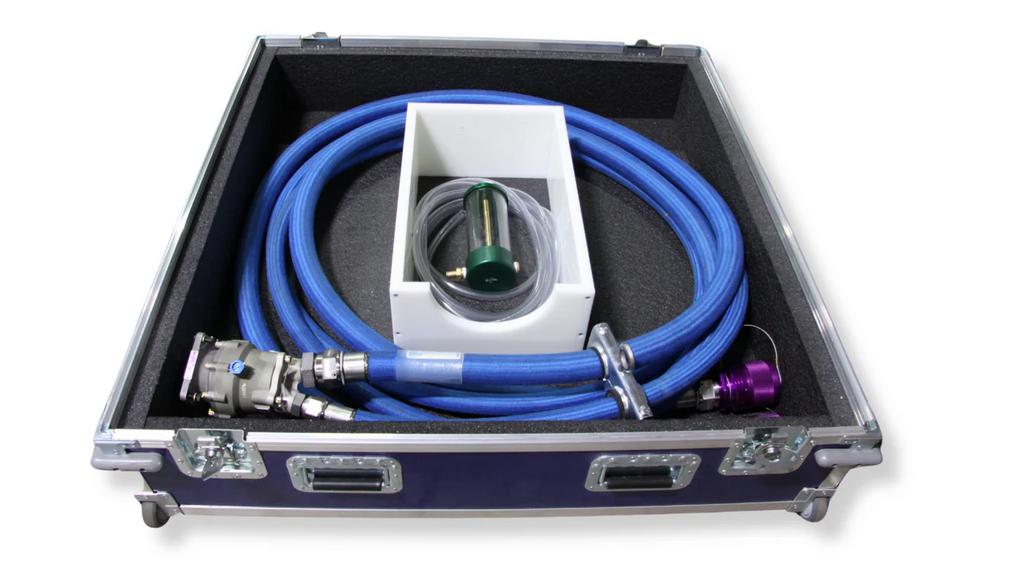

The Tronair AGE10600E Ground Test Tool (GTT) is powered by a suitable hydraulic cart, is used to back-drive the Ram Air Turbine (RAT) during ground check out.

This ground check motor is essential for performing functional tests on the Ram Air Turbine (RAT). Equipped with a built-in drain, it safeguards aircraft components from potential damage caused by seal failure. This unit eliminates the need for a separate special adapter, offering added convenience and cost savings. Additionally, the AGE10600E model is proudly Airbus and Collins approved, ensuring top-tier reliability and compliance with industry standards.

Standard Features:

• The RAT Test Tool, powered by a suitable hydraulic cart, is used to back drive the RAT during ground testing
• The hydraulic motor provides power and speed capabilities consistent with the requirements of the ground test procedures
• 20 ft (6.1 m) long pressure supply and return hoses
• Heavy duty case - may be used for easy shipping and storage
• Includes a splined shaft, developed in partnership with Collins, ensuring precise fit and reliable operation
• Hook assembly for secure hose support along the fuselage
• Splash Shield for improved leakage protection for the motor
• Includes a clear fluid drain hose and container for added protection in the event a shaft seal leakage occurs
• The AGE10600E supercedes the PN AGE10600D

Standard Features:

• A hydraulic motor designed to meet ground checkout requirements, while maintaining a weight and size safely supported by the RAT
• Includes a splined shaft, developed in partnership with Collins, ensuring precise fit and reliable operation
• Equipped with 20-foot supply and return hoses featuring Aeroquip couplings for seamless connection to the recommended HPU
• Hook assembly for secure hose support along the fuselage
• Splash Shield for improved leakage protection for the motor
• Includes a clear fluid drain hose and container for added protection in the event a shaft seal leakage occurs
• Packaged in a durable heavy-duty case, offering easy and safe shipping and storage

Specifications:

• Maximum Operating Pressure - 3100 psi (214 bar)
• Fluid Type - Aviation Phosphate Ester, Type IV (Skydrol or Hyjet)
• Fluid Consumption - 37 gpm (140 lpm)
• Hose, Pressure - 20 ft (6.10 m)
• Hose, Return - 20 ft (6.10 m)
• Custom-designed adaptor plate and splined shaft developed in conjunction with Hamilton
• Sundstrand for proper fit and operation
• Storage Case

Recommended Spares:

• Pressure Hose - TF-1117-18*240
• Pressure Quick Disconnect Coupling (to HPU) - N-2657
• Return Hose - TF-1117-18*240
• Return Quick Disconnect Coupling (to HPU) - N-2656
• Storage Case - H-3768

Mating Couplings and Plugs:

• Couplings - Inlet: Tronair # N-2479 Outlet: Tronair # N-2480
• Plugs - Inlet: Tronair # N-2474-04 Outlet: Tronair # N-2474-05
• Ref: KHC-1468 Coupling Ki
