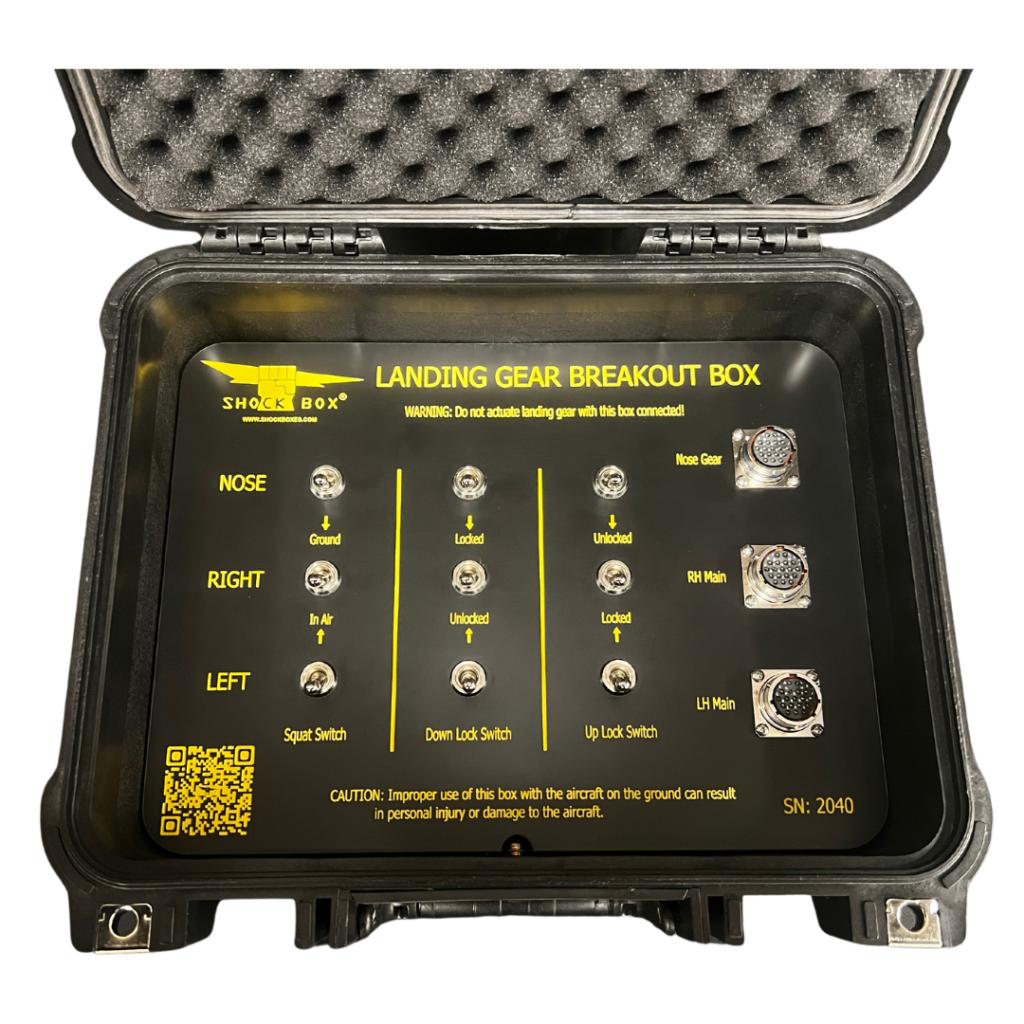

Shockbox SB32-00-LGBOB - Landing Gear Breakout Box

The ShockBox Landing Gear Breakout Box is a universal test platform that, when paired with an aircraft-specific harness, lets technicians access and troubleshoot landing gear electrical circuits without disconnecting or damaging wiring harnesses. It enables direct interfacing with limit switches, squat switches, uplocks, downlocks, and related control circuits from the cockpit and gear bay areas. This tool is especially useful for verifying wiring continuity, sequence logic, and rigging adjustments under controlled conditions. Its design simplifies complex diagnostic work that would otherwise require improvised wiring or extensive disassembly.

Unlike aircraft-specific test boxes that work only on a single model, the Landing Gear Breakout Box's universal base design allows a single test box to work across multiple airframes by swapping harnesses tailored to each aircraft. This flexibility helps shops support a broader range of aircraft without having to purchase multiple dedicated test boxes for each type. It also reduces storage and investment costs while maintaining diagnostic capability for diverse customer fleets. As aircraft models change or are added to a shop’s workload, technicians can simply acquire new harnesses rather than whole new test solutions.

Aircraft-specific harnesses are critical because they connect the universal ShockBox unit to an aircraft’s landing gear wiring system using the correct pinouts and connectors. Without the correct harness, the breakout box cannot interface safely or accurately with the gear’s control and indication circuits. These harnesses are built to match the aircraft’s landing gear schematics, making it easier to test limit switches, sensors, and actuators in accordance with maintenance manual procedures. This targeted connection significantly improves diagnostic accuracy and reduces the risk of miswiring during maintenance checks.

The breakout box provides secure access points to engage and disengage components such as squat switches and uplock/downlock logic while the aircraft is supported on jacks, as outlined in the maintenance procedures. This makes rigging adjustments more precise because technicians can observe real-time electrical behavior as they fine-tune mechanical linkages. It also avoids the need to repeatedly disconnect components or make temporary wiring changes, which can introduce errors or wear. By mirroring test procedures found in the aircraft maintenance manuals, the breakout box helps ensure rigging compliance and functional verification before returning an aircraft to service.

With traditional troubleshooting, components might be removed and sent to external facilities for testing, which prolongs downtime and requires extra shipping and handling. The ShockBox breakout box lets maintenance teams perform diagnostics and circuit verification on-site and on-aircraft, enabling faster fault isolation and resolution. This in-house capability can significantly cut turnaround times, particularly when resolving intermittent electrical issues or verifying gear system sequencers prior to flight. Reducing unnecessary disassembly and external shipping keeps aircraft in operational condition more consistently.

The breakout box is effective for isolating a range of landing gear problems, including faulty limit switches, improper uplock/downlock sequencing, sensor wiring faults, and irregular indication signals. By providing labeled access to each circuit pathway, technicians can systematically test continuity, voltage levels, and signal responses without guesswork or repeated trial-and-error. This precision is especially helpful for intermittent faults that may not be evident during cursory visual inspections. Using the breakout box, technicians can track down electrical discrepancies that could otherwise lead to mis-indications or unsafe gear deployment.

Yes. While the ShockBox unit itself is universal, it requires the correct aircraft-specific harness to interface with landing gear systems on a given model. PJi offers a wide range of ShockBox harnesses for various aircraft families, enabling the same base unit to serve multiple applications. This means shops can expand diagnostic support to additional aircraft without buying separate test equipment for each new type. Because harnesses are tailored to individual make/model wiring layouts, compatibility and connection accuracy are maintained across different gear system configurations.

Probing wiring directly during landing gear troubleshooting can risk damage to insulation, connectors, or sensitive components and may introduce short circuits or false readings. The landing gear breakout box offers clearly labeled access points that reduce the need for intrusive probing, lowering the risk of unintentional damage. It also helps maintain the integrity of harnesses and connections, which preserves the long-term reliability of gear systems. By standardizing the testing interface, the breakout box enhances technician safety and supports repeatable diagnostic practices.

Because the breakout box interfaces with specific circuits and switches, technicians can document each test’s results more systematically. Recorded results can be tied to maintenance actions, wiring diagrams, and procedural steps outlined in the aircraft maintenance manual, supporting traceable compliance records. This is valuable for audit trails, quality assurance programs, and regulatory sign-offs. Well-organized test documentation helps reduce ambiguity in future inspections or when evaluating recurring issues.

Although designed primarily for landing gear diagnostics on aircraft, the ShockBox Landing Gear Breakout Box can be applicable in other environments with similar electrically controlled or electro-hydraulic actuator systems, provided the proper harnesses are developed. This makes it a flexible diagnostic tool for workshops that also service unconventional airframes or specialized industrial machines with landing-gear-like systems. However, using the breakout box outside aviation requires careful assessment of interface compatibility and safety standards. Its adaptability extends its usefulness beyond typical MRO environments.
