Shockbox TK1763-5/935SB - Hydraulic Main Landing Gear Test Box King Air

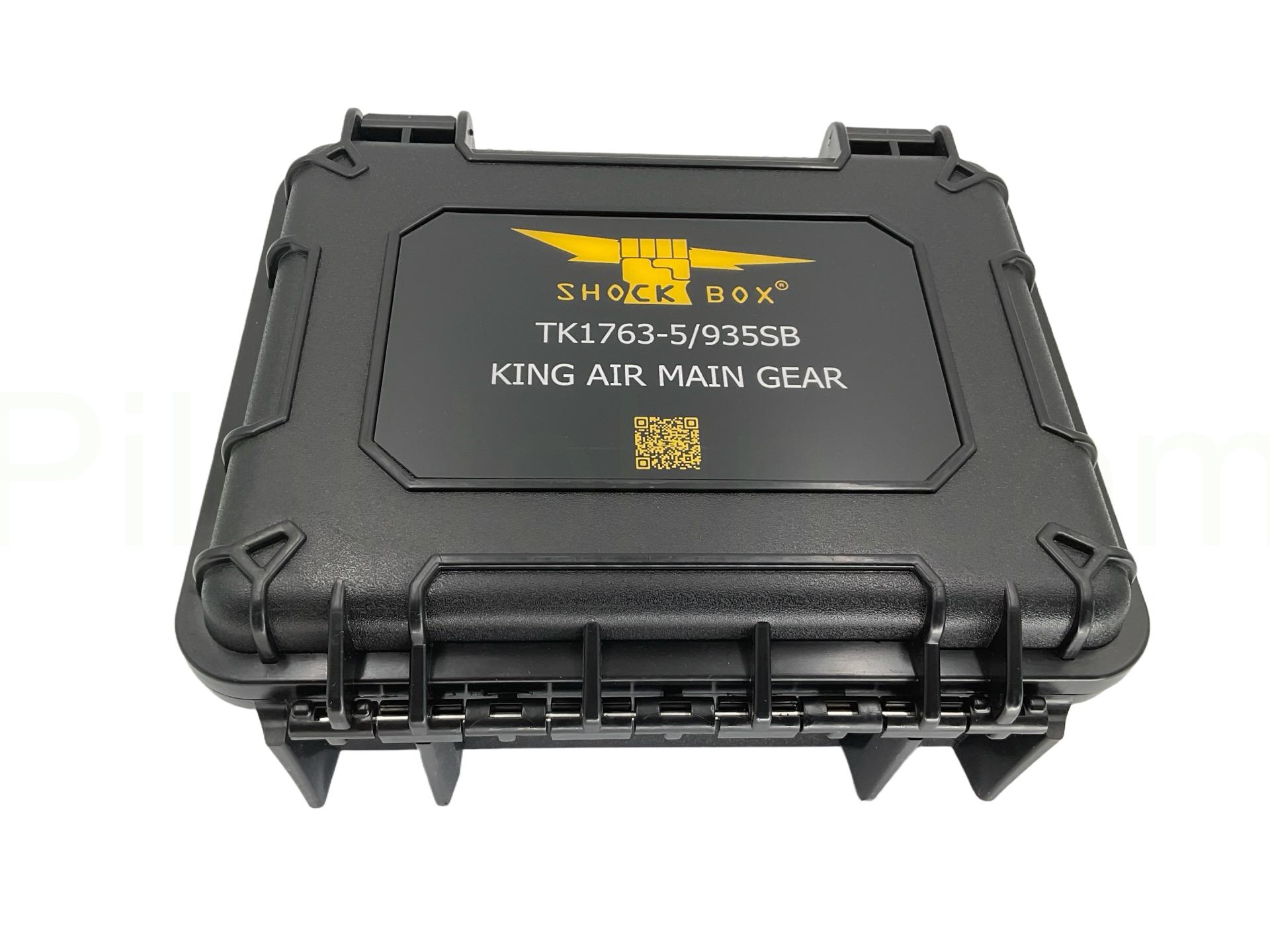

The ShockBox King Air Main Landing Gear Test Box is a specialized diagnostic tool designed to help technicians rig and verify main landing gear actuator limit switches on Beechcraft King Air aircraft with factory-installed hydraulically controlled gear, starting with C90GT models and later. Built directly from the King Air maintenance manual and designed to meet or exceed the Textron TK1763-5/935 schematic, the unit provides maintenance teams with structured access without guesswork or improvised test setups. Using this test box simplifies what would otherwise be a time-intensive, error-prone procedure by providing clear interface points for critical circuits. It supports accurate sequencing and indication verification, aligning with OEM-recommended workflows.

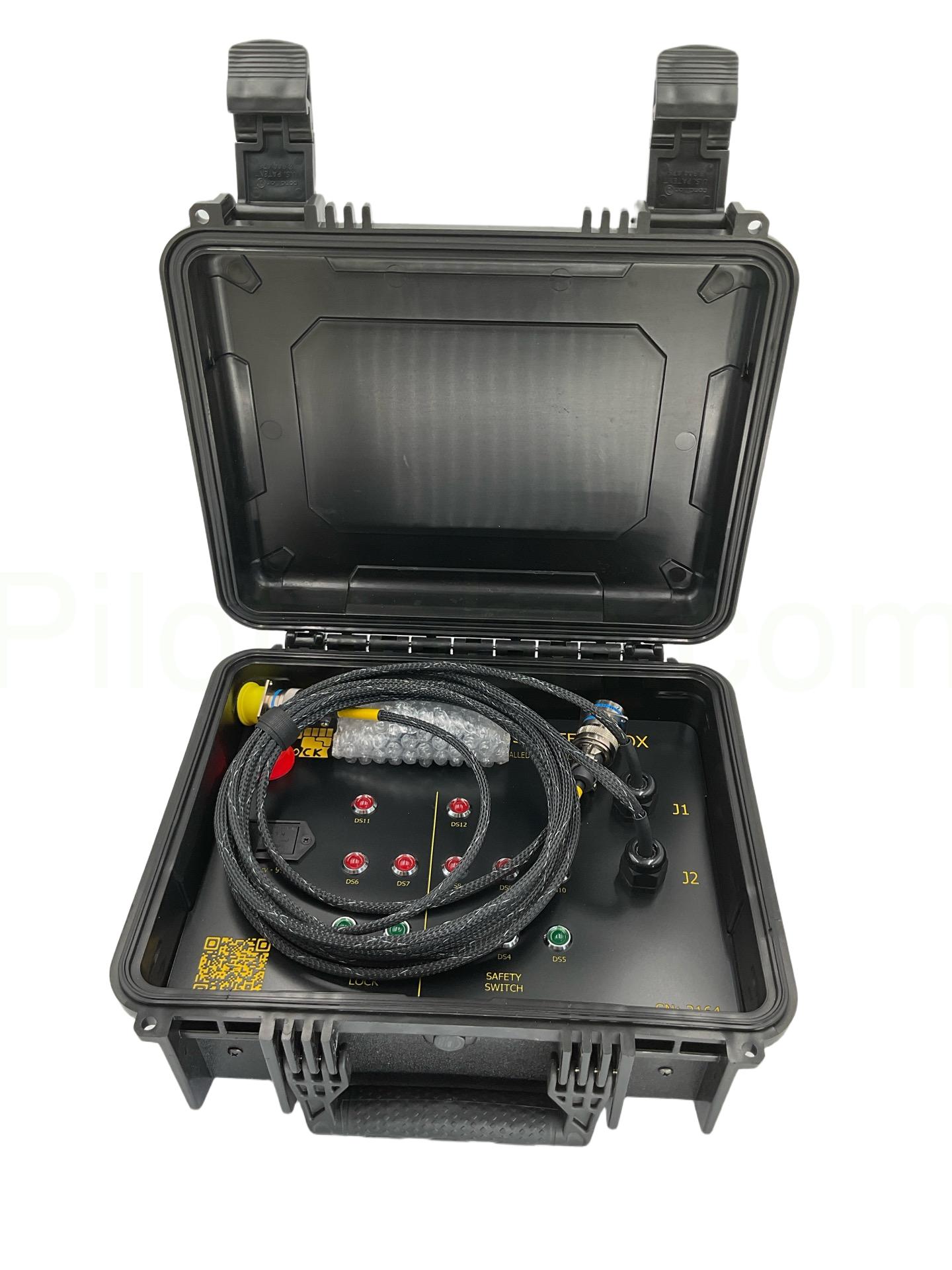

Technicians can use the main landing gear test box to isolate and test down lock and uplock limit switches, solenoid activations, and related circuits without disassembling the system for manual probing. This reduces the risk of connector damage or misinterpretation of wiring behavior that can occur with traditional troubleshooting. By giving direct access to electrical pathways, the test box helps quickly identify faulty sensors, switches, or wiring issues that could lead to unsafe indications or operation errors. Faster diagnostics mean less aircraft downtime and increased maintenance throughput.

Maintenance professionals in FBOs, MRO facilities, charter operations, and repair stations that support King Air fleets benefit most, especially where main gear limit switch rigging or recurring gear-related faults occur. Because it supports King Air models with hydraulically actuated gear, it is particularly valuable for shops that service C90GT and later variants. Smaller shops also find value in localized troubleshooting without outsourcing complex rigging verification to OEMs or larger facilities. The test box’s rugged design and intuitive access points help technicians of varied experience levels perform precise work.

Including the main landing gear test box in scheduled inspections helps catch limit switch drift, continuity problems, or misrigged components before they lead to in-service faults. Routine checks using this tool align with maintenance manual rigging intervals, giving technicians a proactive way to verify gear circuit integrity. Early detection can reduce the likelihood of gear indication discrepancies or sequence failures during critical flight phases. This enhances overall fleet reliability while supporting more predictable maintenance planning.

Limit-switch rigging determines when the landing gear position sensors correctly report “up,” “down,” or “in transition,” which is critical for both cockpit indication accuracy and safe gear operation. Misadjusted switches can cause false warnings, prevent proper retraction or extension, and trigger unnecessary maintenance events. Using the ShockBox test box ensures that switches are rigged to exact thresholds specified in the King Air maintenance documentation, improving both safety and system reliability. It also supports confidence in test results that flight crews depend on for their preflight confirmations.

Probing landing gear harnesses directly during troubleshooting can damage insulation, connector pins, or sensor terminals, leading to additional repairs or future faults. The ShockBox test box eliminates the need for intrusive probing by providing dedicated access points for test leads and measurement devices. This protects delicate wiring and reduces the chance of introducing shorts, misreads, or accidental disconnects during troubleshooting. By safeguarding aircraft wiring, the tool helps maintain system integrity and long-term reliability.

The TK1763-5/935SB is engineered specifically for Beechcraft King Air aircraft with hydraulically actuated main landing gear, starting with models like the C90GT and later. Because ShockBox designs its test boxes to match the maintenance manual and OEM schematic exactly, technicians should verify compatibility with their specific King Air variant before use. While the test box excels for its intended range, other models or earlier gear systems may require a different ShockBox unit tailored to that configuration. Always consult aircraft maintenance documentation for correct alignment.

Maintenance on landing gear systems often involves working near heavy mechanical components, hydraulic pressure circuits, and high-load actuators. The ShockBox test box allows technicians to perform electrical diagnostics on the ground or on jacks, minimizing the need to interact with live mechanical systems during initial troubleshooting. By offering isolated access points and minimizing live system exposure, it reduces physical risk and supports safer maintenance workflows. This electrical-first approach also helps protect technicians from unexpected gear movement or pressure hazards.

When used as part of a structured diagnostic procedure, the test box enables technicians to record specific test outcomes tied to landing gear switch positions, continuity checks, and electrical responses. These results can be logged alongside maintenance actions in work orders or aircraft records, providing traceable evidence of proper rigging and verification in accordance with OEM standards. Such documentation is valuable during audits, inspections, or regulatory compliance reviews, helping demonstrate that maintenance followed approved procedures and used the correct test interfaces.

Although it is specifically designed for the King Air main landing gear rigging and limit switch testing, some shops find it useful for educational or reference purposes when training technicians on landing gear systems or hydraulic-electrical interaction. The structured testing interface can help explain complex circuits and sequence behavior during coursework or internal workshops. However, because its connectors and test points are tailored to the landing gear system, it is not generally intended as a universal diagnostic tool for unrelated systems without adapters or harnesses.
