Start Pac 2326QC-SuperPac 26V Aircraft Ground Power Unit / 50 Amp Power Supply

Start Pac 2326QC-SuperPac
Start Pac 2326QC-SuperPac
Manufacturer: Start Pac
Part Number: 2326QC-SuperPac
Condition: New
✓ Worldwide shipping options available
✓ Manufacturer CofC always available at no cost after shipping
✓ Operating manuals available online for purchased equipment
Get Price & Order Now (it's quick & instant!)

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
28V DC - Twin Pack - Starting Unit
28V DC - Lead Acid - Portable Starting Unit
28V - 105 Amp
28.5V DC Starting Unit
Towable - 28V DC Deutz Tier 4i Diesel - 800 / 2000 amps

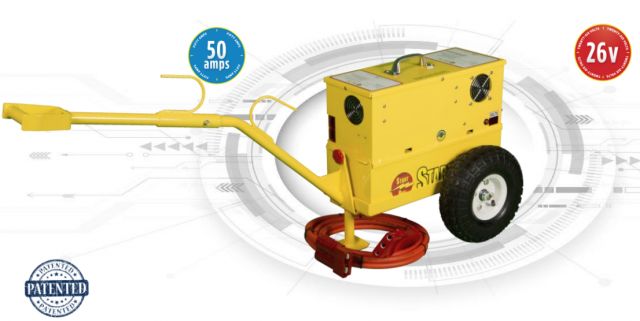

The Start Pac 2326QC-Superpac 26V Micro GPU will provide superior starts on all aircraft including voltage sensitive electricallystarted turbine engines that cannot accept a true 28V battery pack, such as the Eclipse 500, Phenom 100, Phenom 300, Agusta AW 139, Agusta AW109, and Sikorsky S-76, as well as 50A continuous power for powering up aircraft systems.

This very compact and powerful START PAC utilizes our proprietary Quick Change technology (removeable batteries that can be changed in less than one minute), combined with a lightweight 50 amp power supply. It allows for excellent engine starts, as well as 28.5V clean unlimited continuous, no duty cycle power when connected to the AC mains, for powering up 24V aircraft systems. It will provide a faster and cooler engine start.

QC Trolley Included as Standard

These units come standard with the QC trolley. Still portable they can be used at home base and in the field and are an ideal alternative to larger traditional GPUs.

Features

  • Compact and lightweight
  • Air portable/carry on START PAC® for whenever power is needed
  • No duty cycle, clean continuous power
  • Complete all-in-one unit is supplied with built-in universal smart float charger for fast recharge, trolley, power plug and 7ft/2.1m aircraft cables
  • Integrated LED charge indicator
  • Cold resistant, valve regulated high amperage output lead acid batteries
  • Powerful, sealed cells non-hazardous battery pack, can be used in any position.
  • Maintenance free.
  • Non toxic, non spillable and recyclable batteries
  • Resistant aluminum case with environment friendly, low VOC durable powder coat finish, easy to handle, built for heavy duty usage
  • Patented Quick Change design : less than one minute battery change for easy replacement
  • Integrated Voltmeter

Specifications

  • Battery type: Lead acid
  • Voltage: 26 VDC
  • Peak Current: 2300 A
  • Capacity: @10 Amp Rate 28 Ah
  • Charger: type Built in
  • Recharge time range: Between 1 and 4 hours
  • Maximum Continuous Current output: 50
  • DC voltage output: 28.5 VDC
  • AC voltage input: *Must be specified on order 110 VAC or 220 VAC*
  • AC current input at maximum DC power output: 14 A @110VAC, 7 A @220VAC
  • Phase: Single
  • Forced air-cooling: Yes
  • Over current protection: Yes
  • Over voltage protection: Yes
  • Over temperature protection: Yes
  • Complete Weight: 103lbs / 46.5kg

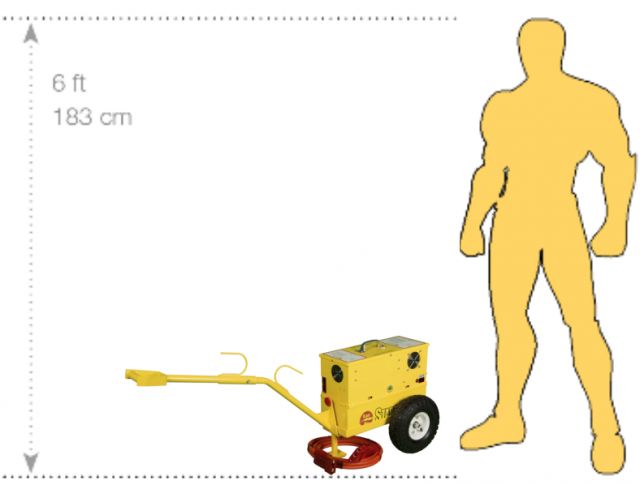

  • Dimensions: Length x Width x Height 19.2” x 7.5” x 14” 49 x 19 x 36 cm

King Air

Light duty engine starter and if you only ever want to power the avionics.

Compatible Aircraft*
AgustaA109A, A109C, A109E, A109S, AW139 (AB139)
Eclipse500
EmbraerPhenom 100, Phenom 300
Hawker BeechcraftKing Air
SikorskyS-76 (AUH-76)
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Parts

We sell parts for the 2326QC-SuperPac and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

A few of the common parts we offer for this item are:
• Aircraft Cable
• Input Power Cable
• Trolley
• Weather Covers
Renting

We provide short-term and long-term rentals for the 2326QC-SuperPac. We will ship the item directly to you and arrange for pickup at the end of your lease.
