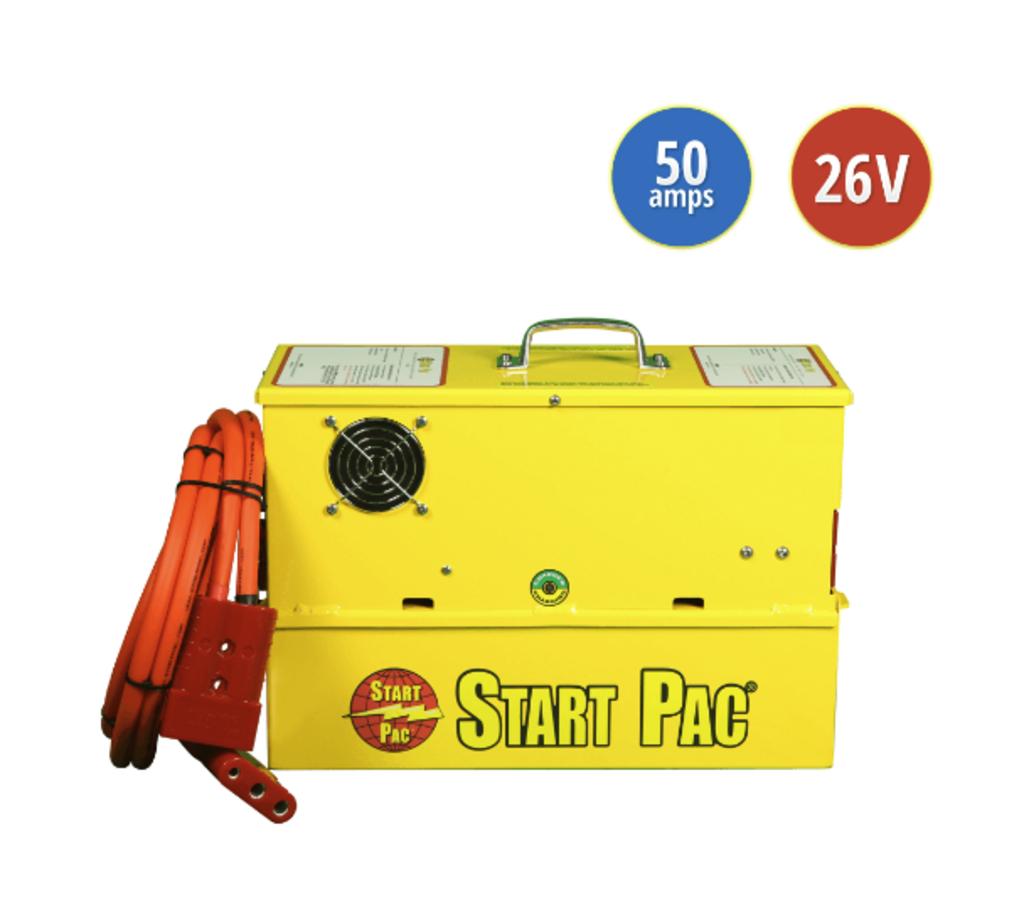

StartPac 2326QC-SuperPac-50 – Compact 26V & 28V Aircraft MICRO GPU™

The StartPac 2326QC-SuperPac-50 MICRO GPU^™ battery pack will provide superior starts on all aircraft, including voltage sensitive, electrically-started turbine engines that cannot accept a true 28V battery pack, such as the Eclipse 500, Phenom 100, Phenom 300, Agusta AW 139, Agusta AW109 and the Sikorsky S-76. It will also provide 50A continuous power for powering up aircraft systems.

Features

• Compact and lightweight
• Air portable/carry on START PAC® for whenever power is needed
• No duty cycle, clean continuous power

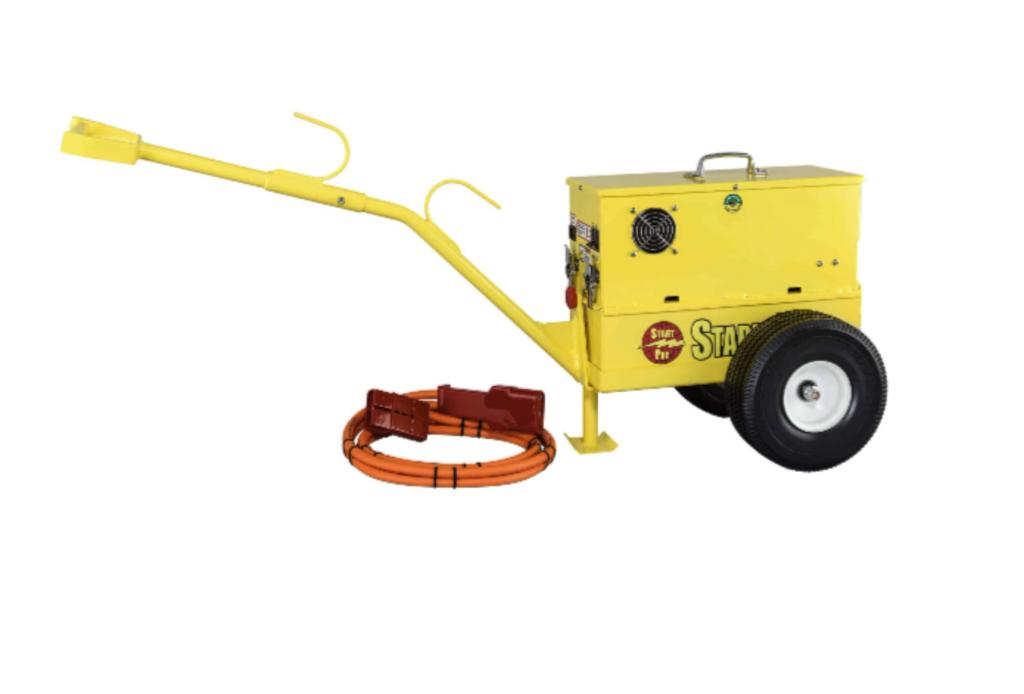

• Complete all-in-one unit is supplied with built-in universal smart float charger for fast recharge, trolley, power plug and 7ft/2.1m aircraft cables
• Integrated LED charge indicator
• Cold resistant, valve regulated high amperage output lead acid batteries
• Powerful, sealed cells non-hazardous battery pack, can be used in any position.
• Maintenance free.
• Non toxic, non spillable and recyclable batteries
• Resistant aluminum case with environment friendly, low VOC durable powder coat finish, easy to handle, built for heavy duty usage
• Patented Quick Change design : less than one minute battery change for easy replacement
• Integrated Voltmeter

Specifications

• Battery type: Lead acid
• Voltage: 26 VDC
• Peak Current: 2300 A
• Capacity: @10 Amp Rate 28 Ah
• Charger: type Built in
• Recharge time range: Between 1 and 4 hours
• Maximum Continuous Current output: 50
• DC voltage output: 28.5 VDC
• AC voltage input: *Must be specified on order 110 VAC or 220 VAC*
• AC current input at maximum DC power output: 14 A @110VAC, 7 A @220VAC
• Phase: Single
• Forced air-cooling: Yes
• Over current protection: Yes
• Over voltage protection: Yes
• Over temperature protection: Yes
• Complete Weight: 103lbs / 46.5kg

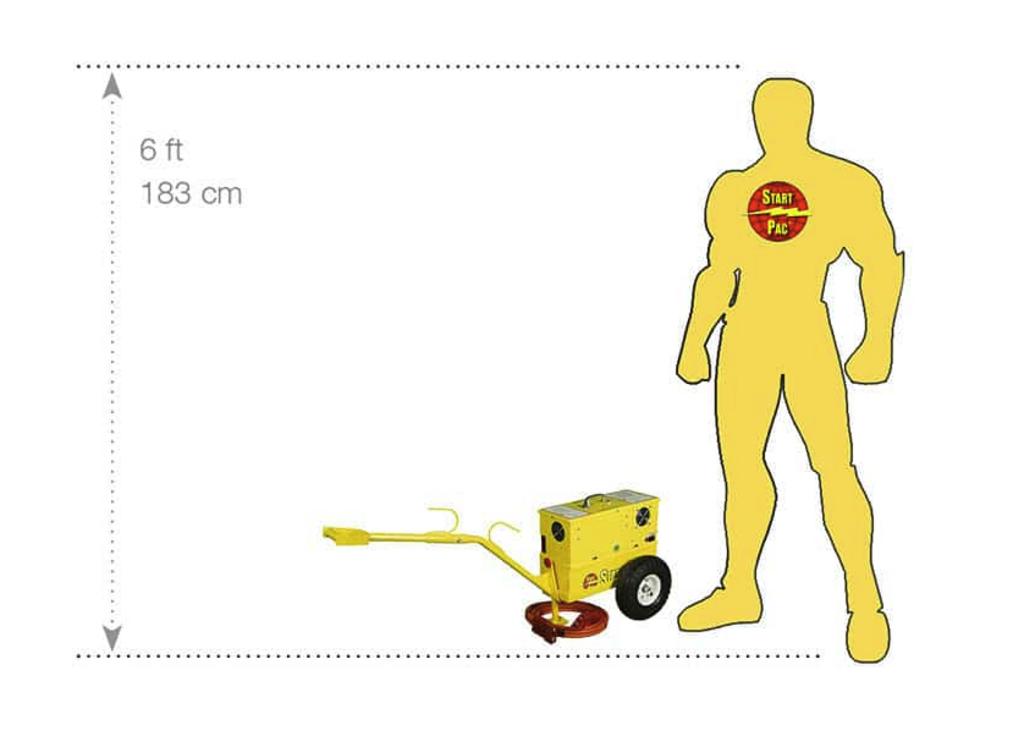

• Dimensions: Length x Width x Height 19.2” x 7.5” x 14” 49 x 19 x 36 cm
